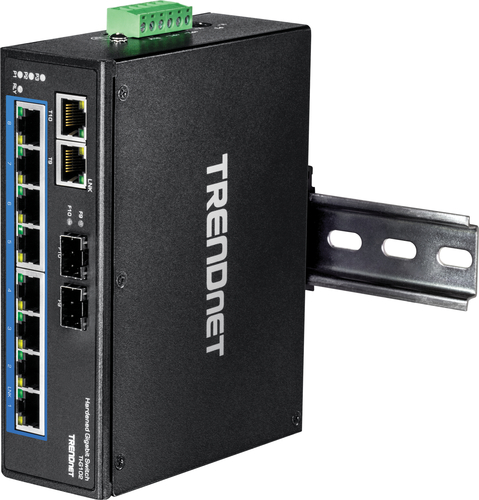

Trendnet TI-G102 network switch Gigabit Ethernet (10/100/1000) Black

TRENDnet’s 10-Port Hardened Industrial Gigabit DIN-Rail Switch, model TI-G102, has eight dedicated gigabit ports, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75°C (-40° – 167°F) for industrial environments.

Gigabit Speeds
Ten gigabit ports provide high-speed network connections to devices, and a 20 Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.

Tolerance
Features dual redundant power inputs with output alarm relay.

Design
Equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75°C (-40° – 167°F) for industrial environments.

ON ORDER

SKU: TI-G102

Manufacturer: Trendnet Trendnet

RRP Price €257.70

Specifications

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
10
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
2
Power connector
DC-in jack

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex
Yes
Auto-negotiation
Yes
MAC address auto-learning supported
Yes
MAC address auto-aging supported
Yes

Data transmission

Switching capacity
20 Gbit/s
Forwarding rate
14.8 Mpps
MAC address table
16000 entries
Store-and-forward
Yes

Design

Rack mounting
No
Product colour
Black
Housing material
Metal
LED indicators
Yes
International Protection (IP) code
IP30
Wall mountable
Yes
DIN rail mounting
Yes

Performance

Buffer size
2048 KB
Mean time between failures (MTBF)
510400 h

Power

Redundant power supply (RPS) support
Yes
DC input voltage
12 - 56 V
Input voltage
12/56 V
Power consumption (max)
5.76 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
0 - 95%

Weight & dimensions

Width
155 mm
Depth
120 mm
Height
48 mm
Weight
415 g

Packaging data

Wall mounting kit
Yes
Terminal block included
Yes

Certificates

Certification
CE, FCC

Logistics data

Harmonized System (HS) code
85176990
