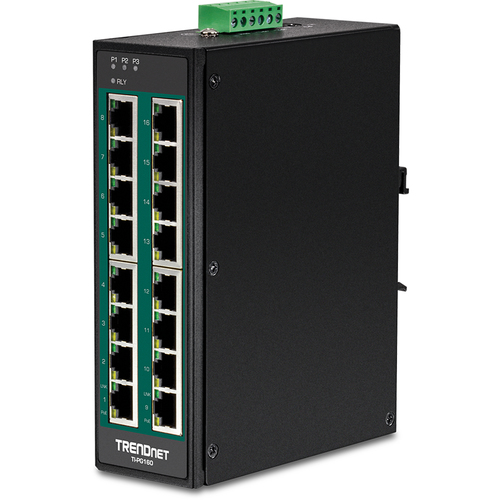

Trendnet TI-PG160 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Trendnet TI-PG160 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Name: Trendnet TI-PG160 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Brand: Trendnet
SKU: TI-PG160
Price: 413.72 EUR
Availability: OutOfStock

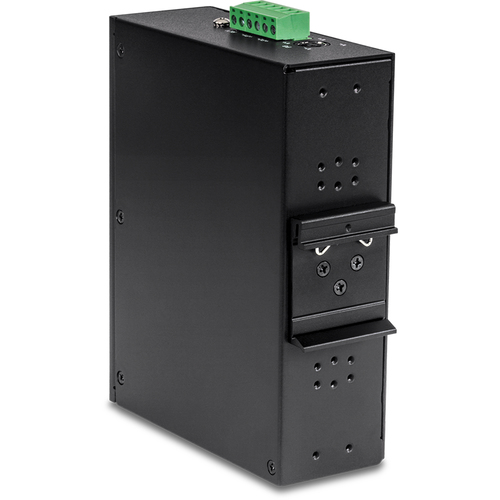

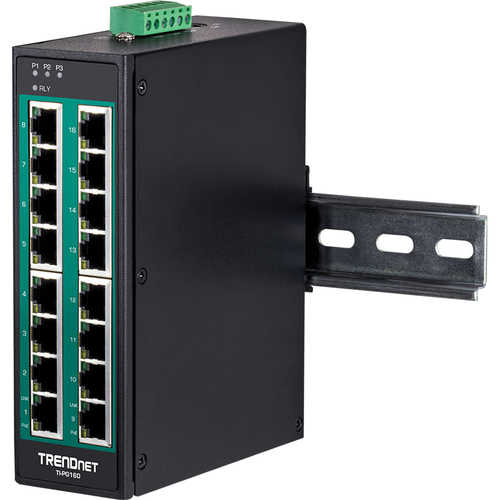

TRENDnet’s 16-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG160, has sixteen gigabit PoE+ ports with a 240W PoE power budget. Users are able to connect sixteen PoE+ devices to the industrial PoE switch, while still providing two gigabit ports for additional network connections. The industrial PoE switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.

ON ORDER

SKU: TI-PG160

Manufacturer: Trendnet

RRP Price €413.72

Specifications

Management features

Switch type

Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Network

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x

10G support

Full duplex

Yes

Data transmission

Switching capacity

32 Gbit/s

Forwarding rate

23.8 Mpps

MAC address table

8192 entries

Jumbo frames support

Yes

Jumbo frames

9216

Design

Rack mounting

Product colour

Black

Housing material

Metal

LED indicators

Yes

International Protection (IP) code

IP30

Wall mountable

Yes

DIN rail mounting

Yes

Performance

Mean time between failures (MTBF)

699103 h

Power

Redundant power supply (RPS) support

Yes

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

DC input voltage

48 - 56 V

Power consumption (max)

5.76 W

Power over Ethernet (PoE)

Yes

Power over Ethernet plus (PoE+) ports quantity

Total Power over Ethernet (PoE) budget

240 W

Operational conditions

Operating temperature (T-T)

-40 - 75 °C

Weight & dimensions

Width

155 mm

Depth

120 mm

Height

48 mm

Weight

500 g

Packaging content

Quick start guide

Yes

Certificates

Certification

CE, FCC, UL

Logistics data

Harmonized System (HS) code

85176990

Description

Manufacturer

Trendnet

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.5 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
