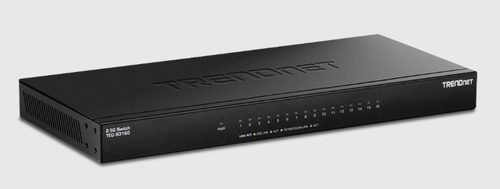

Trendnet TEG-S3160 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Desktop Black

Expand your network’s bandwidth and reduce digital bottlenecks with TRENDnet’s Unmanaged 2.5G Switches. These 2.5G network switches come equipped with 2.5GBASE-T RJ-45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. Each high-speed 2.5G switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates operating noise. The sturdy metal housing and included rackmount brackets are well-suited for wall mount or 19” 1U rack installations. TRENDnet’s reliable 2.5G switches are cost-effective solutions to increase your network’s throughput.

2.5G Ports

Equipped with 2.5GBASE-T RJ-45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

Wall Mountable

The 2.5G switch features a durable metal housing with a convenient wall mountable design for greater installation flexibility.

Fanless

The fanless design of this 16-port 2.5G switch lowers energy consumption costs and eliminates operating noise.

Easy Installation
No configuration needed, simply connect network devices to the 16-port multi-gig switch


2.5G Ports
This 16-port multi-gigabit switch is equipped with 2.5GBASE-T RJ-45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over existing Cat5e or better cabling

Switching Capacity

80Gbps switching capacity

Fanless

Fanless design on the 16-port 2.5G switch lowers energy consumption and eliminates operating noise

Housing Design

Sturdy desktop metal housing

Rear Facing Ports

Hide cable clutter with rear facing ports on your desktop or rack

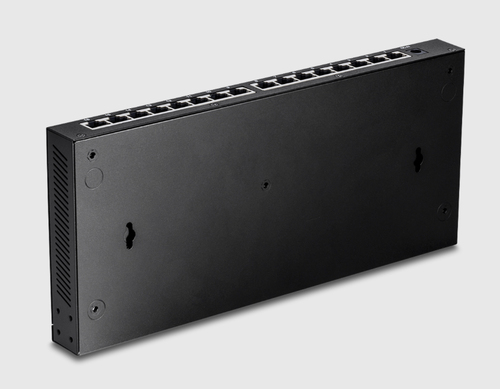

Wall Mountable

The 16-port 2.5G switch features a convenient wall mountable design for greater installation flexibility

19” Rackmount

Sturdy rack mountable metal housing with mounting kit included

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance

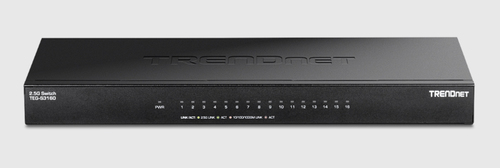

LED Indicators

LED indicators on this 16-port 2.5G switch conveniently convey port status

ON ORDER

SKU: TEG-S3160

Manufacturer: Trendnet Trendnet

RRP Price €284.78

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Cable types supported
Cat5e
Full duplex
Yes
Half duplex
Yes
Ethernet LAN data rates
100 Mbit/s

Data transmission

Switching capacity
80 Gbit/s
Forwarding rate
59.52 Mpps
MAC address table
16000 entries
Jumbo frames support
Yes
Jumbo frames
12
Packet buffer memory
1.5 MB

Design

Rack mounting
Yes
Form factor
Desktop
Product colour
Black
LED indicators
Yes
Redundant fans support
No
Wall mountable
Yes

Performance

Fanless
Yes
Mean time between failures (MTBF)
223000 h

Power

Power source
AC/DC
Power supply included
Yes
AC input voltage
90 - 264 V
AC input frequency
47/63 Hz
Output voltage
12 V
Output current
3 A
Power consumption (max)
7.26 W

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 90%

Weight & dimensions

Width
128 mm
Depth
286 mm
Height
27 mm
Weight
982 g

Packaging content

Quick start guide
Yes
Rack mount kit
Yes

Packaging data

AC adapter included
Yes

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), Trade Agreements Act (TAA)

Accessories

License
