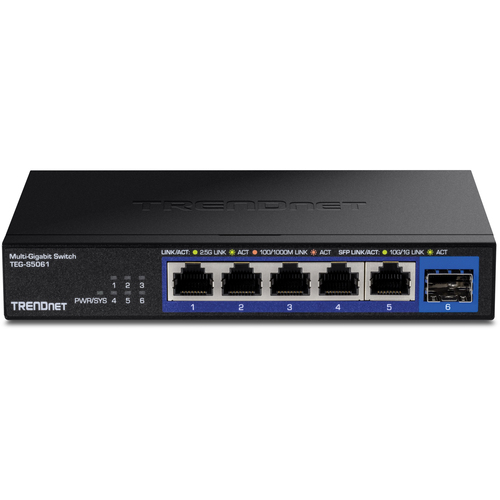

Trendnet TEG-S5061 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Black

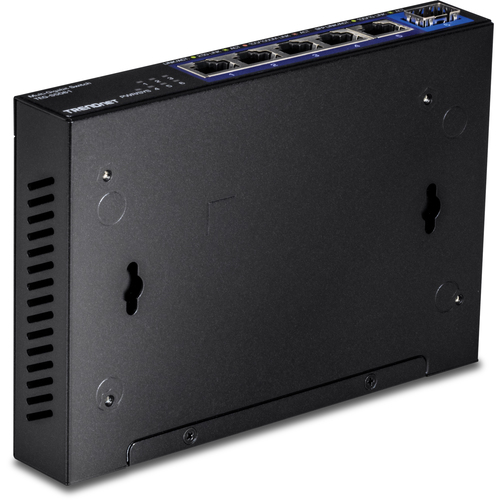

Expand your network’s bandwidth and reduce digital bottlenecks with TRENDnet’s 6-Port 2.5G Unmanaged Switch with 10G SFP+ Port. These multi-gig network switches come equipped with 2.5GBASE-T RJ-45 ports that provide speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling, and a 10G SFP+ port for long-distance fiber networking. Each multi-gig switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates operating noise. TRENDnet’s reliable switches are cost-effective solutions to increase your network’s throughput.

ON ORDER

SKU: TEG-S5061

Manufacturer: Trendnet Trendnet

RRP Price €70.64

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity
5
SFP+ module slots quantity
1

Network

Networking standards
IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
10G support
Yes
Full duplex
Yes

Data transmission

Switching capacity
45 Gbit/s
Forwarding rate
33.8 Mpps
MAC address table
4000 entries
Jumbo frames support
Yes
Jumbo frames
12000

Design

Product colour
Black
Wall mountable
Yes

Performance

Fanless
Yes
Mean time between failures (MTBF)
674176 h

Power

Power source
AC
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
DC input voltage
12 V
Input current
1 A
Power consumption (max)
9.5 W

Operational conditions

Operating temperature (T-T)
0 - 40 °C

Weight & dimensions

Width
160 mm
Depth
110 mm
Height
26 mm
Weight
414 g

Certificates

Certification
FCC CE

Accessories

License
