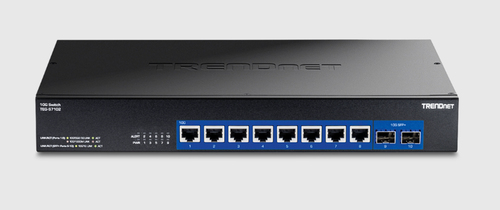

Trendnet TEG-S7102 network switch Unmanaged 10G Ethernet (100/1000/10000) Desktop Black

Expand your network’s bandwidth and reduce traffic bottlenecks with TRENDnet’s Unmanaged 10G Switches. This 10G switch comes equipped with eight 10GBASE-T RJ-45 ports that provide speeds capable of up to 10Gbps over your existing Cat6A or better cabling. The 10G switch also offers two dedicated 10G SFP+ slots for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. The smart fan design lowers energy consumption and eliminates distracting operating noise. TRENDnet’s reliable 10G switches are cost-effective solutions to increase your network’s throughput.

10G Ports

Offers eight 10G ports, and two 10G SFP+ ports for high-speed network uplinks or downlink connections for a cost-effective solution in adding 10G link capability.

Smart Fan

The smart fan design lowers power consumption and energy costs, and eliminates distracting operating noise.

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance.

Easy Installation

No configuration needed, simply connect network devices to the 10G switch

10G Ports

Equipped with 10GBASE-T RJ-45 ports that provide speeds capable of up to 10Gbps over existing Cat6A or better cabling

10G SFP+ Ports

The 10Gb switch features 10G SFP+ ports for high-speed network connections providing a cost-effective solution in adding 10G fiber link capability

Smart Fan

Smart fan design lowers energy consumption and eliminates distracting operating noise

Housing Design

Sturdy metal housing

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance

LED Indicators

LED indicators on this 10Gb switch conveys port status

ON ORDER

SKU: TEG-S7102

Manufacturer: Trendnet Trendnet

RRP Price €433.93

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
Installed SFP+ modules quantity
2
SFP+ module slots quantity
2
Fiber optic connector
RJ-45, SFP+
Power cables quantity
1

Network

Networking standards
IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u
10G support
Yes
Full duplex
Yes
Ethernet LAN data rates
2500 Mbit/s

Data transmission

Switching capacity
200 Gbit/s
Forwarding rate
148.8 Mpps
MAC address table
32000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
12
Packet buffer memory
2 MB

Design

Rack mounting
Yes
Form factor
Desktop
Product colour
Black
LED indicators
Yes
Redundant fans support
Yes
Wall mountable
Yes
Number of fans
1 fan(s)

Performance

Noise level
47 dB
Fanless
No
Mean time between failures (MTBF)
151765 h

Power

Power source
AC/DC
Power supply included
Yes
AC input voltage
90 - 264 V
AC input frequency
47/63 Hz
Power consumption (max)
40 W
Power cable length
1.5 m

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 90%

Weight & dimensions

Width
230 mm
Depth
330 mm
Height
44 mm
Weight
2.54 kg

Packaging content

Cables included
Power
Quick start guide
Yes
Rack mount kit
Yes

Packaging data

AC adapter included
Yes

Certificates

Compliance certificates
CE, ETL, Federal Communications Commission (FCC), Low Voltage Directive (LVD), National Defense Authorization Act (NDAA), Trade Agreements Act (TAA)
