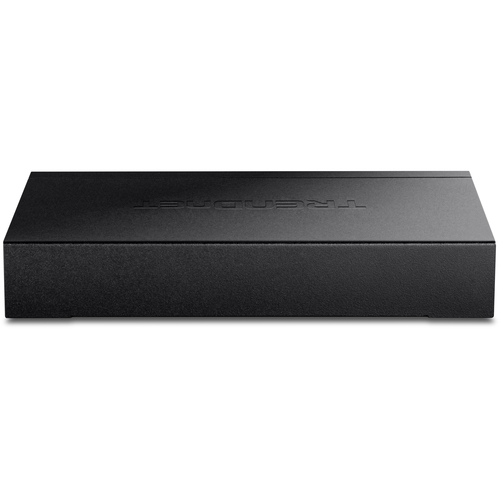

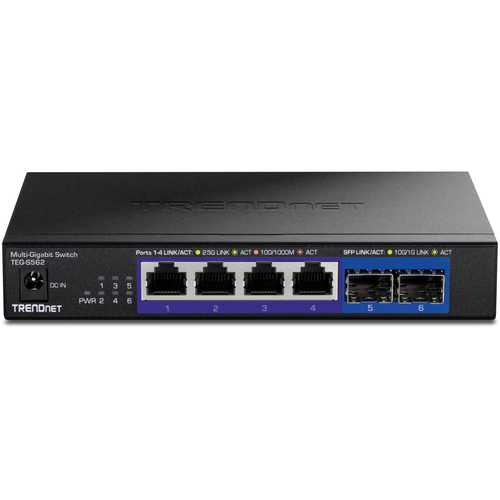

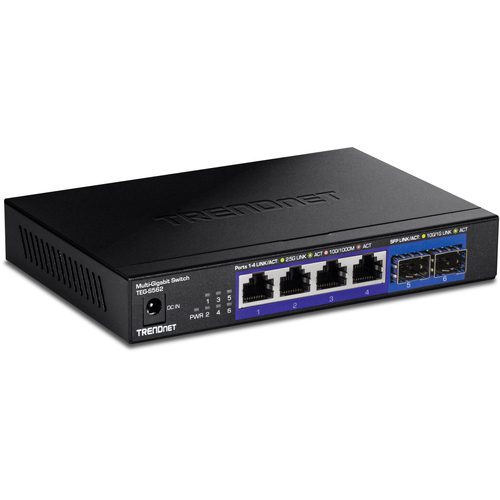

Trendnet TEG-S562 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Black

Trendnet TEG-S562 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Black

Name: Trendnet TEG-S562 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Black
Brand: Trendnet
SKU: TEG-S562
Price: 70.64 EUR
Availability: OutOfStock

Expand your network’s bandwidth and reduce traffic bottlenecks with TRENDnet’s Unmanaged Multi-Gigabit Switches. This 2.5G switch with SFP+ support comes equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. The 2.5G switch with 10G fiber also offers two dedicated 10G SFP+ ports for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. The fanless design lowers energy consumption and eliminates distracting operating noise. TRENDnet’s reliable multi-gigabit switches are cost-effective solutions to increase your network’s throughput.

ON ORDER

SKU: TEG-S562

Manufacturer: Trendnet

RRP Price €70.64

Specifications

Management features

Switch type

Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

2.5G Ethernet (100/1000/2500)

SFP+ module slots quantity

Network

Networking standards

IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3bz

10G support

Yes

Full duplex

Yes

Data transmission

Switching capacity

60 Gbit/s

Forwarding rate

44.64 Mpps

MAC address table

4000 entries

Store-and-forward

Yes

Jumbo frames support

Yes

Jumbo frames

12000

Packet buffer memory

1 MB

Design

Product colour

Black

LED indicators

Yes

Performance

Fanless

Yes

Power

Power source

AC/DC

AC input voltage

90 - 264 V

AC input frequency

47/63 Hz

Input current

1 A

Power consumption (max)

5.86 W

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Weight & dimensions

Width

160 mm

Depth

110 mm

Height

26 mm

Weight

400 g

Packaging content

Quick start guide

Yes

Certificates

Certification

CE FCC LVD

Description

Manufacturer

Trendnet

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.4 kg

Country of Origin

N/A

Datasheet

No Data Sheet Found!

Accessories

No Accessories Found!

License

No License Found!
