Trendnet TFC-110S60I network media converter 200 Mbit/s 1310 nm Single-mode

- SC-type single-mode fiber port connects over distances of up to 60km
- 10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode
- Supports port level SNMP management
- Functions as a stand alone converter or with the TFC-1600 fiber chassis

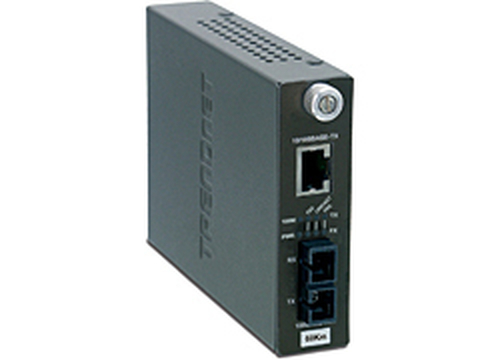

The TFC-110S60i Intelligent Fiber Converter works with the TFC-1600 chassis system or as standalone unit. This converter is a Single Mode SC-Type fiber converter that supports SNMP and spans distances up to 60km (37.3 miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (SC-Type).

ON ORDER

SKU: TFC-110S60I

Manufacturer: Trendnet Trendnet

RRP Price €94.92

Specifications

Network

Maximum data transfer rate
200 Mbit/s
Converter input interface
100Base-TX
Converter output interface
100Base-FX
Networking standards
IEEE 802.3, IEEE 802.3u
Ethernet interface type
Fast Ethernet
Ethernet LAN data rates
10,100 Mbit/s
Auto MDI/MDI-X
Yes
Duplex system
Full, Half

Performance

Maximum transfer distance
15000 m
Wavelength
1310 nm
Fiber mode structure
Single-mode

Features

Internal
No
LED indicators
Yes

Ports & interfaces

Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber optic connector
SC

Power

Power consumption (typical)
2 W
External power adapter
Yes

Weight & dimensions

Weight
354 g

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-25 - 70 °C

Certificates

Certification
FCC,CE

Logistics data

Harmonized System (HS) code
85176990

Other features

Dimensions (WxDxH)
120 x 88 x 25 mm
