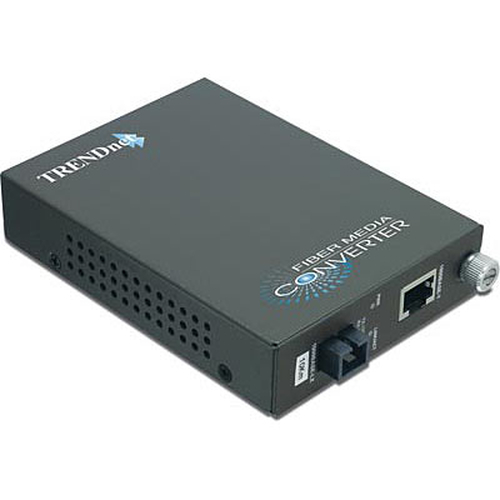

Trendnet TFC-1000S60D3 network media converter 2000 Mbit/s 1310 nm

The TFC-1000S60D3 Bi-Directional Intelligent Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Dual Wavelength Single Mode SC-Type fiber converter that supports port-based SNMP reporting and spans distances up to 60km. This module must be used with the TFC-1000S10D5 module. Ports include 1 x 1000Base-TX (RJ-45) port and 1 x 1000Base-LX (SC Simplex Type) port.

- Must use with TFC-1000S60D5
- SC-type dual-wavelength single-mode fiber port connects over distances of up to 60km
- 1000Base-T Gigabit copper port supports Full-Duplex mode
- Supports port level SNMP management
- Functions as a stand alone converter or with the TFC-1600 fiber chassis

ON ORDER

SKU: TFC-1000S60D3

Manufacturer: Trendnet Trendnet

RRP Price €732.16

Specifications

Network

Maximum data transfer rate
2000 Mbit/s
Cabling technology
1000Base-TX, 1000Base-FX

Performance

Maximum transfer distance
60000 m
Wavelength
1310 nm

Features

LED indicators
Power
Compliance industry standards
IEEE 802.3ab, IEEE 802.3z

Ports & interfaces

Connectivity technology
Wired

Power

Power consumption (typical)
5.5 W

Weight & dimensions

Weight
354 g

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-25 - 70 °C

Certificates

Certification
FCC, CE

Logistics data

Harmonized System (HS) code
85176990

Other features

Data link protocols
CSMA/CD
Dimensions (WxDxH)
120 x 88 x 25 mm
Connector(s)
SC
Full duplex
Yes
Fiber type
10/125 μm

Accessories

License
