Trendnet TI-BEP200 network extender Network transmitter & receiver Black 10, 100, 1000 Mbit/s

TRENDnet’s 2-Port Industrial Outdoor Gigabit PoE Extender, model TI-BEP200, takes a single PoE++ (90W) connection and extends it an additional 100 meters (328 ft.) for up to two PoE devices. It auto-detects a PoE (15.4W), PoE+ (30W), or PoE+ (60W) signal, and extends it for a total distance of up to 200 meters (656 ft.) from the PoE source. Daisy chain up to 4 units for a total PoE network extension of up to 500 meters (1,640 ft.). This outdoor PoE extender features a single PoE++ input port, and one PoE+ and one Passive PoE output ports.

ON ORDER

SKU: TI-BEP200

Manufacturer: Trendnet Trendnet

RRP Price €203.84

Specifications

Performance

Type
Network transmitter & receiver
Maximum transfer distance
200 m
Data transfer rate
2000 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Jumbo frames support
Yes
Duplex system
Full
MAC address table
2048 entries
Flow control support
Yes
International Protection (IP) code
IP67

Network

Cabling technology
10/100/1000Base-T(X)
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Ports & interfaces

Host interface
RJ-45
Ethernet LAN (RJ-45) ports
3

Design

Product colour
Black
LED indicators
Yes
Quantity per pack
1 pc(s)
Certification
FCC IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6

Power

Power consumption (max)
3.9 W
Total Power over Ethernet (PoE) budget
60 W

Operational conditions

Operating temperature (T-T)
-40 - 75 °C

Weight & dimensions

Width
167 mm
Depth
74 mm
Height
44 mm
Weight
266 g

Packaging content

Quick start guide
Yes

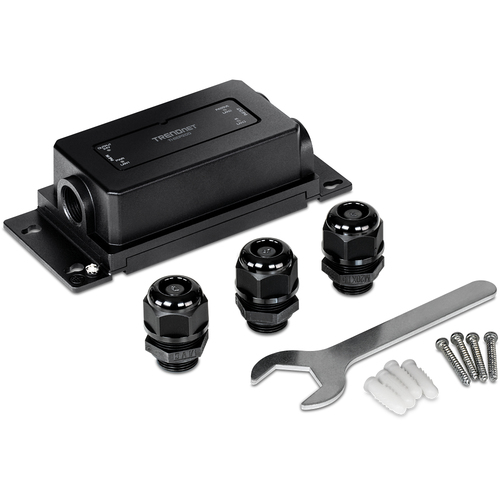

Wall mounting kit
Yes
AC adapter included
No

Sustainability

Sustainability compliance
Yes

Certificates

Compliance certificates
CE, RoHS
