Trendnet TI-ELC50 network switch Unmanaged Fast Ethernet (10/100) Black

TRENDnet’s 5-Port Industrial Fast Ethernet DIN-Rail Mini Switch, model TI-ELC50, is a reliable and rugged networking solution designed for use in both extreme and demanding environments. This industrial Fast Ethernet DIN-Rail mini switch features a rugged IP30 rated metal enclosure, and is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). The hardened industrial switch features five copper Ethernet ports for stable device connections. The mini-sized housing is designed to fit into most compact installation areas.

ON ORDER

SKU: TI-ELC50

Manufacturer: Trendnet Trendnet

RRP Price €41.82

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity
5

Network

Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
10G support
No
Full duplex
Yes
Half duplex
Yes

Data transmission

Switching capacity
1 Gbit/s
Forwarding rate
0.7 Mpps
MAC address table
1000 entries

Design

Product colour
Black
Housing material
Metal
International Protection (IP) code
IP30
Wall mountable
Yes

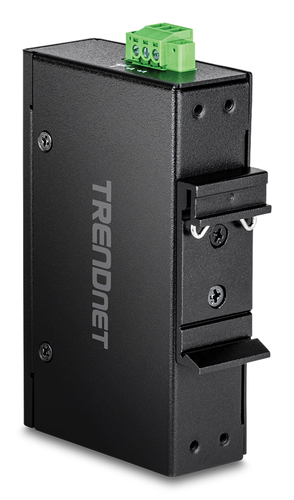

DIN rail mounting
Yes

Performance

Mean time between failures (MTBF)
576653 h

Power

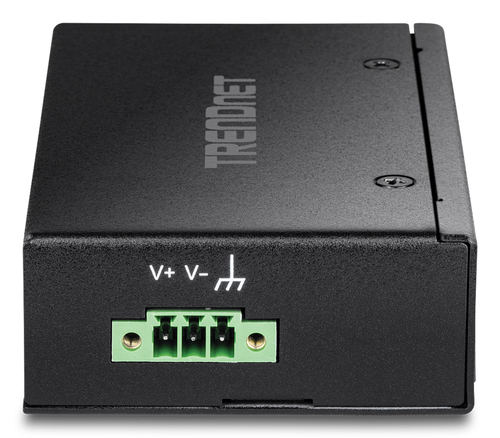

Power source
DC
DC input voltage
9.6 - 60 V
Power consumption (max)
1.23 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
-40 - 75 °C

Weight & dimensions

Width
100.5 mm
Depth
60 mm
Height
25.5 mm
Weight
214 g

Certificates

Certification
CE LVD
