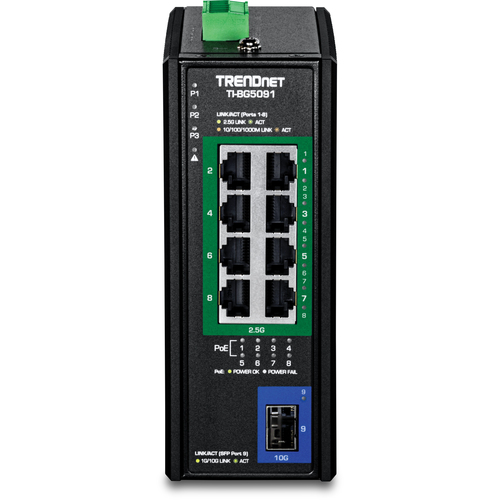

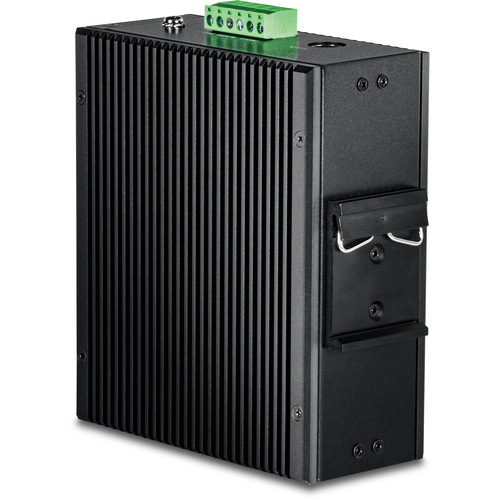

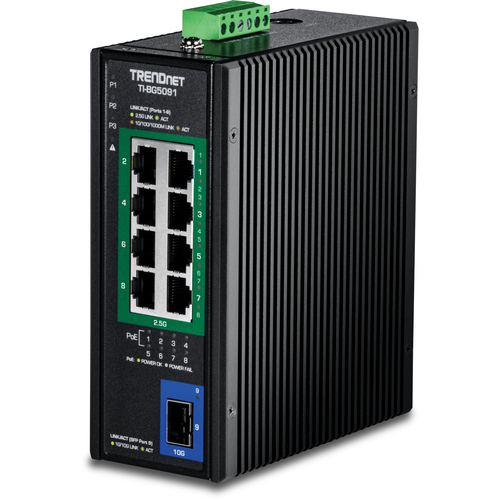

Trendnet TI-BG5091 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Black

TRENDnet's 9-Port Industrial 2.5G DIN-Rail PoE++ Switch with 10G SFP+ Port, model TI-BG5091, delivers network connectivity to rugged environments, while saving you on installation costs and setup time using Power over Ethernet technology. The industrial PoE++ switch features a rugged IP50 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). This hardened industrial PoE++ switch features eight 2.5G PoE++ ports, and a 10G SFP+ port for long-distance fiber networking applications.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Multi-Gigabit PoE++ DIN-Rail Switch by delivering up to 95W per port of PoE power and data over existing Ethernet cables. Fast PoE minimizes wait time for PoE devices by providing power immediately at boot up. With PoE technology inside this industrial PoE++ switch, users only need one cable to deliver both data and power. Easily network PoE devices to this hardened industrial PoE++ switch, such as high-power wireless access points, IP cameras, VoIP phone systems, IPTV decoders, and access controls.

ON ORDER

SKU: TI-BG5091

Manufacturer: Trendnet Trendnet

RRP Price €366.52

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
SFP+ module slots quantity
1

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
Yes
Full duplex
Yes
Half duplex
Yes
Auto-negotiation
Yes

Data transmission

Switching capacity
60 Gbit/s
Forwarding rate
44.64 Mpps
MAC address table
4000 entries
Store-and-forward
Yes
Packet buffer memory
1 MB

Design

Product colour
Black
Wall mountable
Yes
DIN rail mounting
Yes

Performance

Mean time between failures (MTBF)
83000 h

Power

Power source
DC/PoE
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
DC input voltage
48 - 57 V
Input current
2 A
Power consumption (max)
10.08 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Total Power over Ethernet (PoE) budget
480 W

Operational conditions

Operating temperature (T-T)
-40 - 75 °C

Weight & dimensions

Width
156 mm
Depth
122 mm
Height
48 mm
Weight
630 g

Certificates

Certification
CE FCC

Accessories

License
