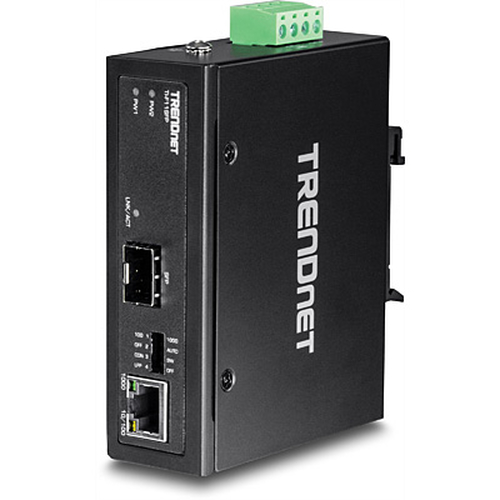

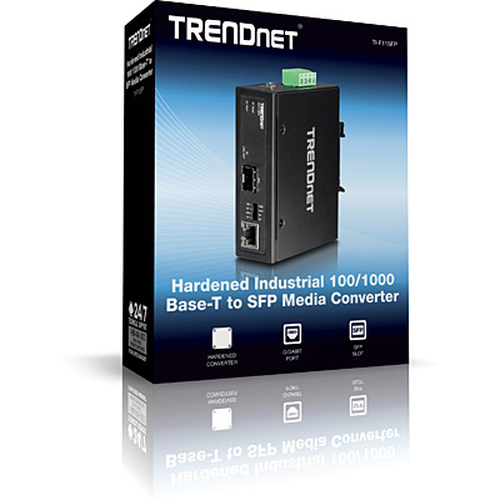

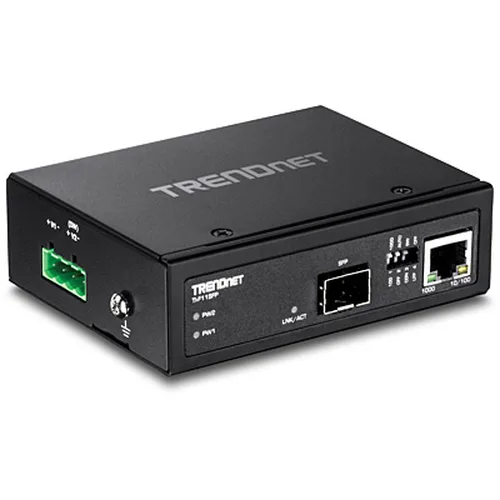

Trendnet TI-F11SFP network media converter 1000 Mbit/s Black

TRENDnet’s TI-F11SFP is a reliable IP30 rated 100/1000 Base-T to SFP media converter with hardened components rated for extreme industrial environments. Set 100 or 1000 Mbps throughput speeds, Auto Negotiation, and Link Fault Pass Through (LFP) using the front panel dip switches. Dual redundant power inputs (power supply sold separately: TI-M6024) with overload current protection support zero downtime applications.

ON ORDER

SKU: TI-F11SFP

Manufacturer: Trendnet Trendnet

RRP Price €81.41

Specifications

Network

Maximum data transfer rate
1000 Mbit/s
Converter input interface
1000Base-T
Networking standards
IEEE 802.3u, IEEE 802.3
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Jumbo frames support
Yes
Duplex system
Full, Half

Performance

Maximum transfer distance
80000 m
Buffer size
1024 KB
Mean time between failures (MTBF)
510304 h

Features

Internal
No
LED indicators
Yes
Product colour
Black
Housing material
Metal

Ports & interfaces

Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1

Power

Power over Ethernet (PoE)
No

Weight & dimensions

Width
113 mm
Depth
82 mm
Height
31 mm
Weight
152 g

Operational conditions

Operating temperature (T-T)
-40 - 75 °C

Certificates

Certification
FCC CE

Logistics data

Harmonized System (HS) code
85176990

Other features

Power requirements
12 - 56 VDC / 18 - 36 VAC
