Trendnet TPE-BE200 network extender Network transmitter & receiver White 10, 100, 1000 Mbit/s

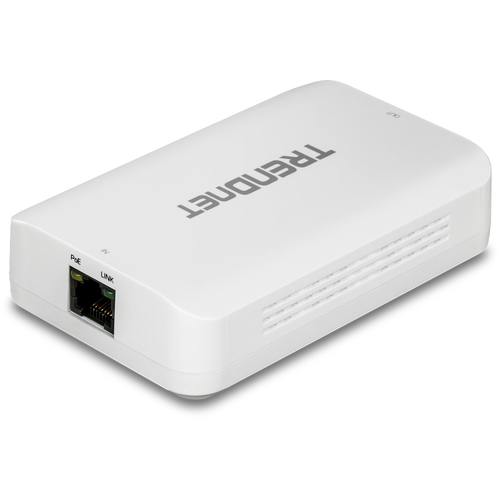

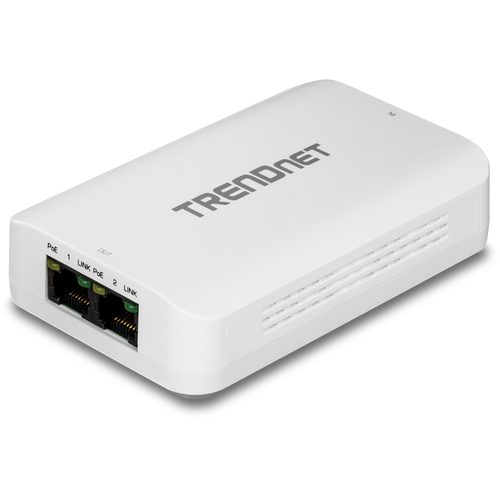

TRENDnet’s 2-Port Gigabit PoE++ Extender, model TPE-BE200, takes a single PoE++ (60W) connection and extends it an additional 100m (328 ft.) for up to two PoE+ (30W) devices. This dual/multi-port extender auto-detects a PoE (15.4W), PoE+ (30W), or PoE++ (60W) input, and extends it for a total distance of up to 200m (656 ft.) from the PoE source. Daisy chain up to four extenders for a total PoE network extension of up to 500m (1,640 ft.). This gigabit PoE++ range extender features a single PoE++ (60W) input port and two PoE+ (30W) output ports.

ON ORDER

SKU: TPE-BE200

Manufacturer: Trendnet Trendnet

RRP Price €62.40

Specifications

Performance

Type
Network transmitter & receiver
Maximum transfer distance
200 m
Data transfer rate
2000 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Jumbo frames support
Yes
Duplex system
Full, Half
MAC address table
2048 entries
Flow control support
Yes

Network

Cabling technology
10/100/1000Base-T(X)
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x

Ports & interfaces

Ethernet LAN (RJ-45) ports
3

Design

Product colour
White
LED indicators
Yes
Quantity per pack
1 pc(s)
Certification
FCC NDAA / TAA

Power

Power consumption (max)
3.3 W
Power over Ethernet (PoE)
Yes
Total Power over Ethernet (PoE) budget
60 W

Operational conditions

Operating temperature (T-T)
0 - 45 °C

Weight & dimensions

Width
70 mm
Depth
110 mm
Height
29 mm
Weight
125 g

Packaging content

Quick start guide
Yes
Wall mounting kit
Yes
AC adapter included
No

Sustainability

Sustainability compliance
Yes

Certificates

Compliance certificates
CE
