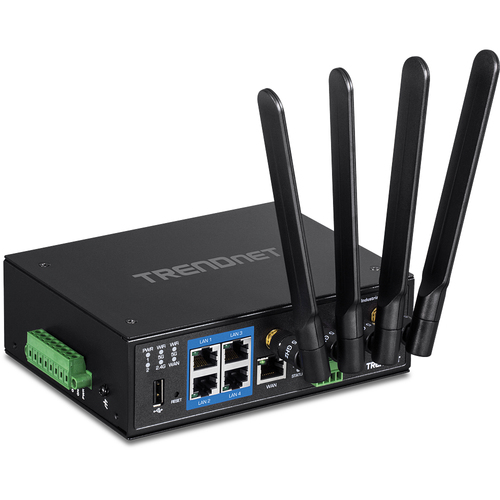

Trendnet TI-W100 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black

TRENDnet’s Industrial AC1200 Wireless Dual Band Gigabit Router, model TI-W100, features dual-band AC1200 WiFi to maximize device networking speeds; it is equipped with an 867Mbps Wireless AC network, and a 300Mbps Wireless N network. The industrial WiFi router supports dual-WAN hybrid connections (Ethernet & WiFi) for load balancing or fail-over modes, and encrypted Virtual Private Network (VPN) access for remote users. This industrial grade router is equipped with an IP30 rated metal housing, and designed to operate within a wide temperature range of -30° – 70° C (-22° – 158° F) for rugged industrial environments.

ON ORDER

SKU: TI-W100

Manufacturer: Trendnet Trendnet

RRP Price €325.61

Specifications

WAN connection

Ethernet WAN
Yes
DSL WAN
Yes
3G/4G USB modem compatibility
Yes
WAN connection type
RJ-45

Wireless LAN features

Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)
9000 Mbit/s
Wi-Fi standards
802.11a, 802.11ad, 802.11b, 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Channels quantity
13 channels

Network

Ethernet LAN
Yes
Ethernet LAN interface type
Gigabit Ethernet
Ethernet LAN data rates
10,1000 Mbit/s
SSID-based VLAN assignment
Yes

Mobile network

3G
Yes
4G
Yes
5G
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
4
USB port
Yes
USB 2.0 ports quantity
1

Management features

Wi-Fi Multimedia (WMM)/(WME)
Yes
Reset button
Yes

Security

Network address translation (NAT)
Yes

Design

Product colour
Black
Product type
Tabletop router

Antenna

Antenna design
External
Antenna connector type
SMA
Antenna gain level (max)
3.5 dBi

Features

Mean time between failures (MTBF)
333367 h

Power

Power source type
DC

Operational conditions

Operating temperature (T-T)
-30 - 70 °C
Operating relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
160 mm
Depth
120 mm
Height
51 mm
Weight
1.01 kg

Accessories

License
