Trendnet TI-XPG102 network switch Unmanaged Power over Ethernet (PoE) Black

Trendnet TI-XPG102 network switch Unmanaged Power over Ethernet (PoE) Black

Name: Trendnet TI-XPG102 network switch Unmanaged Power over Ethernet (PoE) Black
Brand: Trendnet
SKU: TI-XPG102
Price: 678.03 EUR
Availability: OutOfStock

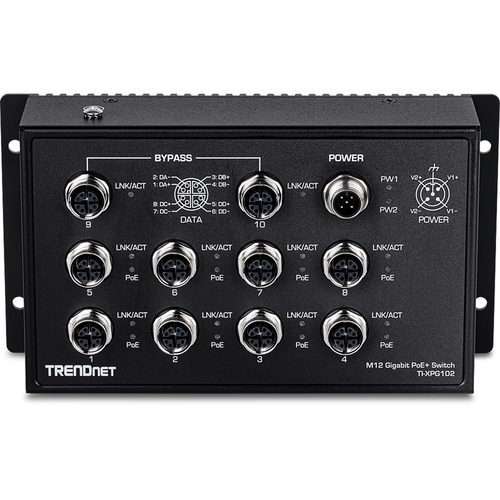

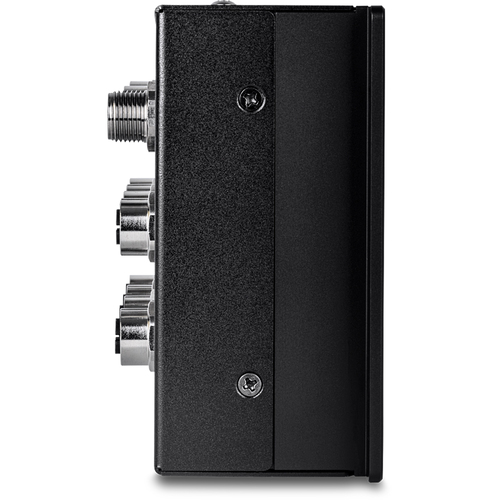

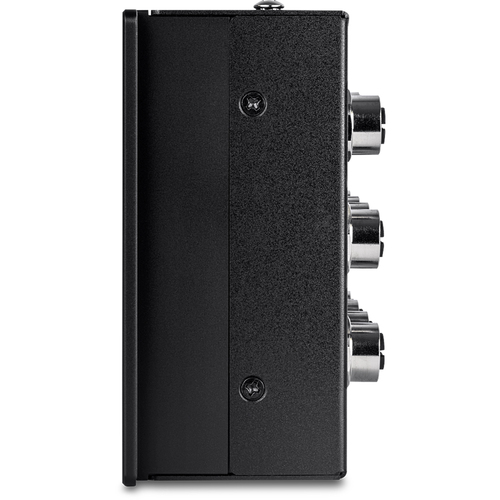

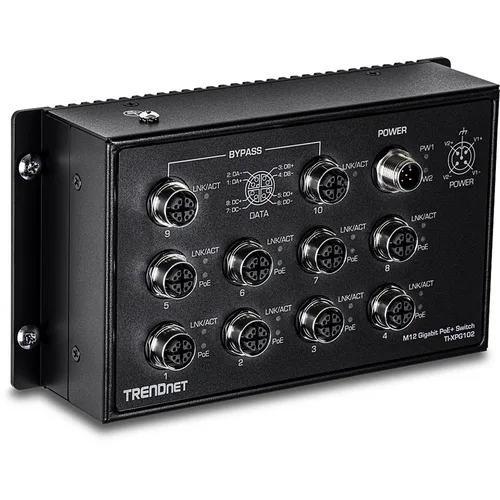

TRENDnet’s 10-Port Industrial EN 50155 M12 Gigabit PoE+ Railway Switch, model TI-XPG102, has eight M12 gigabit PoE+ ports, two M12 gigabit ports, and one M12 power port with a total PoE budget of up to 200W with 56VDC input. This M12 Ethernet switch is equipped with an IP40 rated metal enclosure, designed to withstand a high-degree of vibration and shock, while operating within an extreme temperature range of -40° – 75° C (-40° – 167° F) for industrial EN 50155 applications. The M12 Ethernet switch is designed and tested for bus, train, automobile, and telecom applications.

ON ORDER

SKU: TI-XPG102

Manufacturer: Trendnet

RRP Price €678.03

Specifications

Management features

Switch type

Unmanaged

Network

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x

10G support

Full duplex

Yes

Half duplex

Yes

Data transmission

Switching capacity

20 Gbit/s

Forwarding rate

14.88 Mpps

MAC address table

8000 entries

Jumbo frames support

Yes

Jumbo frames

9000

Packet buffer memory

0.5 MB

Design

Product colour

Black

Housing material

Metal

International Protection (IP) code

IP40

Wall mountable

Yes

Performance

Mean time between failures (MTBF)

510037 h

Power

Power source

DC/PoE

DC input voltage

24 - 56 V

Power consumption (max)

5.76 W

Power over Ethernet (PoE)

Yes

Power over Ethernet plus (PoE+) ports quantity

Total Power over Ethernet (PoE) budget

200 W

Operational conditions

Operating temperature (T-T)

-40 - 75 °C

Weight & dimensions

Width

160 mm

Depth

97 mm

Height

50 mm

Weight

884 g

Certificates

Certification

CE FCC

Description

Manufacturer

Trendnet

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.884 kg

Country of Origin

N/A
