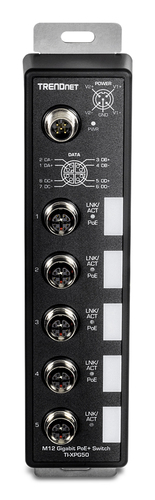

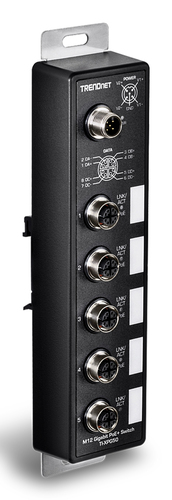

Trendnet TI-XPG50 network switch Unmanaged Power over Ethernet (PoE)

TRENDnet’s 5-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch, model TI-XPG50, has four M12 gigabit PoE+ ports and one M12 gigabit port with a total PoE budget of up to 120W. This M12 Ethernet switch is equipped with an IP67 outdoor rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial EN50155 applications. The M12 Ethernet switch is designed and tested for mobile bus, train, other transportation and telecom applications.

ON ORDER

SKU: TI-XPG50

Manufacturer: Trendnet Trendnet

RRP Price €406.87

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports type
No

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Full duplex
Yes
Half duplex
Yes
Auto-negotiation
Yes

Data transmission

Switching capacity
10 Gbit/s
Forwarding rate
7.44 Mpps
MAC address table
2000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
9000

Design

Rack mounting
No
Housing material
Metal
LED indicators
Yes
International Protection (IP) code
IP67
Wall mountable
Yes

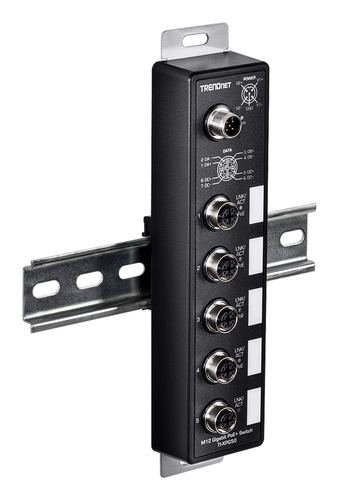

DIN rail mounting
Yes

Performance

Mean time between failures (MTBF)
546613 h

Power

Power source
DC/PoE
DC input voltage
48 - 56 V
Power consumption (max)
5 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Total Power over Ethernet (PoE) budget
120 W

Weight & dimensions

Width
220 mm
Depth
50 mm
Height
28 mm
Weight
368 g

Certificates

Certification
CE FCC

Accessories

License
