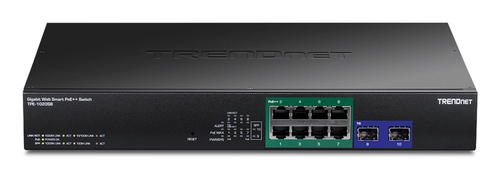

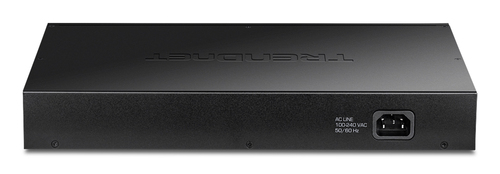

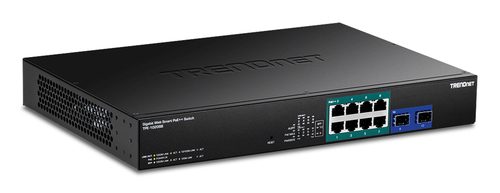

Trendnet TPE-1020SB network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U

TRENDnet’s Gigabit Web Smart PoE++ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack-mountable IPv6-ready managed PoE++ switch comes with an intuitive webbased interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this managed PoE++ switch a powerful solution for any SMB network. Improve voice performance by isolating
and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.
Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Gigabit Web Smart Managed PoE++ Switch by delivering up to 95W of PoE power and data over existing Ethernet cables. With PoE technology, users only need one cable to deliver both data and power. This PoE++ switch is ideal for networking PoE devices, such as high-power wireless access points, PoE lighting, digital signage, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

ON ORDER

SKU: TPE-1020SB

Manufacturer: Trendnet Trendnet

RRP Price €257.73

Specifications

Management features

Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Configuring Location Settings (CLI)
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
2

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Link aggregation
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Virtual LAN features
Tagged VLAN, Voice VLAN
Number of VLANs
4094

Data transmission

Switching capacity
20 Gbit/s
Forwarding rate
14.88 Mpps
MAC address table
8000 entries
Jumbo frames support
Yes
Jumbo frames
9000
Packet buffer memory
0.5 MB

Security

DHCP features
DHCP snooping
IGMP snooping
Yes

Multicast features

Multicast support
Yes

Protocols

Management protocols
SNMP v1, v2c, v3

Design

Rack mounting
Yes
Form factor
1U
Reset button
Yes
LED indicators
Yes
Number of fans
1 fan(s)

Performance

Noise level
55 dB
Mean time between failures (MTBF)
243000 h

Power

Power source
AC/PoE
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
185.8 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Total Power over Ethernet (PoE) budget
180 W

Operational conditions

Operating temperature (T-T)
0 - 40 °C

Weight & dimensions

Width
330 mm
Depth
230 mm
Height
44 mm
Weight
2.38 kg

Packaging content

Cables included
AC
Quick start guide
Yes
Rack mount kit
Yes

Certificates

Certification
CE FCC LVD ETL

Accessories

License
