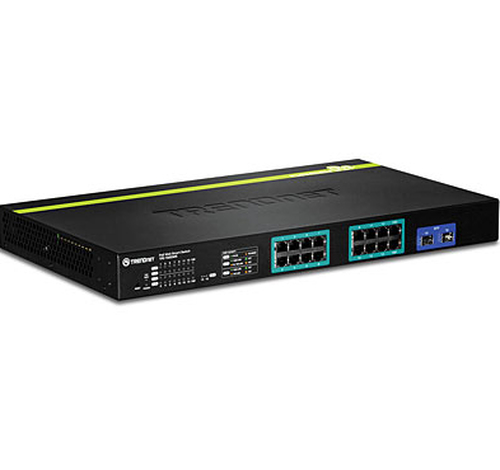

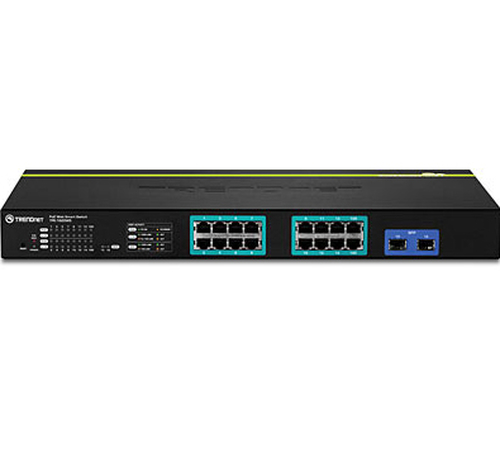

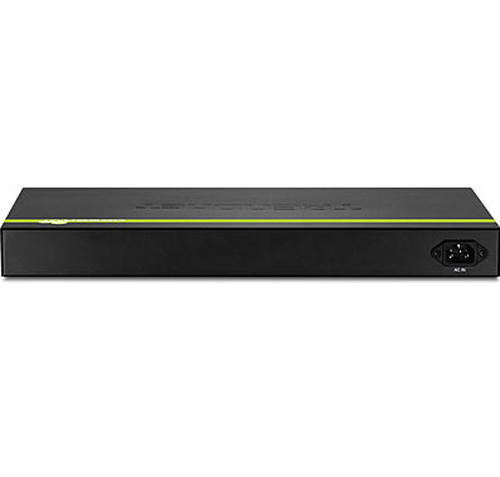

Trendnet TPE-1620WS network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

TRENDnet’s 16-Port Gigabit Web Smart PoE+ Switch, model TPE-1620WS, delivers a 32 Gbps switching capacity with 16 PoE+ Gigabit ports and two shared SFP slots. This IPv6 ready switch offers advanced traffic management, troubleshooting, security, energy saving GREENnet, and monitoring features at a reduced cost.

ON ORDER

SKU: TPE-1620WS

Manufacturer: Trendnet Trendnet

RRP Price €339.68

Specifications

Management features

Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes
MIB support
MIB II

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
16
SFP module slots quantity
2

Network

Networking standards
IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support
No
Copper ethernet cabling technology
1000BASE-T, 100BASE-TX, 10BASE-T
Port mirroring
Yes
Full duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Number of VLANs
256

Data transmission

Switching capacity
32 Gbit/s
Throughput
23.8 Mpps
MAC address table
16000 entries
Jumbo frames support
Yes

Security

DHCP features
DHCP server, DHCP client
Access Control List (ACL)
Yes
IGMP snooping
Yes
Security algorithms
802.1x RADIUS, SSL/TLS
MAC address filtering
Yes

Multicast features

Multicast support
Yes

Protocols

Management protocols
HTTP/HTTPS (SSL v2/3 TLS), Web-based GUI, SNMP v1/v2c/v3, LLDP, RMON v1

Design

Rack mounting
Yes
Form factor
1U
Product colour
Black
LED indicators
Yes

Power

AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
198 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
16
Total Power over Ethernet (PoE) budget
185 W

Operational conditions

Operating temperature (T-T)
0 - 45 °C

Weight & dimensions

Width
440 mm
Depth
251 mm
Height
44.5 mm
Weight
3.6 kg

Certificates

Certification
CE FCC

Logistics data

Harmonized System (HS) code
85176990
