Trendnet TPE-BG380 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Black

Trendnet TPE-BG380 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Black

Name: Trendnet TPE-BG380 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Black
Brand: Trendnet
SKU: TPE-BG380
Price: 244.17 EUR
Availability: OutOfStock

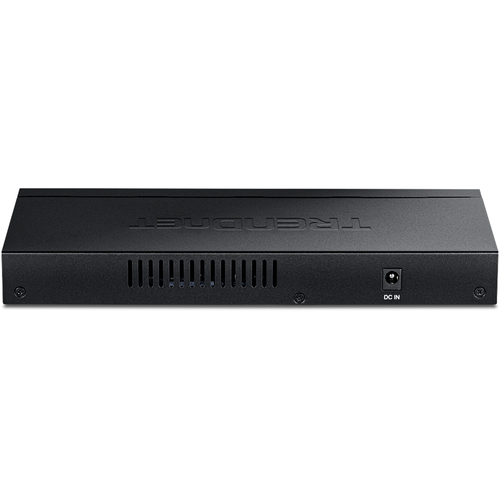

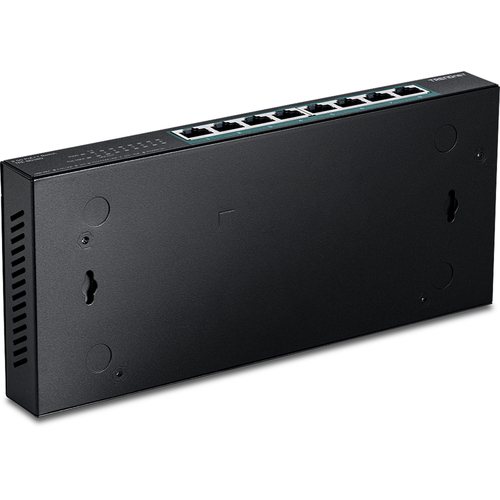

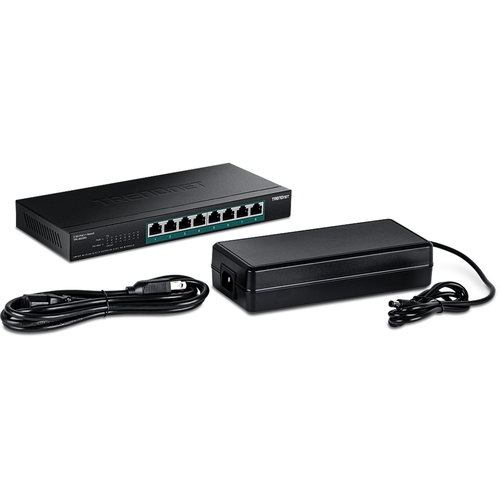

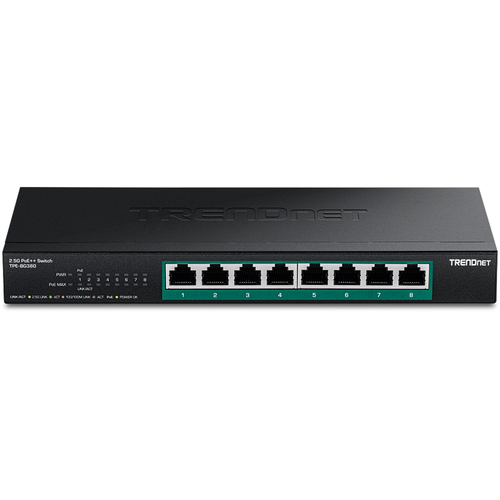

Expand your network’s bandwidth and reduce traffic bottlenecks with TRENDnet’s 8-Port 2.5G PoE++ Switch, model TPE-BG380. This 2.5G PoE++ switch is equipped with 2.5GBASE-T RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. This multi-gigabit PoE++ switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates distracting operating noise.

TRENDnet’s reliable 2.5G PoE++ switches are cost-effective solutions to increase your network’s throughput. A 230W total PoE power budget on this multi-gig PoE++ switch supplies up to eight PoE devices with up to 95W per port. Easily network PoE devices such as high-power wireless access points, cameras, digital signage, IPTV decoders, access controls, and more with this high-power 2.5 gigabit PoE++ switch.

ON ORDER

SKU: TPE-BG380

Manufacturer: Trendnet

RRP Price €244.17

Specifications

Management features

Switch type

Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

2.5G Ethernet (100/1000/2500)

Network

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x

10G support

Full duplex

Yes

Half duplex

Yes

Data transmission

Switching capacity

40 Gbit/s

Forwarding rate

29.76 Mpps

MAC address table

4000 entries

Jumbo frames support

Yes

Jumbo frames

12000

Design

Product colour

Black

Wall mountable

Yes

Performance

Mean time between failures (MTBF)

288800 h

Power

Power source

AC/DC/PoE

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

DC input voltage

46 - 54 V

Input current

4.7 A

Power consumption (max)

9.5 W

Power protection features

Over current, Short circuit

Power over Ethernet (PoE)

Yes

Power over Ethernet plus (PoE+) ports quantity

Power over Ethernet (PoE) power per port

95 W

Total Power over Ethernet (PoE) budget

230 W

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Weight & dimensions

Width

240 mm

Depth

105 mm

Height

27 mm

Weight

716 g

Certificates

Certification

CE FCC

Description

Manufacturer

Trendnet

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.716 kg

Country of Origin

N/A

Datasheet

No Data Sheet Found!

Accessories

No Accessories Found!

License

No License Found!
