Trendnet TPE-TG83 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Trendnet TPE-TG83 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Name: Trendnet TPE-TG83 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Brand: Trendnet
SKU: TPE-TG83
Price: 79.41 EUR
Availability: OutOfStock

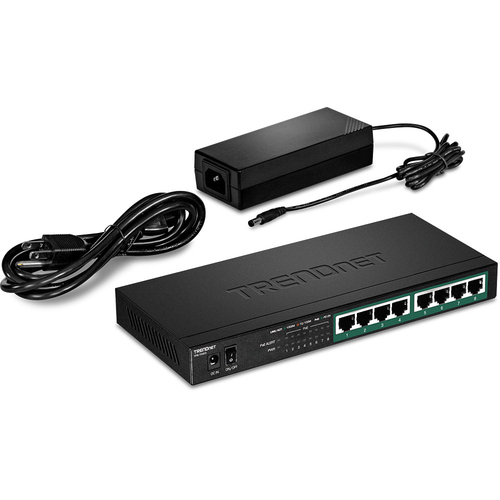

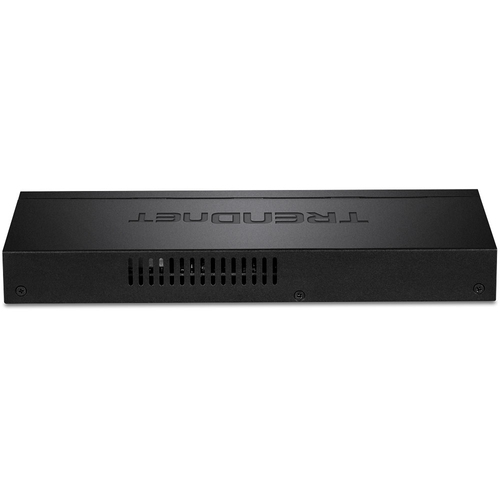

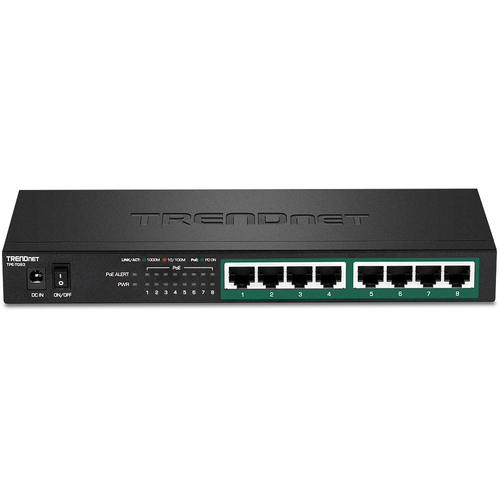

TRENDnet's 8-Port Gigabit PoE+ Switch, model TPE-TG83, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. This compact network switch provides eight gigabit PoE+ ports with a total PoE power budget of 65W. The TPE-TG83 PoE+ switch allows you to network PoE devices, such as wireless access points, IP cameras, VoIP phones, IP video encoders, access controls, and more. It features a fanless design, and has a convenient option for wall mounting.

PoE+
A 65W PoE power budget supports up to eight Power over Ethernet devices.

Gigabit Ports
Eight gigabit PoE+ ports provide a 16Gbps switching capacity to support edge network installations.

Compact Design
With a compact and lightweight metal housing design, this switch is well-suited for desktop installations

Jumbo Frame
Sends Jumbo Frames (up to 9KB) for increased performance

Fanless
Fanless design is ideal for quiet environments that require silent operation

ON ORDER

SKU: TPE-TG83

Manufacturer: Trendnet

RRP Price €79.41

Specifications

Management features

Switch type

Unmanaged

Quality of Service (QoS) support

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Network

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x

10G support

Cable types supported

Cat5e

Full duplex

Yes

Half duplex

Yes

Data transmission

Switching capacity

16 Gbit/s

Forwarding rate

11.9 Mpps

MAC address table

4000 entries

Jumbo frames support

Yes

Jumbo frames

9000

Packet buffer memory

0.192 MB

Design

Product colour

Black

Housing material

Metal

LED indicators

Activity, Link, PoE, Power

Wall mountable

Yes

Performance

Fanless

Yes

Power

Power source

AC/DC

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Input current

2.5 A

Power over Ethernet (PoE)

Yes

Power over Ethernet plus (PoE+) ports quantity

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

65 W

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 90%

Weight & dimensions

Width

240 mm

Depth

105 mm

Height

27 mm

Weight

580 g

Packaging content

Cables included

Quick start guide

Yes

Certificates

Certification

CE, FCC, LVD

Logistics data

Harmonized System (HS) code

85176990

Description

Manufacturer

Trendnet

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.58 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
