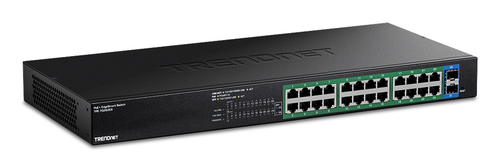

Trendnet TPE-TG262ES network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

TRENDnet’s 26-Port Gigabit EdgeSmart PoE+ Switch, model TPE-TG262ES, is a cost-effective rackmount easy smart PoE+ switch solution for high-speed gigabit PoE+ applications. This EdgeSmart switch features the most commonly used managed switch features, reducing unnecessary switch complexity. The web-based management interface offers features for traffic control, static link aggregation, RSTP, VLAN, QoS, and monitoring. TRENDnet’s TPE-TG262ES easy smart PoE+ switch provides 24 gigabit PoE+ ports for connecting network devices, such as wireless access points, IP cameras, and VoIP handsets; and two gigabit SFP ports for long-distance fiber connectivity.

ON ORDER

SKU: TPE-TG262ES

Manufacturer: Trendnet Trendnet

RRP Price €407.20

Specifications

Management features

Switch type
Managed
Quality of Service (QoS) support
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
2

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
No
Link aggregation
Yes
Broadcast storm control
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Virtual LAN features
Private VLAN, Tagged VLAN, Voice VLAN
Number of VLANs
4094

Data transmission

Switching capacity
52 Gbit/s
Forwarding rate
38.69 Mpps
MAC address table
8000 entries
Jumbo frames support
Yes
Jumbo frames
9000
Packet buffer memory
0.5 MB

Security

IGMP snooping
Yes

Multicast features

Multicast support
Yes

Protocols

Management protocols
SNMP v1, v2c

Design

Rack mounting
Yes
Product colour
Black
Reset button
Yes
Number of fans
2 fan(s)

Performance

Noise level
51 dB
Mean time between failures (MTBF)
447228 h

Power

Power source
AC/PoE
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
14.93 W
Power protection features
Over current, Short circuit

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
PoE+
Power over Ethernet plus (PoE+) ports quantity
24
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
380 W

Weight & dimensions

Width
440 mm
Depth
195 mm
Height
44 mm
Weight
3.06 kg

Certificates

Certification
CE FCC ETL
