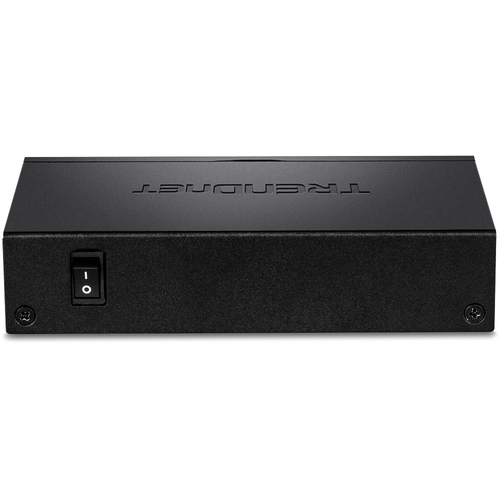

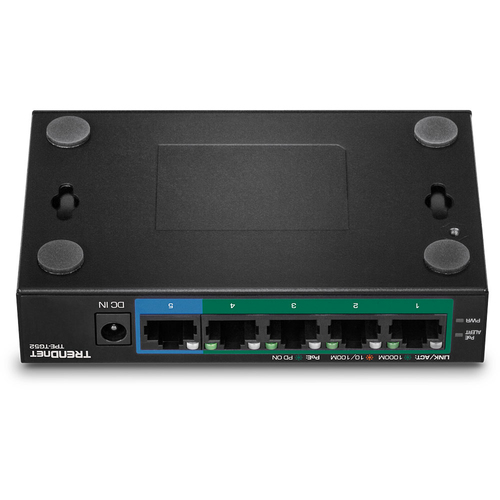

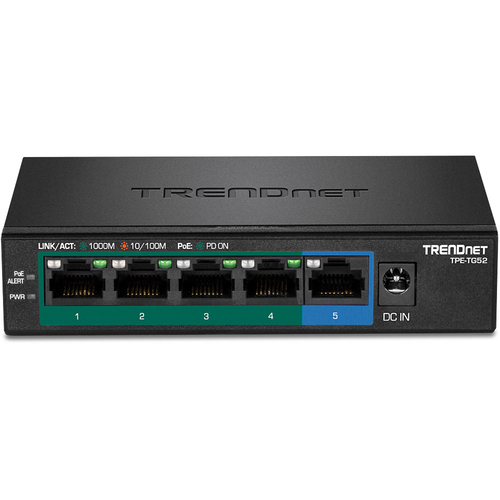

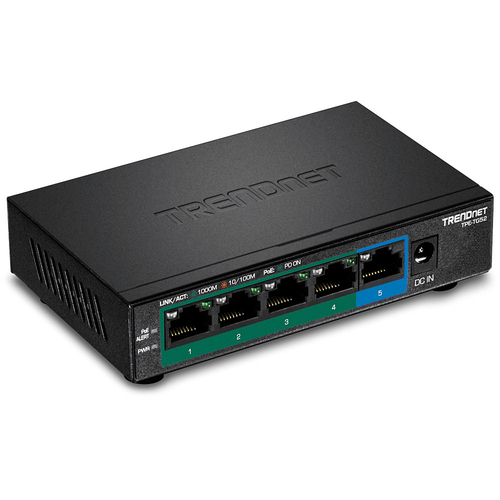

Trendnet TPE-TG52 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

TRENDnet's 5-Port Gigabit PoE+ Switch, model TPE-TG52, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. This compact network switch features four gigabit PoE+ ports and one gigabit port, with a 32W total PoE power budget. The TPE-TG52 PoE+ switch allows you to network PoE devices, such as wireless access points, IP cameras, VoIP phones, IP video encoders, access controls, and more. It features a fanless design, and has a convenient option for wall mounting.

PoE+
A 32W PoE power budget supports up to four Power over Ethernet devices.

Gigabit Ports
Five gigabit ports provide a 10Gbps switching capacity to support edge network installations.

Compact Design
Compact, lightweight, and fanless, this switch is designed for desktops and quiet environments.

Jumbo Frame
Sends Jumbo Frames (up to 9KB) for increased performance

Fanless
Fanless design is ideal for quiet environments that require silent operation

ON ORDER

SKU: TPE-TG52

Manufacturer: Trendnet Trendnet

RRP Price €40.29

Specifications

Management features

Switch type
Unmanaged
Quality of Service (QoS) support
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power connector
DC-in jack

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x
10G support
No
Full duplex
Yes
Half duplex
Yes
VLAN support
Yes

Optical fiber

Switching optical modules type
Gigabit Ethernet

Data transmission

Switching capacity
10 Gbit/s
Forwarding rate
7.44 Mpps
MAC address table
2000 entries
Jumbo frames support
Yes
Jumbo frames
9000
Packet buffer memory
0.128 MB

Design

Product colour
Black
Housing material
Metal
LED indicators
Activity, Link, PoE, Power
Wall mountable
Yes

Performance

Fanless
Yes
MTBF (PoE)
3516000 h

Power

Power source
AC/DC
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
DC input voltage
54 V
Input current
1.2 A
Power consumption (max)
36 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
4
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
32 W

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 90%

Weight & dimensions

Width
121 mm
Depth
75 mm
Height
26 mm
Weight
246 g

Certificates

Certification
CE, FCC, LVD

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
