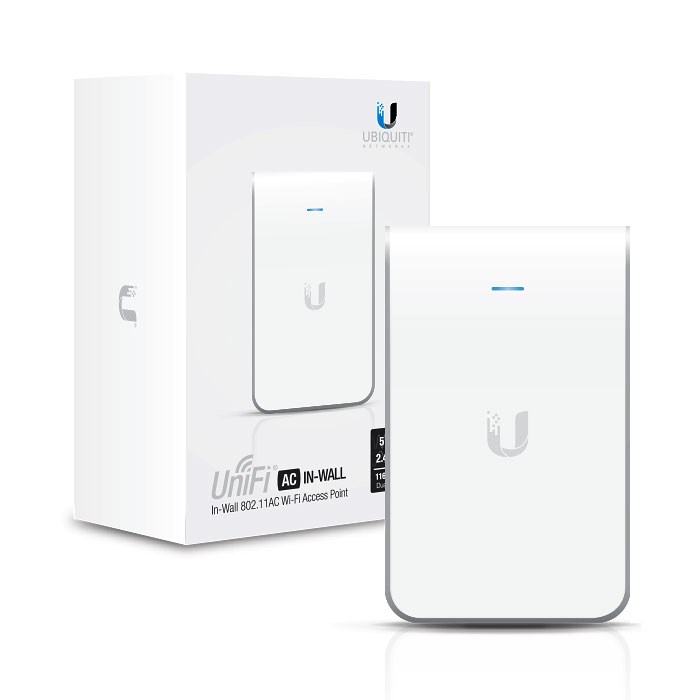

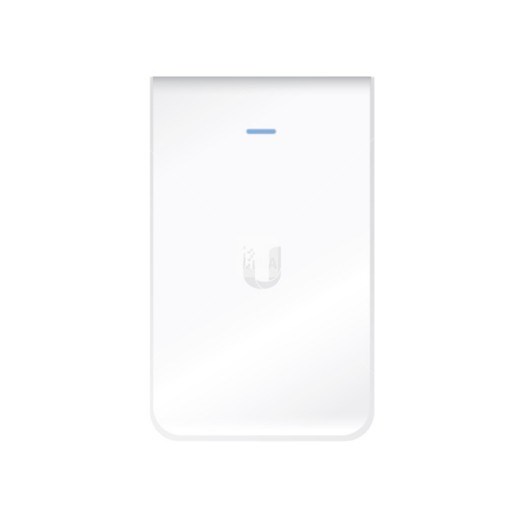

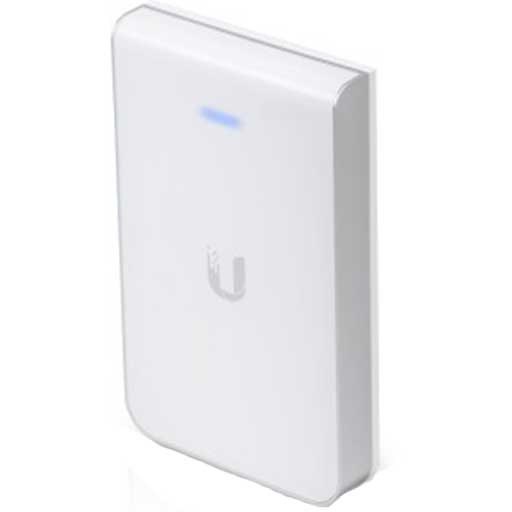

Ubiquiti UAP-AC-IW wireless access point 867 Mbit/s White Power over Ethernet (PoE)

Easier Than You Think
Ideal for new and retrofit installations, the UniFi® AC In-Wall is designed to convert an Ethernet wall jack into a dual-band 802.11ac Wi-Fi access point with two Gigabit Ethernet ports.

The Power of PoE
Turn existing wiring into per-room Wi-Fi with the UniFi PoE Switch series.*
* Requires Cat5e or higher

Versatile Data and PoE Output
An Ethernet wall jack becomes an access point, a gigabit switch, and a PoE power source.
Wire a workstation and power a VoIP phone. Or power a US-8 for even more Ethernet ports.

Simple and Scalable Device Management
The UniFi® Controller provides a graphical user interface for easy
configuration and monitoring of the UniFi Switch and other UniFi devices.

ON ORDER

SKU: UAP-AC-IW

Manufacturer: Ubiquiti Ubiquiti

RRP Price €118.48

Specifications

Features

2.4 GHz
Yes
5 GHz
Yes
Maximum data transfer rate
867 Mbit/s
Maximum data transfer rate (5 GHz)
867 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Frequency band
2.4 - 5 GHz
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at
Number of users
250 user(s)
Wi-Fi Multimedia (WMM)/(WME)
Yes
VLAN support
Yes
Rate limiting
Yes
Wireless isolation
Yes
Quality of Service (QoS) support
Yes
Maximum indoor range
100 m
Transmitting power
20 dBmW

Security

Security algorithms
AES, TKIP, WEP, WPA, WPA-Enterprise, WPA-PSK, WPA2

Management features

Web-based management
Yes
Firmware upgradeable
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
3
Internal RJ-45 ports quantity
1
DC-in jack
Yes

Power

Power over Ethernet (PoE)
Yes
AC input voltage
48 V
Input current
0.5 A
Power consumption (typical)
7 W
Power consumption (max)
19 W

Design

Placement
In-wall
Product colour
White
Reset button
Yes
LED indicators
Yes
Internal
No

Antenna

Antenna features
Integrated antenna
Antennas quantity
1
Antenna gain level (max)
2 dBi
Polarization
Single polarization

Certificates

Certification
DFS, CE, FCC, IC

Weight & dimensions

Width
86.7 mm
Depth
25.8 mm
Height
139.7 mm
Weight
200 g

Packaging content

Mounting kit
Yes
Quick start guide
Yes

Operational conditions

Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-10 - 50 °C

Logistics data

Harmonized System (HS) code
85176990
