Ubiquiti UniFi HD In-Wall 1733 Mbit/s White Power over Ethernet (PoE)

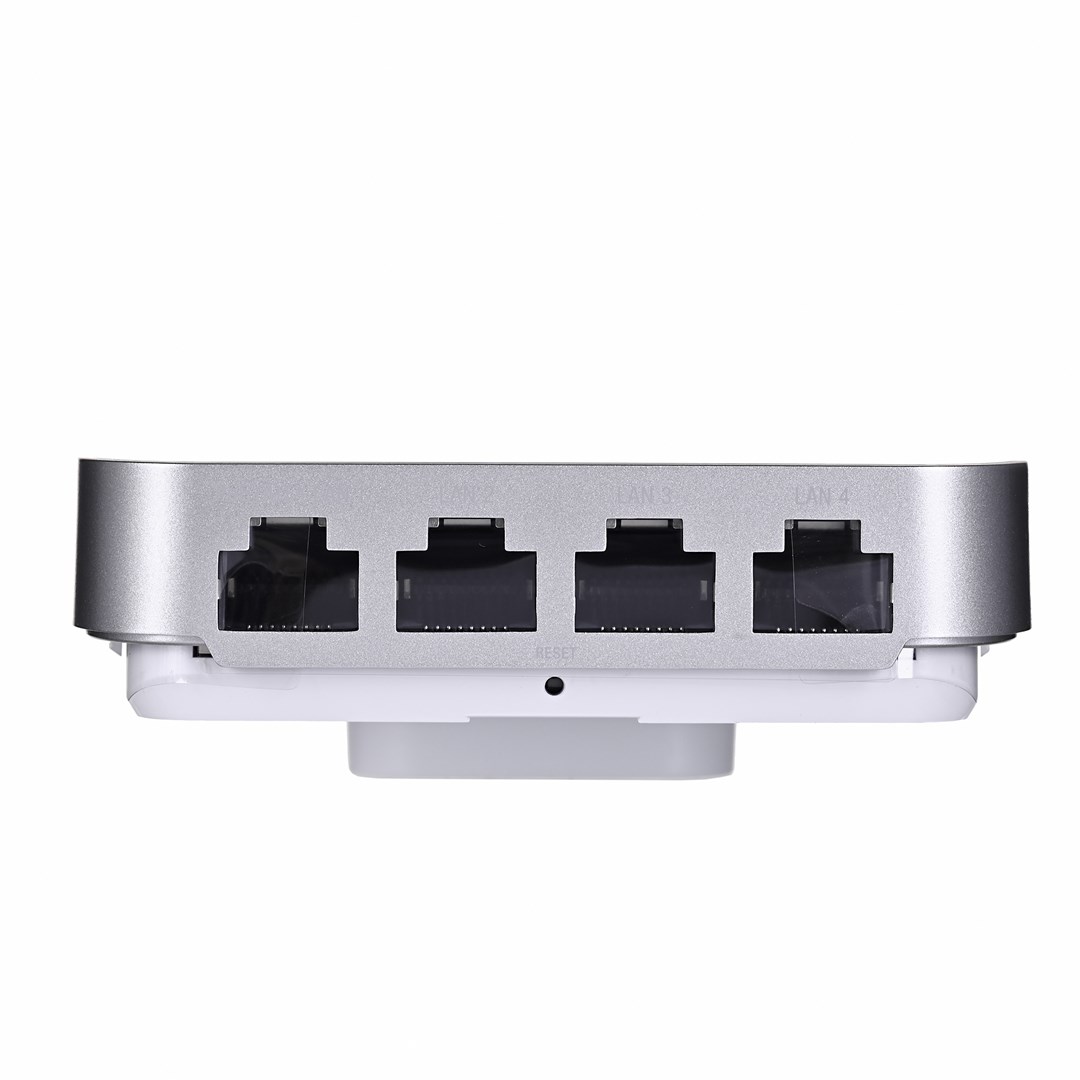

Integrated Gigabit Switch
Four ports are available for bridging – one of which offers PoE passthrough when the AP is powered by an 802.3at PoE+ switch.

Superior Processing Power
The UniFi IW HD AP is capable of complex operations (guest control, filtering, and other resource-intensive tasks) that may slow down a lesser-equipped AP.

Power over Ethernet (PoE) Standard
The UniFi IW HD AP can be conveniently powered by an 802.3af or 802.at compliant switch. We recommend powering your UniFi devices with a UniFi PoE Switch.

Quick and Simple Installation
The UniFi IW HD AP has a refined industrial design and can be easily installed using the included mounting hardware.

Customizable with Various Skins
Optional skins (sold separately) allow the UniFi IW HD AP to discreetly blend into its setting.

UniFi Controller
Use the UniFi Controller to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs.

ON ORDER

SKU: UAP-IW-HD

Manufacturer: Ubiquiti Ubiquiti

RRP Price €208.08

Specifications

Features

2.4 GHz
Yes
5 GHz
Yes
Maximum data transfer rate
1733 Mbit/s
Wi-Fi data rate (max)
1733 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Throughput data rate
940 Mbit/s
Frequency band
2.4/5 GHz
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11w, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at
Number of users
200 user(s)
MIMO
Yes
MIMO type
Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME)
Yes
VLAN support
Yes
Virtual LAN features
Tagged VLAN
Rate limiting
Yes
Wireless isolation
Yes
Band steering
Yes
Airtime Fairness (ATF)
Yes
Dynamic Frequency Selection (DFS)
Yes
Quality of Service (QoS) support
Yes
Transmitting power
26 dBmW

Security

Security algorithms
WEP, WPA, WPA-AES, WPA-Enterprise, WPA-PSK, WPA-TKIP, WPA2, WPA2-EAP, WPA2-TKIP

Protocols

Management protocols
802.1Q, QoS, WMM

Management features

Web-based management
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
5
Internal RJ-45 ports quantity
1
WAN connection
Ethernet (RJ-45)

Power

Power over Ethernet (PoE)
Yes
AC input voltage
44 - 57 V
Power consumption (max)
23 W

Design

Placement
Wall
Product colour
White
Reset button
Yes
LED indicators
Yes
Internal
No

Antenna

Antenna features
Integrated antenna
Antennas quantity
4
Antenna gain level (max)
6 dBi

Certificates

Certification
CE, FCC, IC

Weight & dimensions

Width
86.7 mm
Depth
25.8 mm
Height
139.7 mm
Weight
210 g

Packaging content

Quantity per pack
1 pc(s)

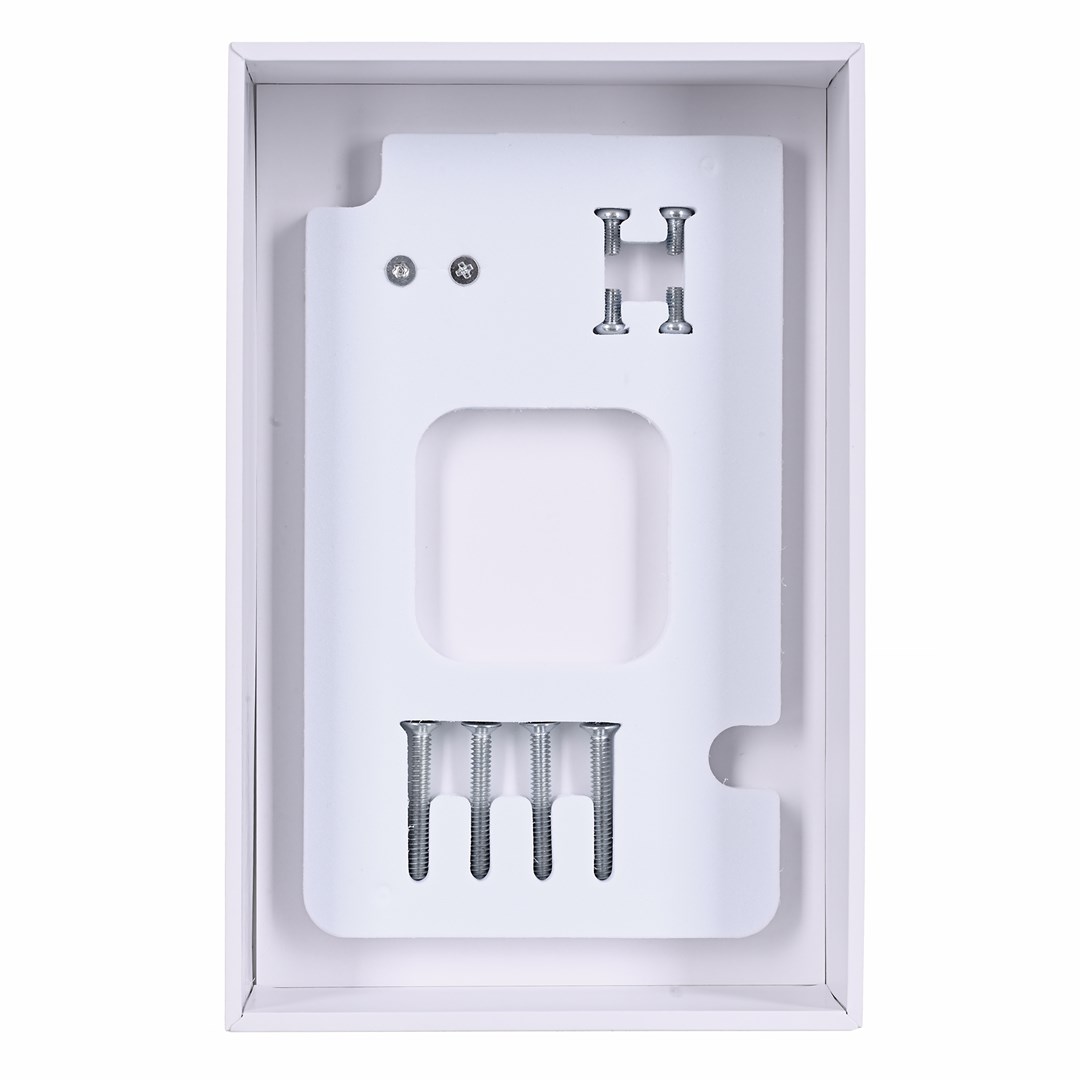

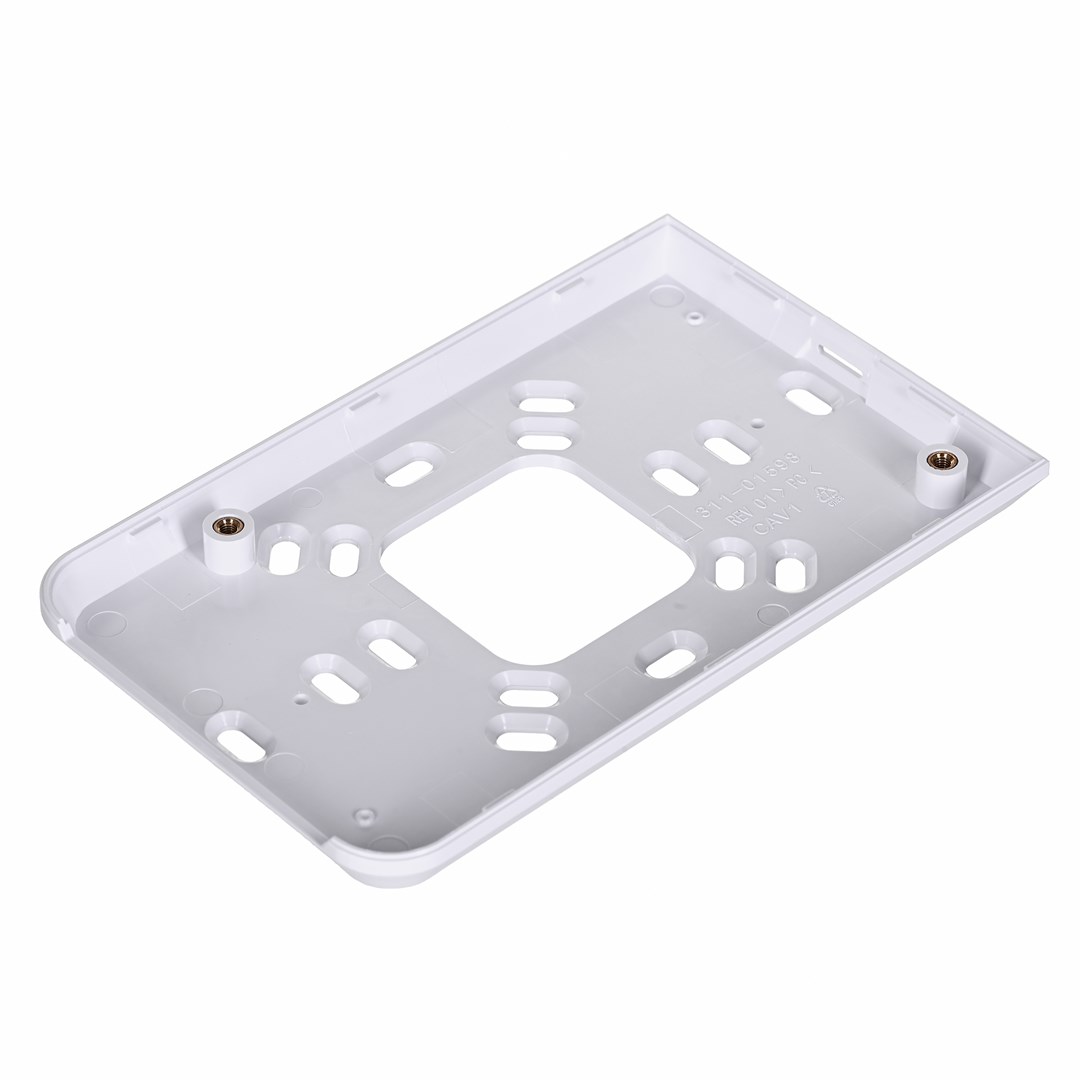

Mounting kit
Yes

Operational conditions

Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-10 - 60 °C

Logistics data

Harmonized System (HS) code
85176990
