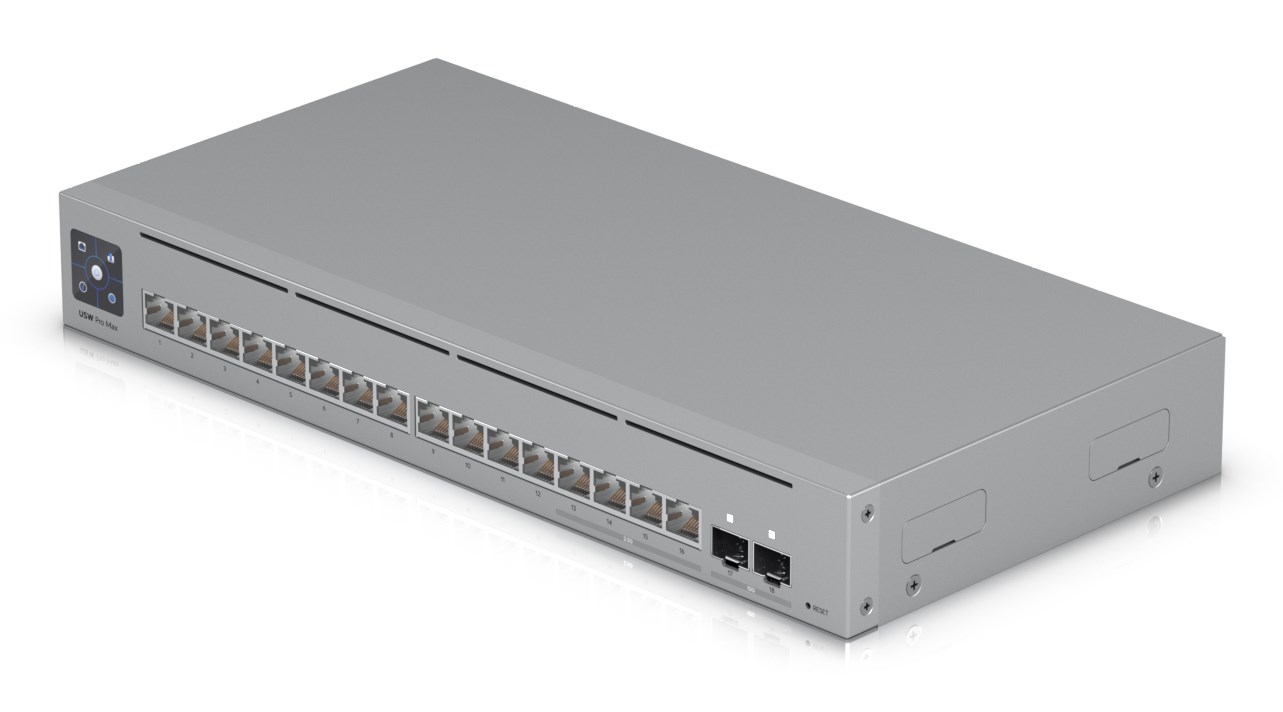

Ubiquiti Pro Max 16 L3 2.5G Ethernet (100/1000/2500) 1U Grey

A 16-port, Layer 3 Etherlightingâ„¢ switch 2.5 GbE and versatile mounting options.

6 IN STOCK

SKU: USW-PRO-MAX-16

Manufacturer: Ubiquiti Ubiquiti

RRP Price €313.33

Specifications

Management features

Switch layer
L3
Quality of Service (QoS) support
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
Gigabit Ethernet (copper) ports quantity
12
2.5G Ethernet (copper) ports quantity
4
SFP+ module slots quantity
2
Power connector
AC/DC

Network

Networking standards
IEEE 802.1x
10G support
Yes
Port mirroring
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
IPv4 routes
512
VLAN support
Yes
Virtual LAN features
Voice VLAN
Number of VLANs
1000

Data transmission

Switching capacity
84 Gbit/s
Throughput
42 Gbit/s
Forwarding rate
62 Mpps
MAC address table
16000 entries
Static route
Yes
Jumbo frames support
Yes
Packet buffer memory
1.5 MB

Security

DHCP features
DHCP guarding, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL)
Yes
IGMP snooping
Yes
Loop protection
Yes
Authentication type
IEEE 802.1x

Design

Rack mounting
Yes
Stackable
Yes
Form factor
1U
Product colour
Grey
Housing material
SGCC
Reset button
Yes
LED indicators
Link, Network, Speed, Status
Display type
LCM

Performance

Fanless
Yes

Power

Power supply included
Yes
Redundant power supply (RPS) support
Yes
Input current
5 A
Input voltage
4.8 - 5.2 V
Power consumption (max)
25 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
-5 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
85.3 BTU/h

Weight & dimensions

Width
325.1 mm
Depth
160 mm
Height
43.7 mm
Weight
1.95 kg

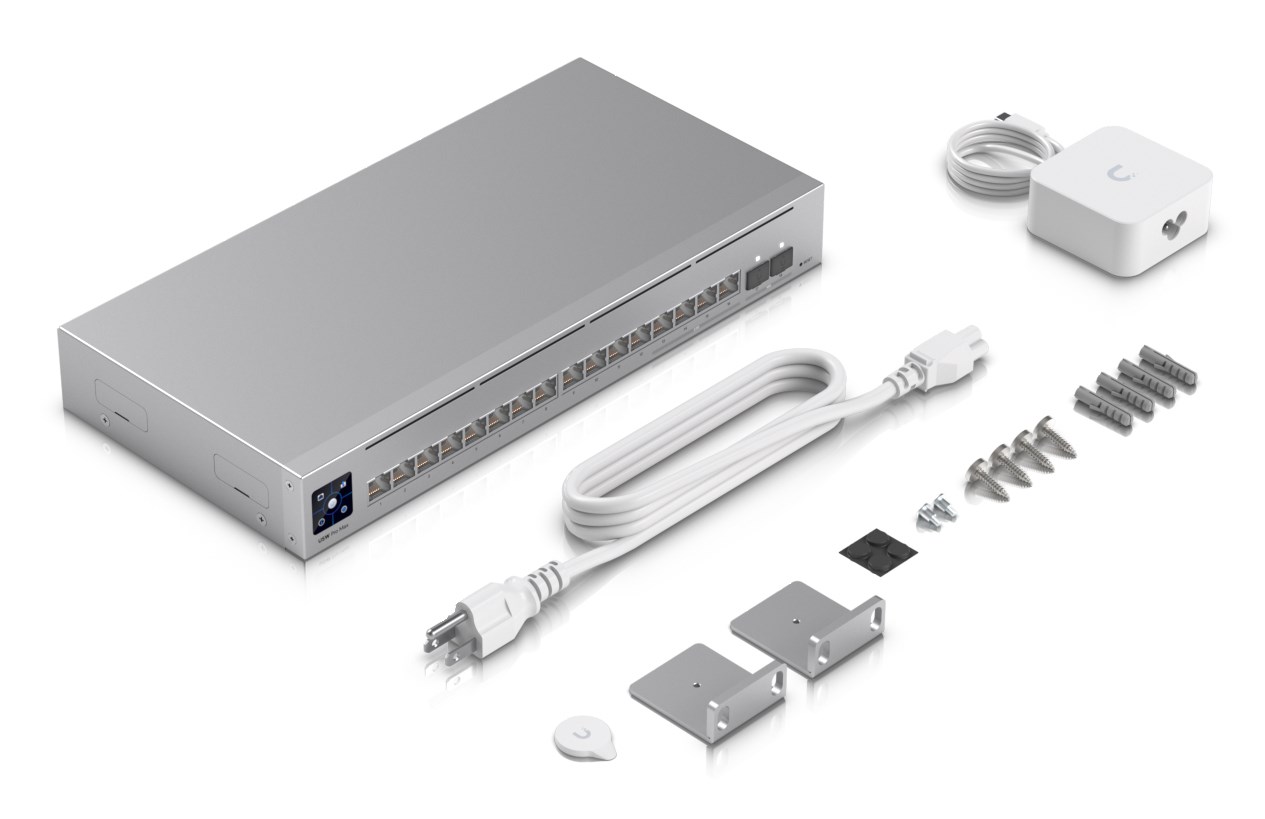

Packaging content

Cables included
Power
Rack mount kit
Yes

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
