Tripp Lite B024-H4U16 16-Port 4K HDMI/USB KVM Switch - 4K 60 Hz Video/Audio, USB Peripheral Sharing, 1U Rack-Mount

Tripp Lite B024-H4U16 16-Port 4K HDMI/USB KVM Switch - 4K 60 Hz Video/Audio, USB Peripheral Sharing, 1U Rack-Mount

Name: Tripp Lite B024-H4U16 16-Port 4K HDMI/USB KVM Switch - 4K 60 Hz Video/Audio, USB Peripheral Sharing, 1U Rack-Mount
Brand: Eaton
SKU: B024-H4U16
Price: 1571.61 EUR
Availability: OutOfStock

Connects 16 HDMI-Enabled Devices to a Single 4K Monitor, Keyboard and Mouse
This rack-mount KVM switch lets you access, control, boot and reboot up to 16 computers or other devices with 4K HDMI ports at the same time. In addition to desktop and notebook computers, the switch also connects up to 16 4K media centers, gaming systems, Blu-ray and DVD players, cable and satellite boxes, DVRs and other HDMI-enabled devices. All 16 computers share one 4K HDMI monitor, USB keyboard and USB mouse, which saves space on your desk or workspace.

Connect up to 256 Computers to One Original Console
You can also cascade up to two levels of B024-H4U16 KVM switches, allowing centralized access to as many as 256 computers using a single monitor, keyboard and mouse.

Switching Between Computers Is Fast and Easy

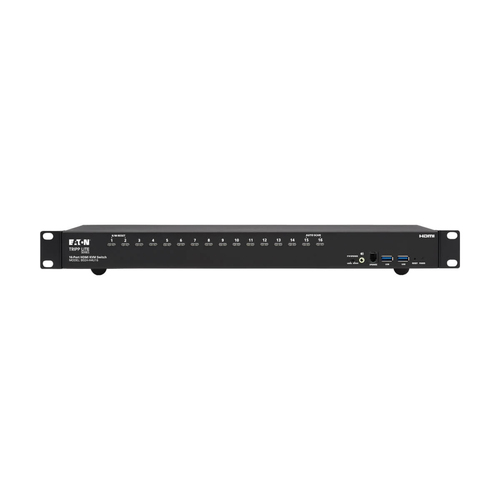

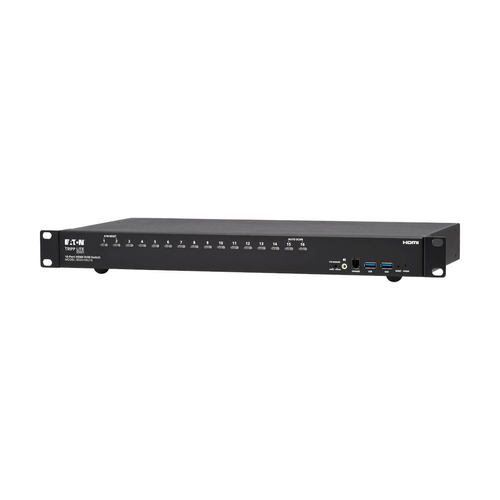

Use the front-panel push buttons, hotkey commands or multi-lingual On-Screen Display (OSD) with text-based interface for quick and easy toggling between computers. Or you can use Auto Scan mode to scan all connected computers in five-second intervals automatically. Orange LEDs indicate which computer is currently selected.

Cables Are Included for Fast and Simple Setup

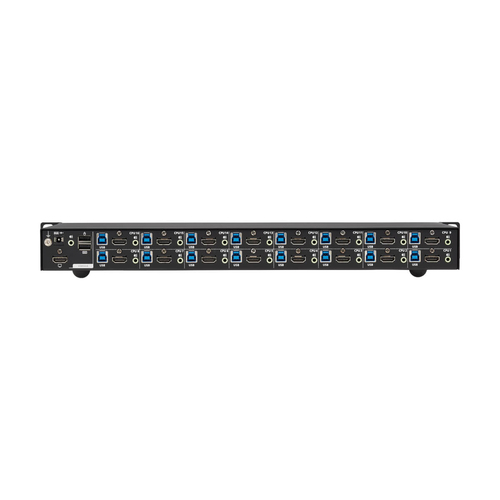

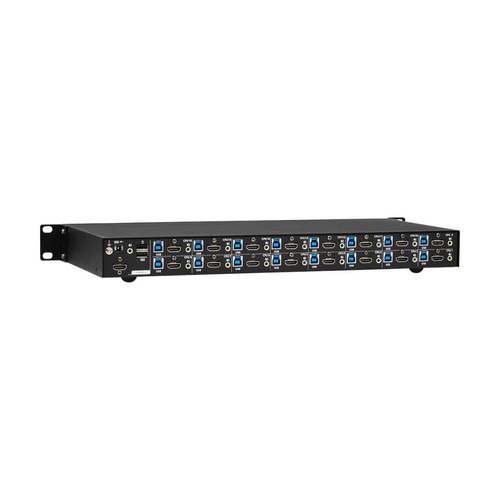

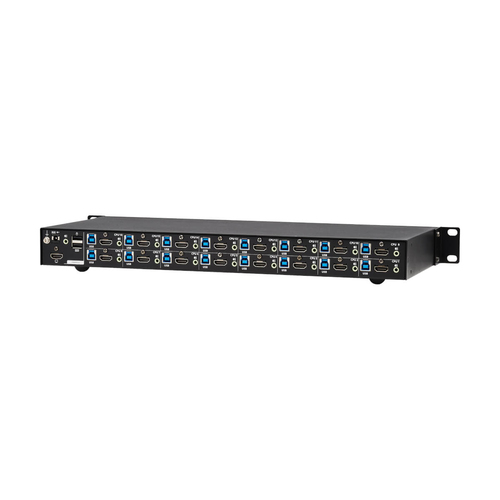

Connect your 4K HDMI monitor, keyboard, mouse, and speakers to the switch’s console ports. Then, use the included 4K HDMI/USB KVM cable kits to connect your computers to the KVM switch. The plug-and-play B024-H4U16 requires no drivers, so you can connect and use it immediately. It works with all major operating systems, including Windows, Mac, Linux, UNIX and Novell.

USB Hub Lets You Share Peripherals between Computers
The built-in USB 3.2 Gen 1 hub allows you to share two USB-A peripherals, such as printers, hard drives, scanners, webcams and flash drives, between all connected computers. Both USB ports support data transfer speeds up to 5 Gbps. Because the USB ports operate independently, you can print documents from one computer while working on a different computer. The hub is backward compatible with previous USB generations. Green LEDs indicate which computer is using the connected USB device.

Transmits True 4K Video and Digital Audio
The B024-H4U16 supports Ultra HD video resolutions up to 4096 x 2160 at 60 Hz with 2.1-channel surround sound audio. With independent audio switching, you can listen to music or other audio from one computer while working on a different computer. The front-panel audio jack has priority over the rear-panel jacks.

Stack Units to Expand Your Workstation and Enhance Your Productivity
Stack as many as eight B024-H4U16 KVM switches to take advantage of multi-display mode. Depending on the number of stages in your stack, your installation may offer dual-display, triple-display, quad-display or multi-display scenarios, up to eight stages.

Designed for Convenient Mounting with Included Hardware

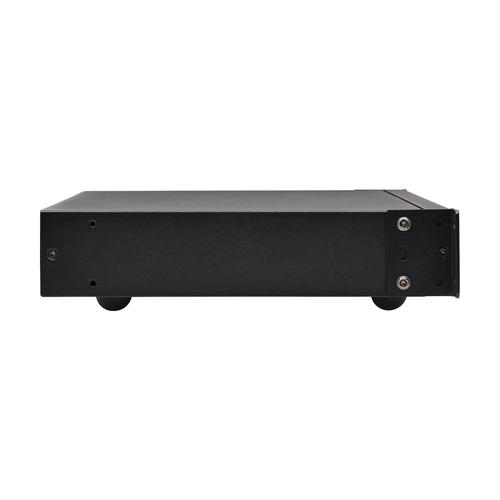

The heavy-duty metal housing comes with mounting hardware for 1U installation in an EIA-standard 19-inch rack. It also allows desktop deployment on included rubber feet that help prevent the unit from sliding. The included power supply comes with international power cords for connecting to an AC power source.

TAA-Compliant for GSA Schedule Purchases
The B024-H4U16 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

ON ORDER

SKU: B024-H4U16

Manufacturer: Eaton Eaton

RRP Price €1,571.61

Specifications

Ports & interfaces

Number of computers controlled

Keyboard port type

USB

Mouse port type

USB

Video port type

HDMI

HDMI ports quantity

HDMI version

1.4

USB 2.0 Type-B ports quantity

Console ports

3.5mm headphone, HDMI, USB A

Console USB ports quantity

USB hub

Yes

USB 2.0 Type-A hub ports quantity

USB connector type

USB Type-A, USB Type-B

Audio connections

Yes

Headphone outputs

DC-in jack

Yes

Performance

HD type

UXGA

Maximum resolution

4096 x 2160 pixels

Video bandwidth

60 Hz

HDCP

Yes

Number of users

4 user(s)

Audio channels

2.1

Design

Rack mounting

Yes

Rack capacity

Product colour

Black

Housing material

Metal

Cable length

1.2 m

LED indicators

Yes

Push button

Yes

Hot keys

Yes

Certification

C-Tick; CCC; CE; China RoHS; DOE; GS; LPS; RoHS; TUV; UL; WEEE; cUL, NOM (Mexico), RoHS; CE (Europe); REACH; WEEE; FCC (USA)

Display

Built-in display

On Screen Display (OSD)

Yes

Power

Power source

Input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Input current

1.4 A

Output voltage

12 V

Output current

5 A

External power adapter

Yes

Sustainability

Compliance certificates

CCC, CE, Federal Communications Commission (FCC), REACH, RoHS, WEEE

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Storage relative humidity (H-H)

0 - 80%

Weight & dimensions

Width

214.3 mm

Depth

44 mm

Height

432.4 mm

Weight

3.54 kg

Packaging data

Package width

499.1 mm

Package depth

324.1 mm

Package height

133.1 mm

Package weight

5.62 kg

Package type

Box

Packaging content

Cables included

DC, KVM

Quick installation guide

Yes

Manual

Yes

Rack mount kit

Yes

Rubber feet

Yes

Logistics data

Harmonized System (HS) code

8471.80.1000

Master (outer) case width

515.1 mm

Master (outer) case length

338.1 mm

Master (outer) case height

154.9 mm

Master (outer) case gross weight

6.68 kg

Products per master (outer) case

1 pc(s)

Country of origin

Taiwan

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

3.54 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

Poly Edge E Expansion Module Other

€154.06

Poly Studio R30 USB Video Bar Other

Collaborate with confidenceExperience unparalleled collaboration with advanced video capabilities, superior audio quality, and effortless setup. Enhance productivity, foster inclusivity, and create better connections. Transform the way you work, collaborate, and communicate.

€392.60

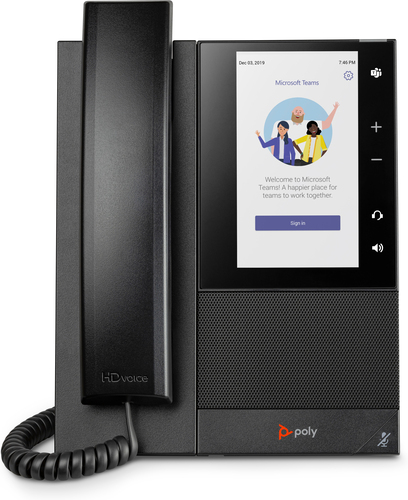

Poly CCX 505 Business Media Phone for Microsoft Teams and PoE-enabled Other

Simply intuitiveBy design, the Poly CCX 500 Series business media phones are simple and intuitive to use — with one-touch-access to your contacts and meetings. So, users can get right to work.

€245.78

Poly Voyager Free 60+ UC Carbon Black Earbuds +BT700 USB-C Adapter +Touchscreen Charge Case Other

True wireless earbuds for work and lifeTune into a world full of sound and free of noise with these earbuds. Whether you’re on a video call or into your playlists, these wireless earbuds are designed to keep you productive, connected and entertained.

€278.71

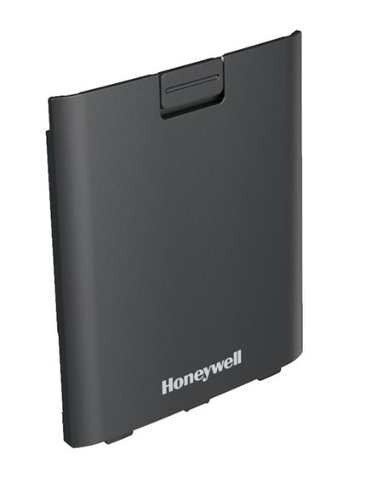

Honeywell CT30P-BTSC-001 handheld mobile computer spare part Battery Other

€76.75

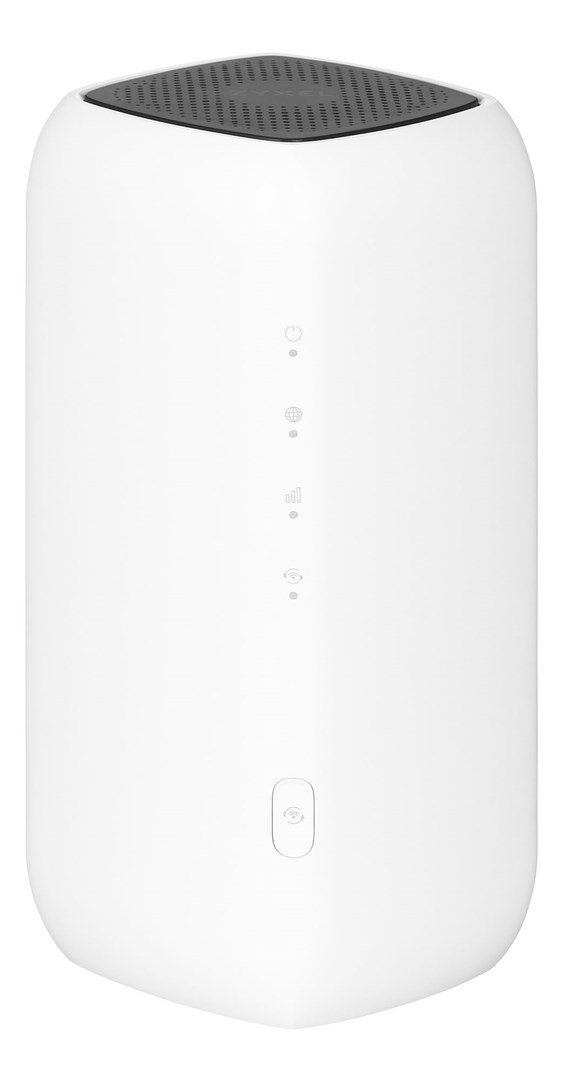

Zyxel FWA505 Cellular network router Other

Nebula FWA505: Your all-in-one 5G NR indoor router. Elevate your connectivity effortlessly with seamless network and cost-effective solutions. Achieve cost efficiency, effort, and time savings. Enjoy worry-free connectivity with professional support, empowering your network’s future success!

€284.27

Poly Voyager 4320 USB-C Headset +BT700 dongle +Charging Stand Other

Cut wires. Cut Costs.Free your workers from their desks with the entry-level Bluetooth wireless headset. Meet the Voyager 4300 UC Series. It’s everything your teams need to stay productive and connect to all their devices whether at home or in the office.

€112.87

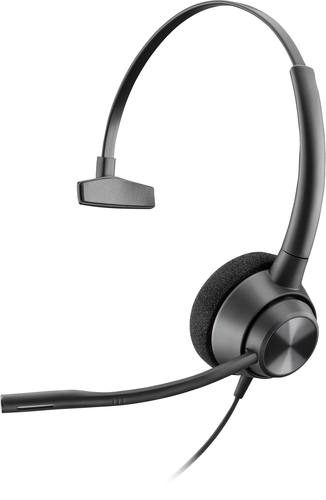

Poly EncorePro 310 Monoaural with Quick Disconnect Headset TAA Other
