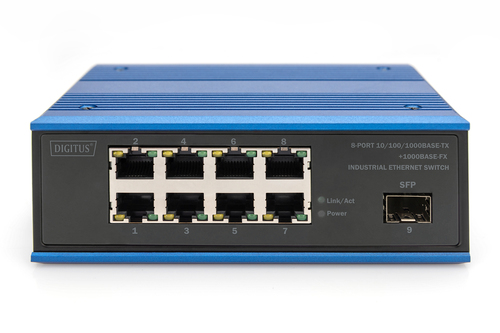

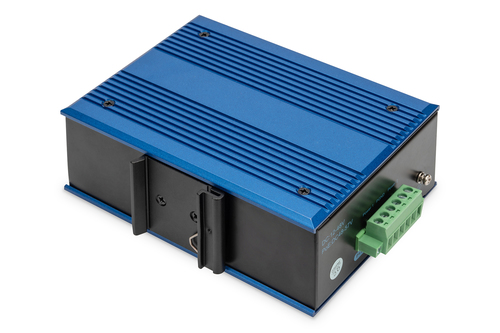

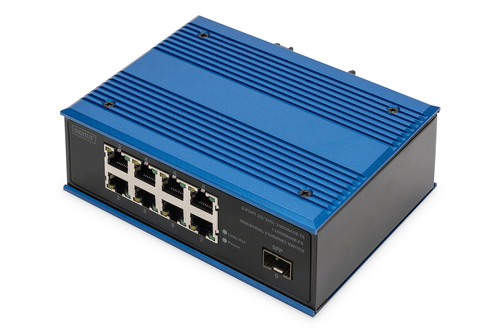

Digitus 8 Port Gigabit Ethernet Network Switch, Industrial, Unmanaged, 1 SFP Uplink

DN-6511316 is a industrial graded 9-port Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment.

- The use of high quality photoelectric integration module to provide good optical and electrical characteristics
- Ensure reliable data transmission and long working life
- Support full duplex or half duplex mode, with automatic negotiation capability
- Network port support automatic cross identification
- Internal storage and forwarding mechanism
- In line with industrial operating standards, the average trouble-free work in more than 300,000 hours
- Working power supply: DC 12-48V to provide reverse protection
- Lightning Surge Protection (Power): 5000A(8/20μs)

DN-651136 is a Industrial PoE Ethernet Switch with 8-Port 10/100/1000 Mbps RJ45 +1 Port 1000Mbps base-FX. The industrial graded switch has the operating temperature of -40℃ ~ 80℃, has the super firmness can adapt to all kinds of harsh environment, can also be conveniently placed in the compact space of the control box. The installation characteristics of the guide rail, wide temperature operation, IP40 protection class housing and LED indicator light make the DN-651136 a plug and play industrial grade device, providing a reliable and convenient solution for users to network their Ethernet devices.

ON ORDER

SKU: DN-651136

Manufacturer: Digitus Digitus

RRP Price €177.68

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
8
SFP module slots quantity
1
Uplink ports quantity
1

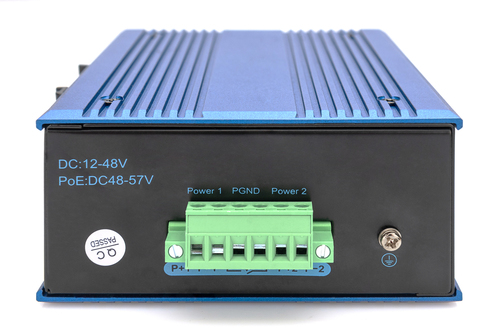

Power connector
Terminal block (6-pin)

Network

Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-TX
Full duplex
Yes
Half duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
VLAN support
No

Optical fiber

Fiber ethernet cabling technology
1000BASE-FX

Data transmission

Switching capacity
1 Gbit/s
Forwarding rate
15 Mpps
MAC address table
8000 entries
Packet buffer memory
2 MB

Design

Rack mounting
No
Stackable
No
Product colour
Black, Blue
Housing material
Aluminium
LED indicators
Yes
International Protection (IP) code
IP40

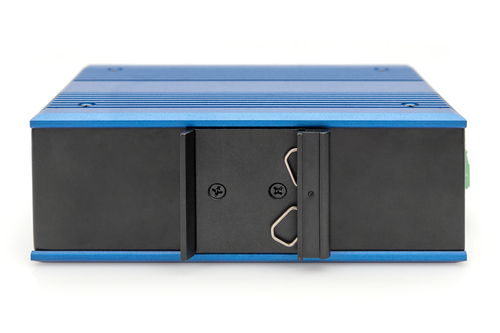

DIN rail mounting
Yes
Vandal-proof
No
Suitable for outdoor use
No

Power

Power source
DC
DC input voltage
12 - 52 V
Power consumption (typical)
3 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Other features

Bandwidth
20 Gbit/s
Ethernet interface type
Gigabit Ethernet

Operational conditions

Operating temperature (T-T)
-40 - 80 °C
Storage temperature (T-T)
-40 - 80 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
143.7 mm
Depth
103 mm
Height
44.2 mm
Weight
560 g

Packaging content

Manual
Yes

Packaging data

Package width
158 mm
Package depth
66 mm
Package height
213 mm
Package volume
2221.16 cm³
Package weight
917.857 g

Logistics data

UK Trade Tariff code
85176200
Country of origin
China
