Digitus Gigabit Ethernet PoE Splitter, Industrial, 60W

The DN-651140 PoE splitter splits the 48VDC over the RJ45 Ethernet cable into 12VDC power output. Supports PoE applications in Gigabit Ethernet environments

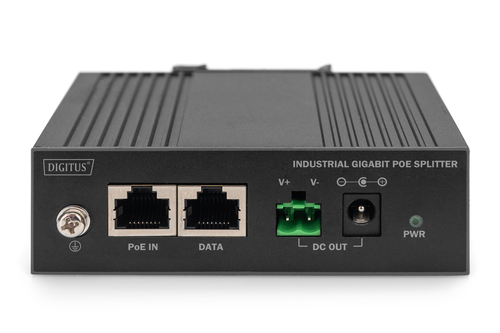

- Ports: 1 10/100/1000M RJ45 PoE Port (DATA + POWER IN), 1 10/100/1000M RJ45 LAN Port (Only DATA),1 Connector (DC OUT)
- Network Media: 10Mbps: Cat 3,4,5 Unshielded Cable, 100Mbps: Cat 5,5E Unshielded Cable, 1000Mbps: Cat 5E, 6 Unshielded Cable
- Pass Through Data Rates: 10/100/1000 Mbps
- Supported Standards:IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x,IEEE802.3af, IEEE802.3at , IEEE802.3bt
- Power Output: 12VDC/4.25A
- Input Power Requirements DC Input Voltage: 36 to 57 Vac
- Indicators: PoE ready / in-use
- Network Media(Cable): 10BASE-T: UTP category 3,4,5 cable (≤100m), 100BASE-TX: UTP category 5 cable (≤100m),1000BASE-T: UTP category 5e cable (≤100m)
- Connectors: Shielded RJ-45, EIA 568A and 568B
- Environmental Conditions: Operating Ambient Temperature:-40 to 75℃
- Operating Humidity:Maximum 90%, Non-condensing
- Storage Temperature:-40 to 75℃
- Storage Humidity:Maximum 95%, Non-condensing
- Regulatory Compliance IEEE 802.3bt, IEEE 802.3at,IEEE 802.3at
- Dimensions (L*W*H):103 *177 *32 mm

The DN-651140 PoE splitter splits the 48VDC over the RJ45 Ethernet cable into 12VDC power output. Supports PoE applications in Gigabit Ethernet environments The modules compliant with IEEE 802.3bt power classification and support PSE Alternative A and Alternative B connections. Maximum power output can reach 51W. 36Vdc to 57Vdc and less external components needed one output decoupling capacitor

ON ORDER

SKU: DN-651140

Manufacturer: Digitus Digitus

RRP Price €76.48

Specifications

Features

Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Cabling technology
10/100/1000Base-T(X)
Power over Ethernet (PoE)
No
Product colour
Black
LED indicators
Yes
Plug and Play
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
2
DC-out jack
Yes

Weight & dimensions

Width
80 mm
Depth
32 mm
Height
108 mm

Packaging content

Cables included
DC
Quick installation guide
Yes
Quantity per pack
1 pc(s)

Packaging data

Package width
188 mm
Package depth
95 mm
Package height
165 mm
Package weight
423.889 g
Package volume
4286.4 cm³

Power

Input voltage
36 - 57 V
Adjustable output voltage
Yes
DC output voltage
12V
Output voltage
12 V
Output power
51 W
Output current
4.25 A
Power auto-sensing
Yes

Logistics data

UK Trade Tariff code
85176200
Country of origin
China
