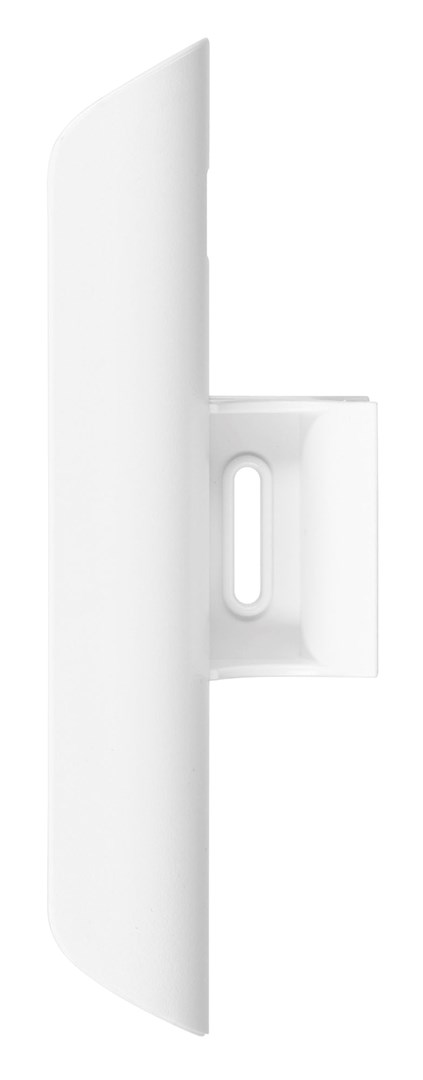

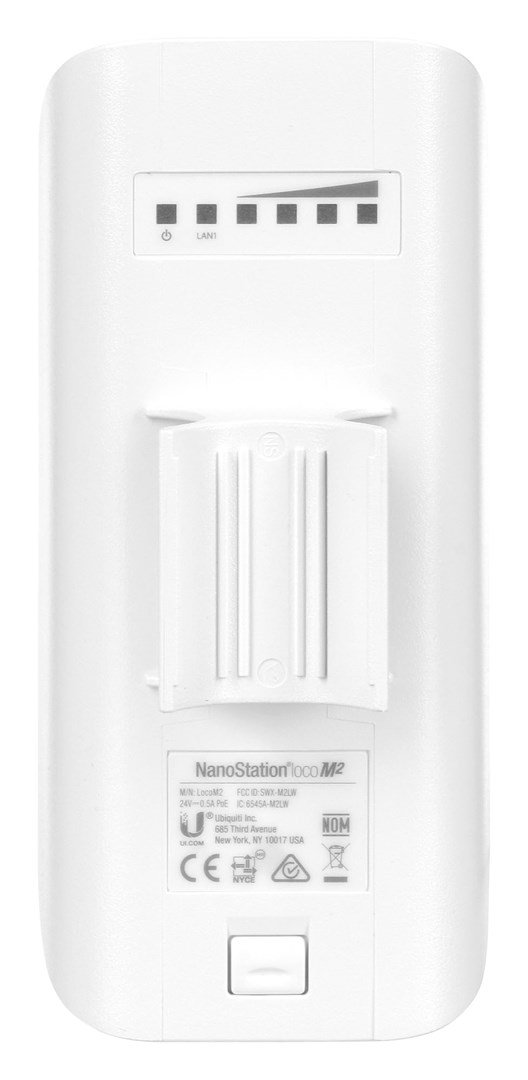

Ubiquiti NanoStation M2 150 Mbit/s White Power over Ethernet (PoE)

Ubiquiti NanoStation M2 150 Mbit/s White Power over Ethernet (PoE)

Name: Ubiquiti NanoStation M2 150 Mbit/s White Power over Ethernet (PoE)
Brand: Ubiquiti
SKU: LOCOM2
Price: 50.13 EUR
Availability: InStock

Compact CPE Design

The NanoStationM features the CPE design that expanded the global Wireless ISP industry.

Plug and Play Installation

The NanoStation M requires no tools for assembly; only a single wrench is required for pole-mounting.

Versatile Application Use

The NanoStation M can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX CPE.

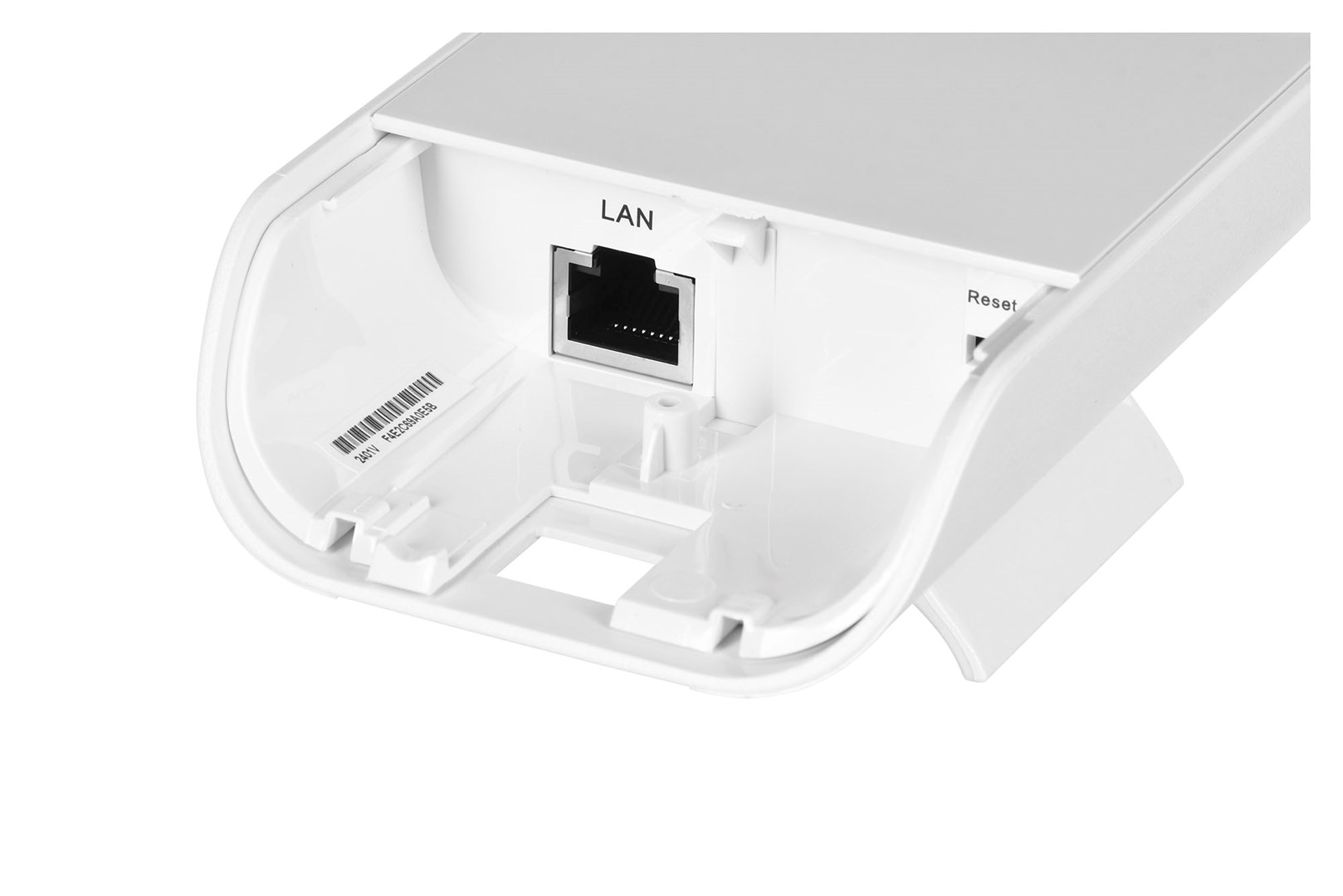

Dual Ethernet Connectivity

With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration.

Advanced Software Technology

Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Window/Wall Mounting Kit

Use the NanoStation Mount to quickly mount the NanoStationM on a window or wall. 180° vertical or horizontal adjustment allows for custom positioning.

200 IN STOCK

SKU: LOCOM2

Manufacturer: Ubiquiti

RRP Price €50.13

Specifications

Features

2.4 GHz

Yes

Maximum data transfer rate

150 Mbit/s

Wi-Fi data rate (max)

150 Mbit/s

Ethernet LAN data rates

10,100 Mbit/s

Frequency band

2.412-2.462 GHz

Networking standards

IEEE 802.3, IEEE 802.3u

Maximum outdoor range

10000 m

Ports & interfaces

Ethernet LAN (RJ-45) ports

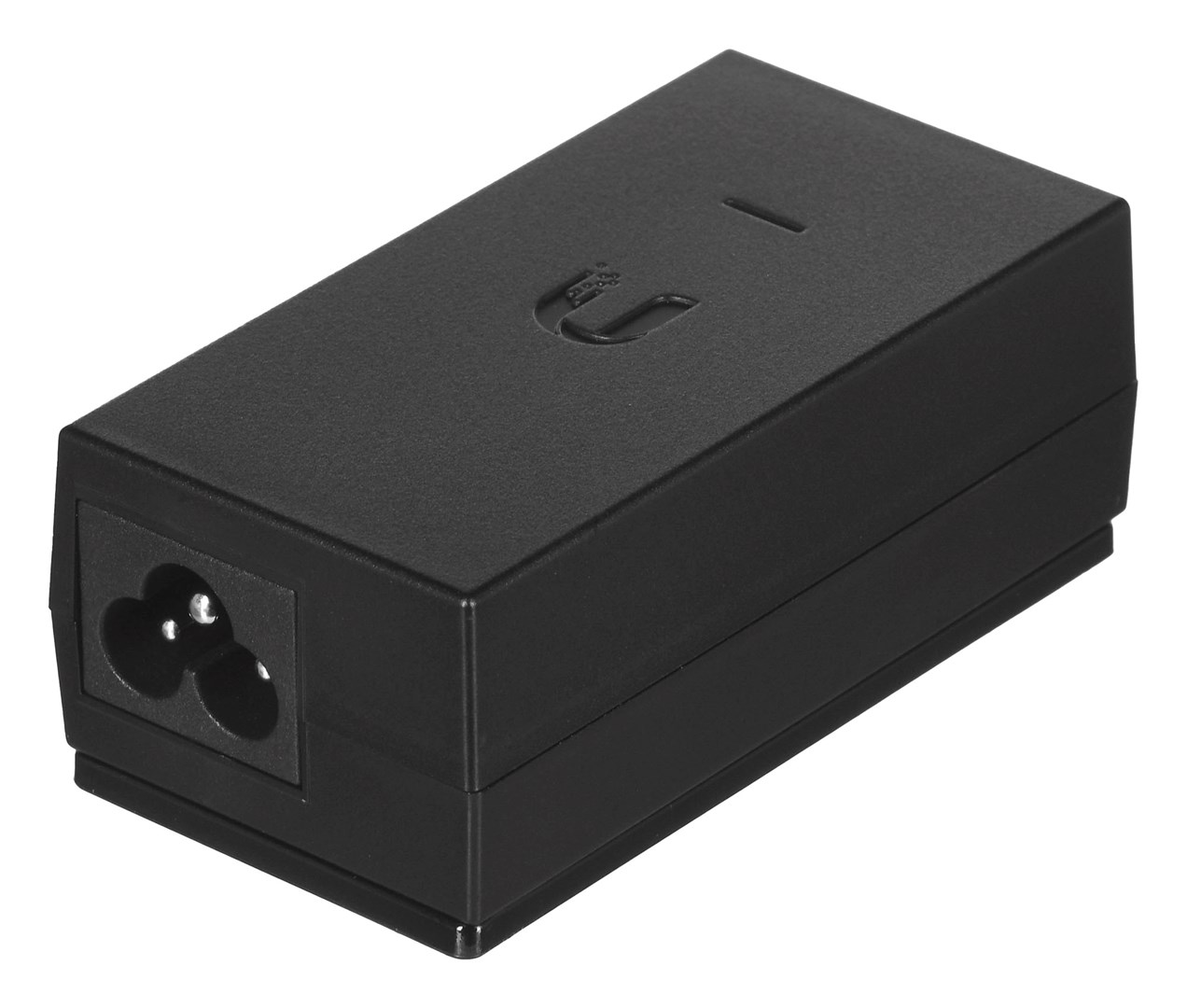

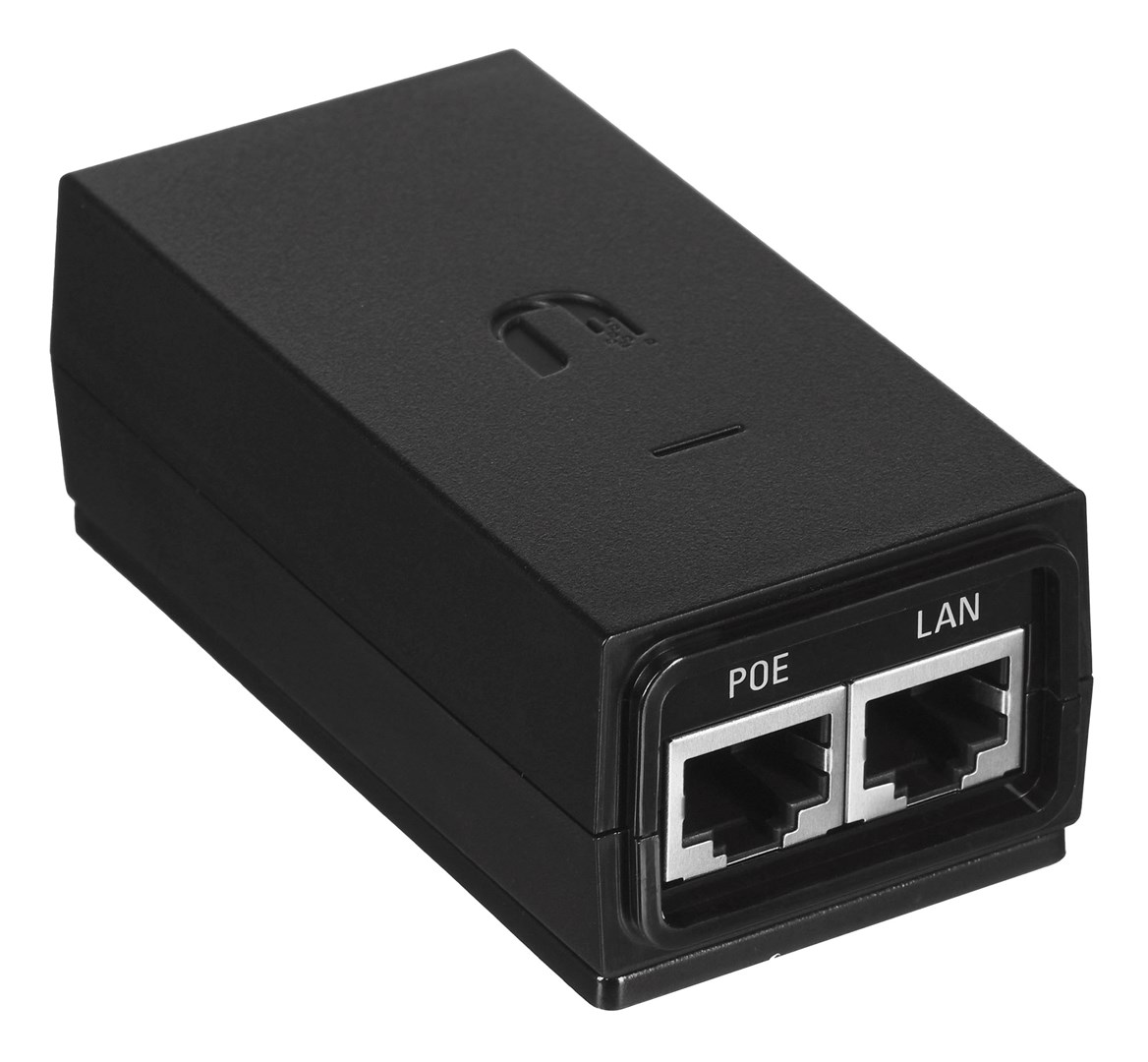

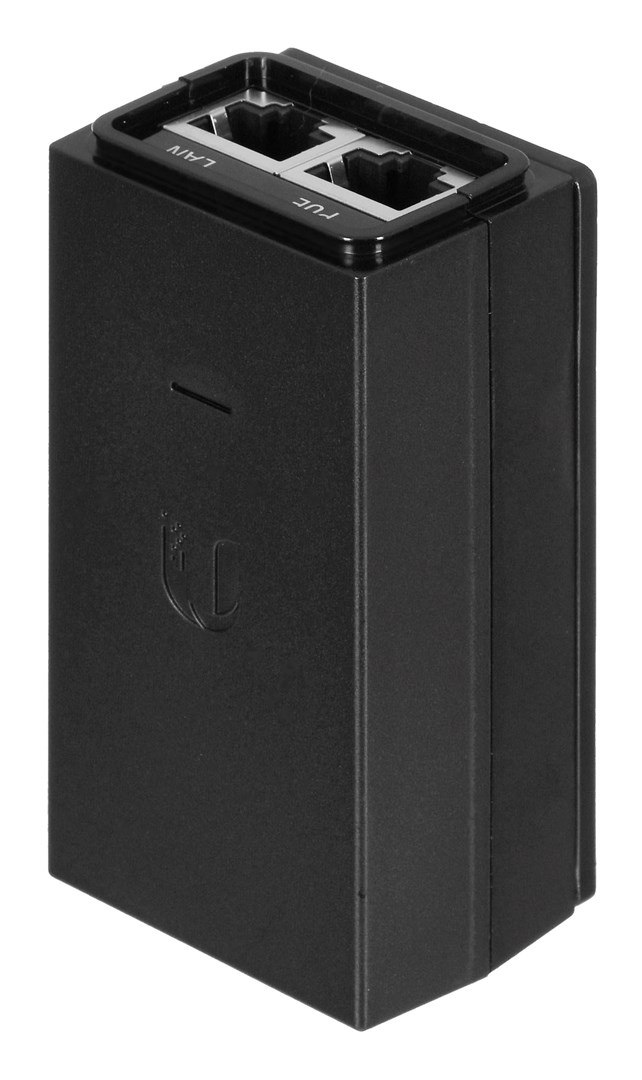

Power

Power over Ethernet (PoE)

Yes

AC input voltage

24 V

Input current

0.5 A

Power consumption (typical)

5.5 W

Design

Product colour

White

Housing material

Plastic

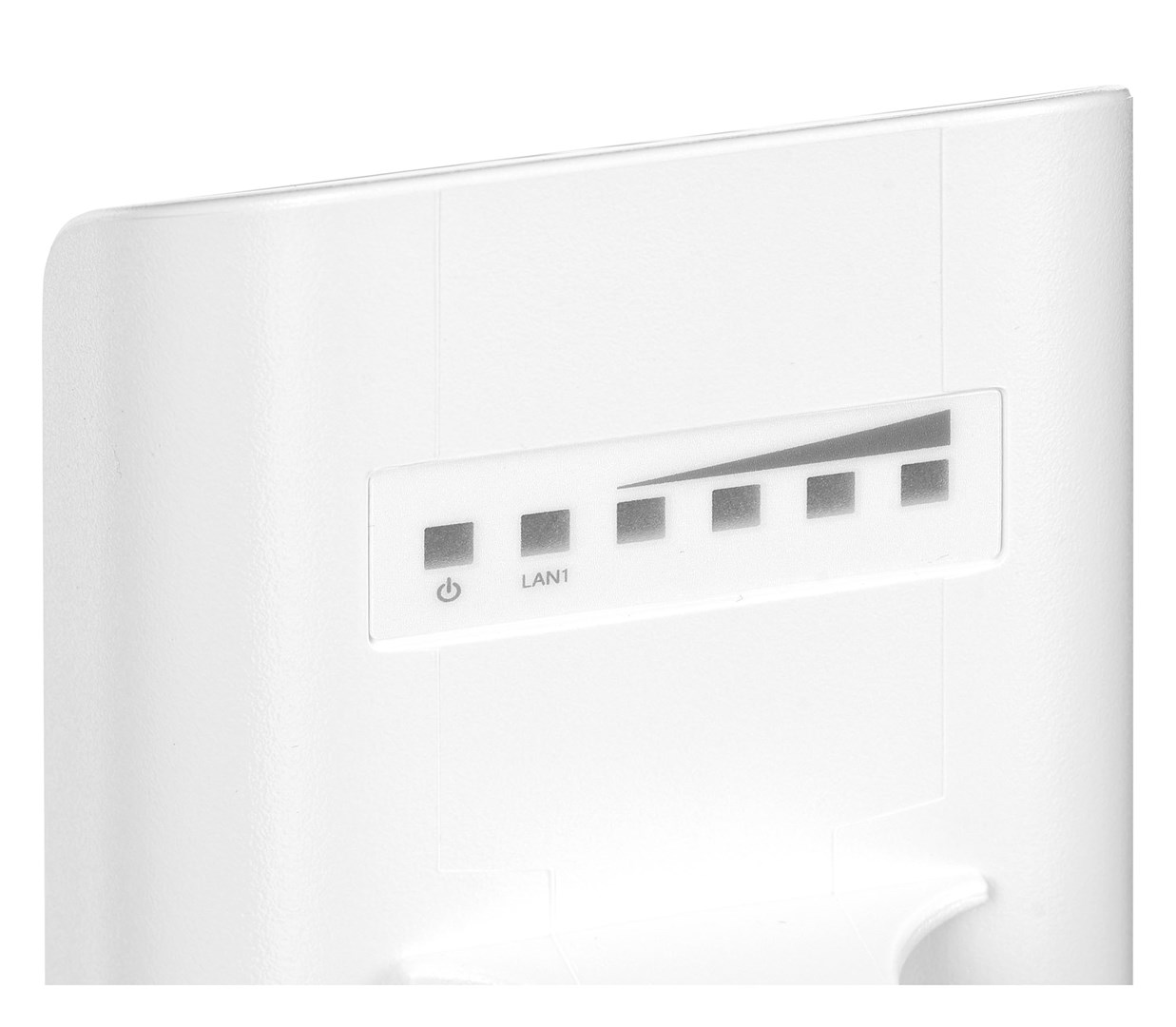

LED indicators

Yes

Internal

Antenna

Antenna gain level (max)

8 dBi

Performance

Built-in processor

Yes

Processor model

Qualcomm Atheros

Processor frequency

400 MHz

Processor architecture

MIPS 24Kc

Flash memory

8 MB

Internal memory

32 MB

Certificates

Certification

RoHS

Weight & dimensions

Width

80 mm

Depth

31 mm

Height

163 mm

Weight

180 g

Operational conditions

Operating relative humidity (H-H)

5 - 95%

Operating temperature (T-T)

-30 - 75 °C

Logistics data

Harmonized System (HS) code

85176990

Description

Manufacturer

Ubiquiti

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

200

Weight

0.18 kg

Country of Origin

N/A
