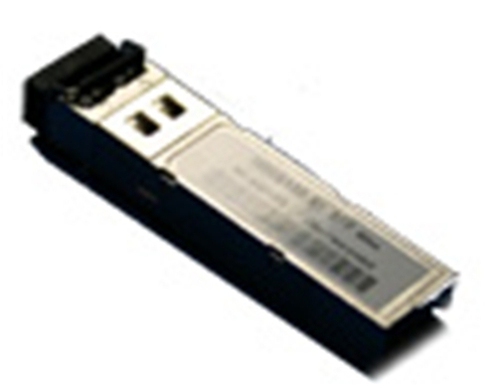

Cisco Meraki MA-SFP-10GB-SR network transceiver module Fiber optic 10000 Mbit/s SFP+ 850 nm

SFP Transceivers are compliant with the Multi-Source Agreement (MSA) ensuring compatibility with a wide range of networking equipment. Select your choice or Copper or Fiber versions that support Fast Ethernet, Gigabit and 10G Ethernet speeds.

ON ORDER

SKU: MA-SFP-10GB-SR

Manufacturer: Cisco Cisco

RRP Price €680.88

Specifications

Performance

SFP transceiver type
Fiber optic
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Multi-mode fiber (MMF) supported
Yes
Fiber optic connector
LC
SFP transceiver standard
SR
Wavelength
850 nm
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u
Cabling technology
10GBASE-SR
Auto MDI/MDI-X
Yes

Features

Hot-Plug support
Yes

Certificates

Certification
MSA

Operational conditions

Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
10 - 80%
Storage relative humidity (H-H)
10 - 85%

Weight & dimensions

Width
13.4 mm
Depth
56.5 mm
Height
8.5 mm

Logistics data

Harmonized System (HS) code
85369010
