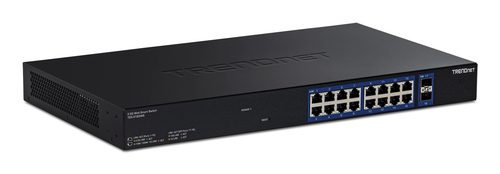

Trendnet 18-PORT MULTI-GIG WEB SMART - Switch Managed 2.5G Ethernet (100/1000/2500) 1U Black

TRENDnet’s 18-Port Multi-Gig Web Smart Switch, model TEG-3182WS, offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of today’s SMB networks. This rack-mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.
Easily manage and configure this web smart managed switch remotely with access to TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and cost. This cloud managed switch require no additional hardware, server, or personal cloud with TRENDnet’s reliable cloud service.
The TEG-3182WS multi-gig managed switch comes equipped with 2.5G RJ-45 ports that provide higher than gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. This multi-gig managed switch also offers two dedicated 10G SFP+ ports for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. The fanless design lowers energy consumption, and eliminates operating noise. TRENDnet’s reliable 2.5G managed switch with 10G SFP+ ports offers a cost-effective solution to increase your network’s throughput.

ON ORDER

SKU: TEG-3182WS

Manufacturer: Trendnet Trendnet

RRP Price €339.42

Specifications

Management features

Switch type
Managed
Quality of Service (QoS) support
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
SFP+ module slots quantity
2

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
Yes
Port mirroring
Yes
Full duplex
Yes
Link aggregation
Yes
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Virtual LAN features
Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN

Data transmission

Switching capacity
120 Gbit/s
MAC address table
16000 entries
Jumbo frames support
Yes
Jumbo frames
12000

Security

IGMP snooping
Yes

Multicast features

Multicast support
Yes

Protocols

Management protocols
SNMP v1, v2c, v3

Design

Rack mounting
Yes
Form factor
1U
Product colour
Black
Reset button
Yes
LED indicators
Yes

Performance

Fanless
Yes
Mean time between failures (MTBF)
714000 h

Power

Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
14.6 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
5 - 50 °C
Operating relative humidity (H-H)
0 - 95%

Weight & dimensions

Width
440 mm
Depth
250 mm
Height
44 mm
Weight
3.05 kg

Accessories

License
