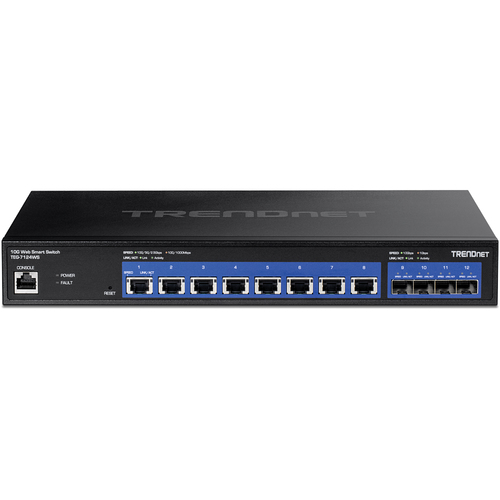

Trendnet TEG-7124WS network switch Managed L2/L3/L4 10G Ethernet (100/1000/10000) 1U Black

TRENDnet’s 10G Web Smart Switch, model TEG-7124WS, is a rack mountable IPv6-ready managed switch that offers advanced traffic management controls for SMB networks. It has an intuitive web-based interface that allows you to configure and monitor various network features. It also supports L2+ IPv4/IPv6 static routing, dynamic ARP inspection, voice VLAN, multicast and IGMP/MLD snooping, and more.

High-Speed 10GBASE-T and 10G SFP+
This switch provides eight 10GBASE-T Ethernet ports and four 10G SFP+ slots for high-speed network connections. You can use them to link up other switches or connect NAS/access servers with 10G capability.

Web Smart Management
This switch has a web-based GUI that simplifies the switch configuration and management. You can access a range of SMB management features such as access control lists, VLANs, QoS, RMON, SNMP trap, and syslog.

Integration Flexibility
This switch supports various network configurations and protocols to meet your network needs. You can use 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling to optimize your network performance and security.

Hardware Design

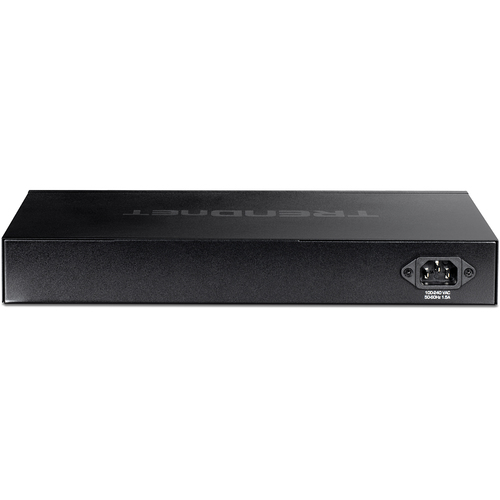

This switch has a sturdy metal housing with a built-in power supply and rackmount brackets. It has a 240Gbps switching capacity and a fanless design that reduces noise and power consumption.

IPv6 Ready
This switch supports IPv6 configuration and IPv6 neighbor discovery. You can use it to future-proof your network for the next generation of IP addresses.

Traffic Management
This switch allows you to manage the traffic on your network with various features. You can use L2+ IPv4/IPv6 static routing to offload routing processes from your router and route traffic at the switch level. You can also use dynamic ARP inspection to protect your devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Moreover, you can use voice VLAN to isolate and prioritize VoIP traffic from normal data traffic.

Troubleshooting
This switch helps you troubleshoot your network issues with a cable diagnostic test and traffic statistics. You can use these tools to identify and resolve network problems quickly and efficiently.

Access Control
This switch supports layered access controls to secure your network from unauthorized access. You can use features such as ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS to authenticate and authorize users and devices on your network.

Monitoring
This switch enables you to monitor your network status and performance with various features. You can use RMON, SNMP, SNMP Trap, and Port Mirroring to collect and analyze network data and alerts.

ON ORDER

SKU: TEG-7124WS

Manufacturer: Trendnet Trendnet

RRP Price €502.37

Specifications

Management features

Switch type
Managed
Switch layer
L2/L3/L4
Quality of Service (QoS) support
Yes
Web-based management
Yes
MIB support
RMON MIB RFC 1271, LLDP MIB IEEE 802.1ab, RFC 1213 MIB II, RFC 1643 Ethernet intf MIB, RFC 1493 bridge MIB

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
10G Ethernet (copper) ports quantity
8
Installed SFP+ modules quantity
4

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
10G support
Yes
Port mirroring
Yes
Full duplex
Yes
IP routing
Yes
Link aggregation
Yes
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Number of VLANs
256

Data transmission

Switching capacity
240 Gbit/s
Forwarding rate
178.56 Mpps
MAC address table
32000 entries
Static route
Yes
Number of IP interfaces
6
Jumbo frames support
Yes
Jumbo frames
1
Packet buffer memory
16 MB

Security

Access Control List (ACL)
Yes
Loop protection
Yes
IP-MAC-Port binding
Yes

Multicast features

Multicast support
Yes
Multicast MAC address table
256 entries
Multicast Listener Discovery (MLD) snooping
v1, v2

Protocols

Management protocols
HTTP/HTTPS
IPv4 & IPv6 features
IPv4/IPv6 access-control list (ACL)

Design

Rack mounting
Yes
Stackable
Yes
Form factor
1U
Product colour
Black
Housing material
Metal
LED indicators
Yes
Number of fans
1 fan(s)

Performance

Noise level
39 dB
Mean time between failures (MTBF)
53900 h

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
0 - 90%

Weight & dimensions

Width
325 mm
Depth
230 mm
Height
44 mm
Weight
1.96 kg

Certificates

Certification
CE, FCC, UL

Accessories

License
