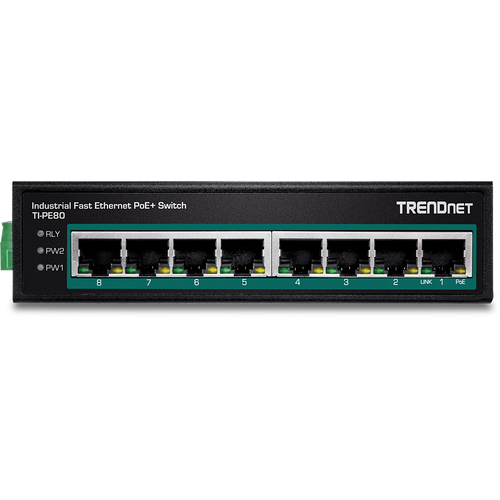

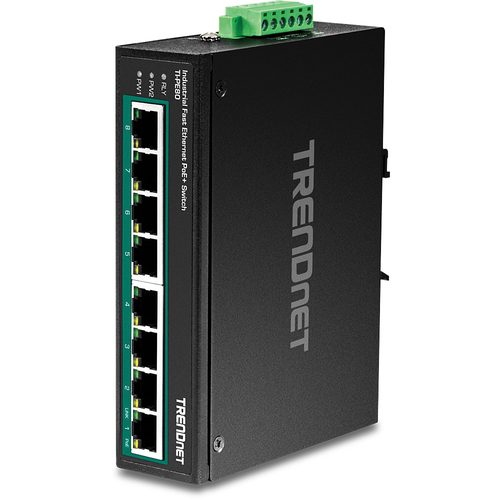

Trendnet TI-PE80 network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black

TRENDnet's Industrial Fast Ethernet PoE+ DIN-Rail Switches feature a rugged IP30 rated metal enclosure. These industrial unmanaged PoE+ switches are designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). Redundant power inputs with overload current protection on each industrial unmanaged PoE+ switch minimizes network downtime.Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Fast Ethernet Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power from the industrial unmanaged PoE+ switch. With these industrial unmanaged PoE+ switches, easily network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

ON ORDER

SKU: TI-PE80

Manufacturer: Trendnet Trendnet

RRP Price €135.71

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support
No
Full duplex
Yes

Data transmission

Switching capacity
1.6 Gbit/s
Forwarding rate
1.19 Mpps
MAC address table
1000 entries
Packet buffer memory
1 MB

Design

Rack mounting
No
Product colour
Black
Housing material
Metal
LED indicators
Yes
International Protection (IP) code
IP30

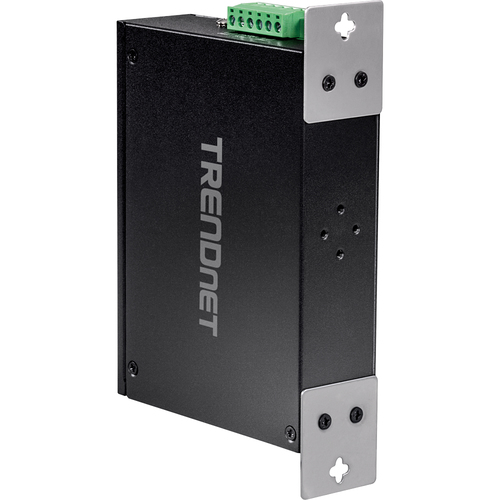

Wall mountable
Yes

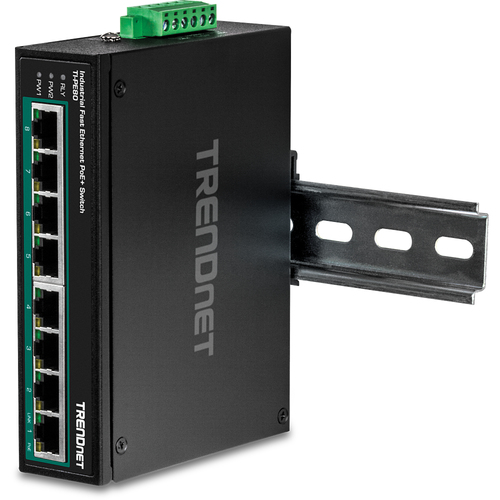

DIN rail mounting
Yes

Performance

Mean time between failures (MTBF)
510304 h

Power

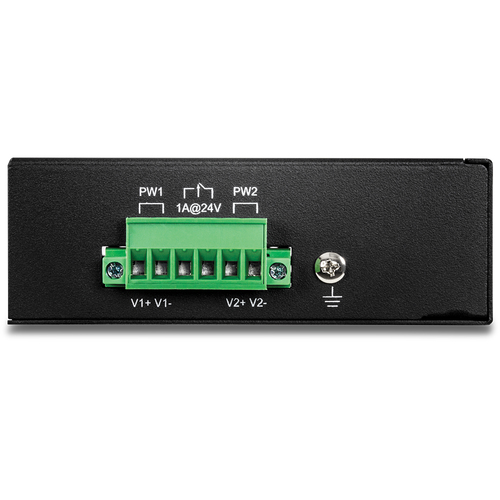

Redundant power supply (RPS) support
Yes
DC input voltage
48 - 56 V
Power consumption (max)
5.76 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
200 W

Operational conditions

Operating temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
0 - 95%

Weight & dimensions

Width
142 mm
Depth
105 mm
Height
37 mm
Weight
486 g

Packaging content

Quick start guide
Yes

Certificates

Certification
CE FCC UL IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6

Logistics data

Harmonized System (HS) code
85176990
