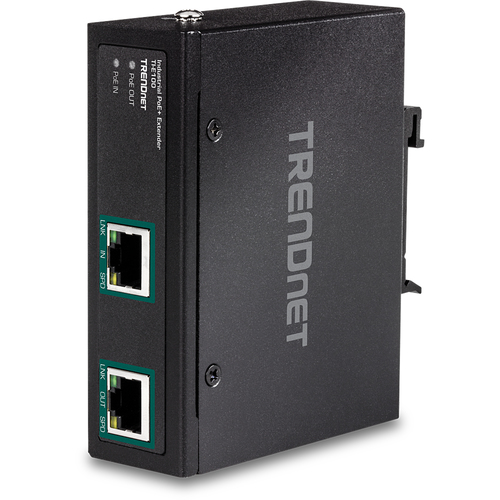

Trendnet TI-E100 network extender Network transmitter Black 10, 100, 1000 Mbit/s

TRENDnet's Industrial Gigabit PoE+ Extender, model TI-E100, takes a single PoE+ connection and extends it an additional 100m (328 ft.) for remote PoE/PoE+ device installation. The industrial PoE+ extender auto-detects a PoE or PoE+ connection, and then extends it for a total distance of up to 200m (656 ft.) from the PoE+ power source equipment. The TI-E100 industrial PoE+ extender features a convenient wall mountable design for installation flexibility. Daisy-chain up to two industrial PoE+ extenders for a total PoE+ network extension of 300m (984 ft.).

PoE Powered
Extends a single PoE/PoE+ network connection up to an additional 100m (328 ft.) for a remote PoE or PoE+ device installation.

Daisy-Chainable
Daisy-chain up to two industrial PoE+ extenders for a total PoE+ network extension of 300m (984 ft.).

Industrial Grade Design
Built for harsh environments, with an IP30 enclosure rating, and a wide operating temperature range of -40°– 75° C (-40° – 167° F).

Extension Distance
Extends a PoE/PoE+ network connection an additional 100m for a total distance of up to 200m (656 ft.) from the PoE power source equipment

PoE/PoE+
Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE (15.4W) or PoE+ (30W) device

Gigabit Ports
The industrial PoE+ extender features one gigabit PoE+ input port and one gigabit PoE+ output port

PoE Powered
No external power required—saves on cost installation time

Daisy-Chain
Connect up to two TI-E100 industrial PoE+ extenders for a total PoE+ network extension of up to 300m (984 ft.)

Industrial Grade Design
Built for harsh environments, with an IP30 enclosure rating, and a wide operating temperature range of -40°– 75° C (-40° – 167° F)

LED Indicators
LED indicators to convey status

ON ORDER

SKU: TI-E100

Manufacturer: Trendnet Trendnet

RRP Price €101.81

Specifications

Performance

Type
Network transmitter
Maximum transfer distance
100 m
Data transfer rate
2000 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Jumbo frames support
Yes
Duplex system
Full, Half
MAC address table
2000 entries
International Protection (IP) code
IP30

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x

Design

Product colour
Black
Housing material
Metal
LED indicators
Yes
Certification
CE, FCC IEC EN60950-1 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6

Power

Power consumption (max)
3.5 W
Power over Ethernet (PoE)
Yes

Operational conditions

Operating temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
0 - 90%

Weight & dimensions

Width
158 mm
Depth
80 mm
Height
32 mm
Weight
158 g

Packaging content

Quick start guide
Yes

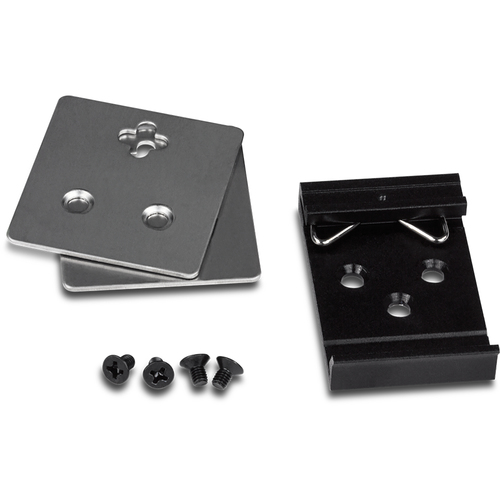

Wall mounting kit
Yes

Logistics data

Harmonized System (HS) code
85176990
