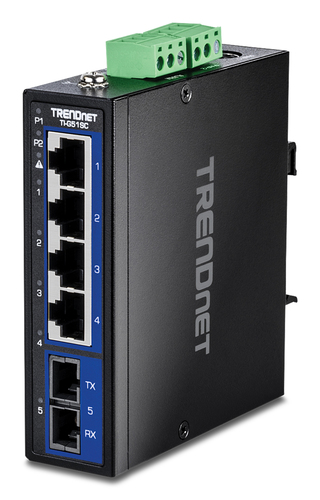

Trendnet TI-G51SC network switch Unmanaged Gigabit Ethernet (10/100/1000) Black

TRENDnet’s 5-Port Industrial Gigabit DIN-Rail Switch with Multi-Mode SC Port, model TI-G51SC, features a rugged IP30 rated metal enclosure and is designed to work in the harshest networking environments. This industrial switch with a fiber port is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures of industrial environments within - 40° – 75° C (-40° – 167° F). Redundant power inputs with overload current protection on the industrial unmanaged switch minimizes network downtime. This hardened industrial switch features copper gigabit ports for high-speed device connections, and a gigabit multi-mode SC port for long-distance fiber networking applications up to 550 meters.

ON ORDER

SKU: TI-G51SC

Manufacturer: Trendnet Trendnet

RRP Price €101.83

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
4
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Fiber ports quantity
1
Fiber optic connector
SC

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Data transmission

Switching capacity
10 Gbit/s
Forwarding rate
7.44 Mpps
MAC address table
2000 entries
Jumbo frames support
Yes
Jumbo frames
9000

Design

Rack mounting
No
Product colour
Black
LED indicators
Yes
International Protection (IP) code
IP30
Wall mountable
Yes
DIN rail mounting
Yes

Performance

Mean time between failures (MTBF)
71955 h

Power

Power source
DC
DC input voltage
9 - 60 V
Power consumption (max)
3.6 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Weight & dimensions

Width
99 mm
Depth
90 mm
Height
28 mm
Weight
292 g

Certificates

Certification
CE FCC LVD
