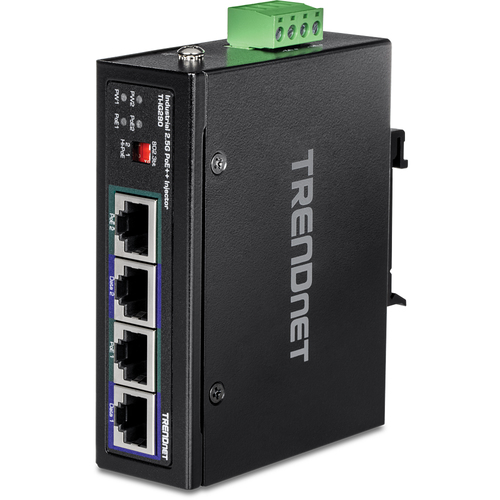

Trendnet TI-IG290 PoE adapter 2.5 Gigabit Ethernet

TRENDnet’s 95W 2-Port Industrial 2.5G PoE++ Injector, model TI-IG290, allows users to add PoE++ power to a non-PoE 2.5G switch. Connect the 2-port industrial 2.5G PoE++ injector to a non-PoE 2.5G switch, and then run Ethernet cables up to 100 meters (328 ft.) to network two PoE/PoE++ devices. This multi-port industrial 2.5G PoE++ injector supplies up to 95W of power to two PoE devices with a total PoE budget of 180W. The fanless design conveniently eliminates operating noise and lowers unnecessary energy consumption. The dual port industrial 2.5G PoE++ injector is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 70° C (-40° – 167° F) for harsh industrial environments.

ON ORDER

SKU: TI-IG290

Manufacturer: Trendnet Trendnet

RRP Price €162.78

Specifications

Network

Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Duplex system
Full, Half

Features

Product colour
Black
Wall mountable
Yes
Mean time between failures (MTBF)
716685 h
Auto-negotiation
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
4
RJ-45 input ports
2
RJ-45 output ports
2

Power

Output power
96 W
Input voltage
52 – 56
Power consumption (max)
95 W
Total Power over Ethernet (PoE) budget
180 W

Certificates

Compliance certificates
CE
Certification
FCC IEC EN60950-1 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6

Sustainability

Sustainability compliance
Yes

Operational conditions

Operating temperature (T-T)
-40 - 75 °C

Weight & dimensions

Width
81 mm
Depth
30 mm
Height
103 mm
Weight
170 g

Packaging content

Number of products included
1 pc(s)
Wall mounting kit
Yes
Quick installation guide
Yes
Packaging content
Wall

Accessories
