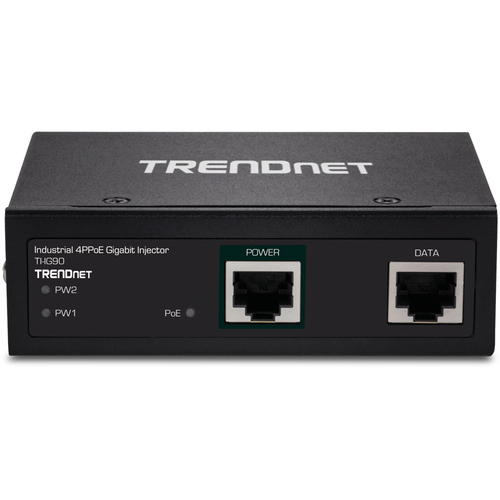

Trendnet TI-IG90 PoE adapter Gigabit Ethernet

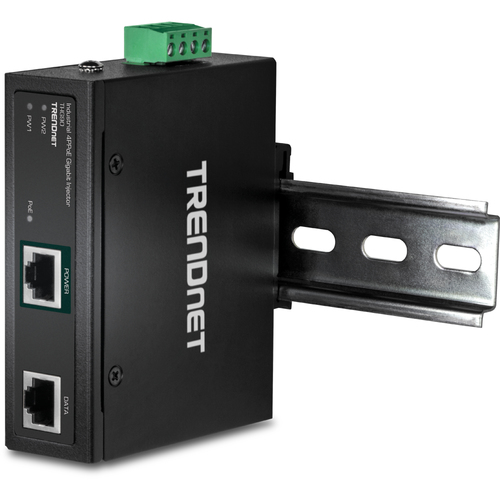

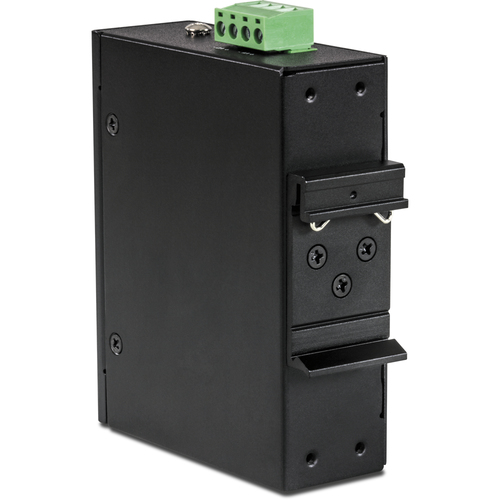

TRENDnet’s TI-IG90 is a reliable IP30 rated Industrial Gigabit 4PPoE Injector with hardened components rated for extreme and rugged industrial environments. Connect the TI-IG90 industrial PoE injector to a non-PoE Gigabit switch, and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE device. The TI-IG90 industrial PoE injector supplies power to a PoE, PoE+, UPoE, or 4PPoE (up to 90W) device. This industrial PoE injector features redundant power inputs with overload current protection to support zero downtime applications. Both DIN-rail and wall mount hardware are included with the industrial PoE injector.
- 1 x Gigabit port
- 1 x 4PPoE Gigabit port

ON ORDER

SKU: TI-IG90

Manufacturer: Trendnet Trendnet

RRP Price €128.93

Specifications

Network

Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Power over Ethernet (PoE)
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u
Duplex system
Full, Half

Features

Product colour
Black
Wall mountable
Yes
Surge protection
Yes
Maximum operating distance
100 m
LED indicators
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
2
DC-in jack
Yes

Power

Input voltage
52 – 56
Total Power over Ethernet (PoE) budget
90 W

Certificates

Certification
CE FCC IEC EN60950-1 Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6)

Operational conditions

Operating temperature (T-T)
-40 - 75 °C

Weight & dimensions

Width
104 mm
Depth
82 mm
Height
32 mm
Weight
154 g

Packaging content

Number of products included
1 pc(s)
Wall mounting kit
Yes
Quick installation guide
Yes

Logistics data

Harmonized System (HS) code
85044095
