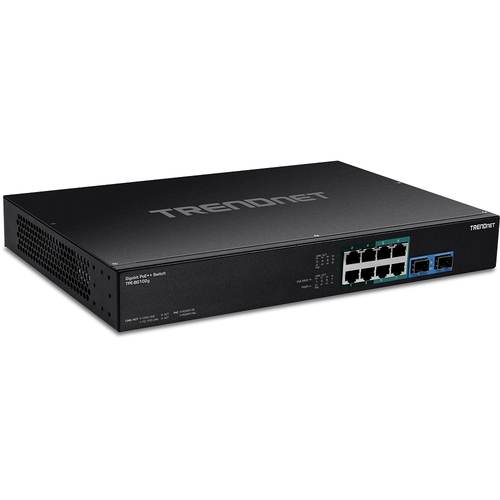

Trendnet TPE-BG102G network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

TPE-BG102G

- 4 x Gigabit PoE++ ports (up to 95W)
- 4 x Gigabit PoE+ ports (up to 30W)
- 2 x Gigabit SFP Slots
- 240W PoE power budget
- 20Gbps switching capacity
- Internal power supply
- Fanless design for silent operation
- Sturdy 1U 19” rack mountable metal housing

ON ORDER

SKU: TPE-BG102G

Manufacturer: Trendnet Trendnet

RRP Price €264.96

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
2

Network

Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
10G support
No
Full duplex
Yes
Half duplex
Yes

Data transmission

Switching capacity
20 Gbit/s
Forwarding rate
14.88 Mpps
MAC address table
8000 entries
Jumbo frames support
Yes
Jumbo frames
9000

Design

Rack mounting
Yes
Form factor
1U
Product colour
Black
LED indicators
Yes

Performance

Mean time between failures (MTBF)
427588 h

Power

AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
4
Power over Ethernet (PoE) power per port
95 W
Total Power over Ethernet (PoE) budget
240 W

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 90%

Weight & dimensions

Width
330 mm
Depth
230 mm
Height
44 mm
Weight
1.7 kg

Packaging content

Cables included
AC
Quick start guide
Yes
Rack mount kit
Yes

Certificates

Certification
CE, FCC, ETL

Logistics data

Harmonized System (HS) code
85176990

Accessories
