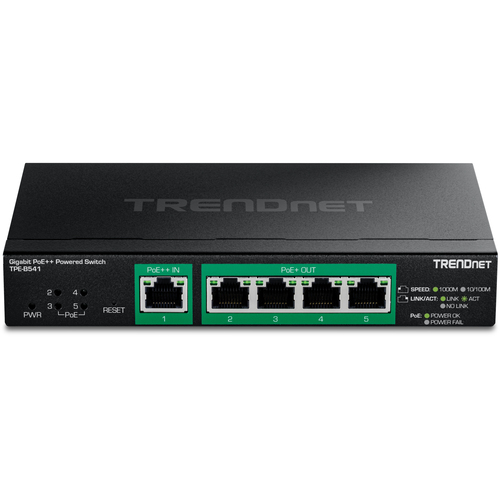

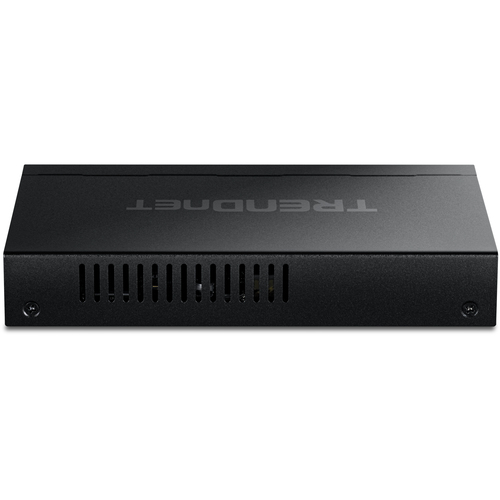

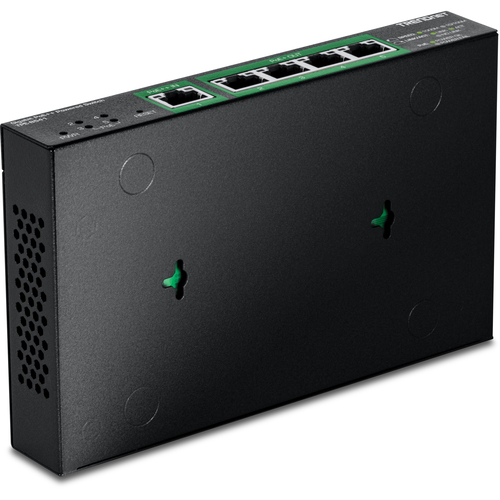

Trendnet TPE-B541 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

TRENDnet’s 5-Port Gigabit PoE++ Powered Managed Switch with PoE Passthrough, model TPE-B541, is powered by a PoE++ switch or injector, no AC adapter is required. The compact PoE++-powered managed switch features four gigabit PoE+ ports to power devices, such as IP cameras, VoIP handsets, and wireless access points, with a 60W total PoE power budget. Reducing unnecessary switch complexity, this PoE++ passthrough managed switch is equipped with management features such as VLANs, QoS, PoE control, and monitoring.

ON ORDER

SKU: TPE-B541

Manufacturer: Trendnet Trendnet

RRP Price €81.81

Specifications

Management features

Switch type
Managed
Quality of Service (QoS) support
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
10G support
No
Full duplex
Yes
Half duplex
Yes
Spanning tree protocol
Yes
Auto-negotiation
Yes
VLAN support
Yes
Virtual LAN features
Port-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs
4094

Data transmission

Switching capacity
10 Gbit/s
Forwarding rate
7.44 Mpps
MAC address table
8000 entries
Jumbo frames support
Yes
Jumbo frames
10000

Security

IGMP snooping
Yes

Multicast features

Multicast support
Yes

Design

Rack mounting
No
Product colour
Black
LED indicators
Yes
Wall mountable
Yes

Performance

Mean time between failures (MTBF)
503726 h

Power

Power source
PoE

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
4
Power over Ethernet 4PPoE (PoE++) ports quantity
1
Total Power over Ethernet (PoE) budget
60 W

Operational conditions

Operating temperature (T-T)
0 - 40 °C

Weight & dimensions

Width
170 mm
Depth
105 mm
Height
28 mm
Weight
450 g

Certificates

Certification
CE FCC LVD
