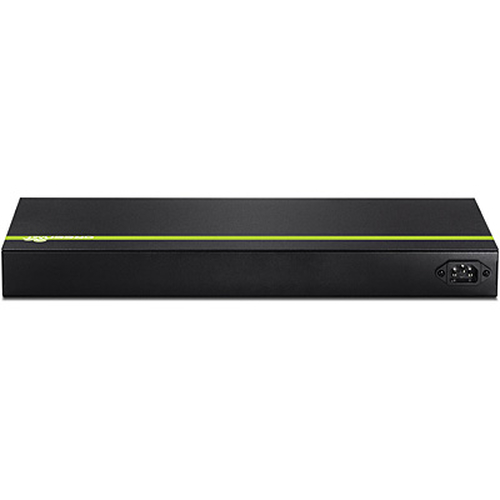

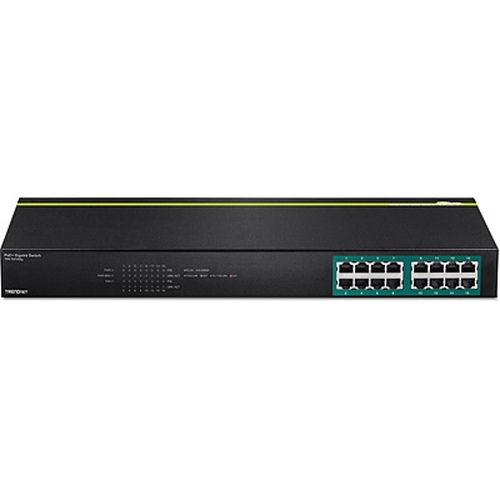

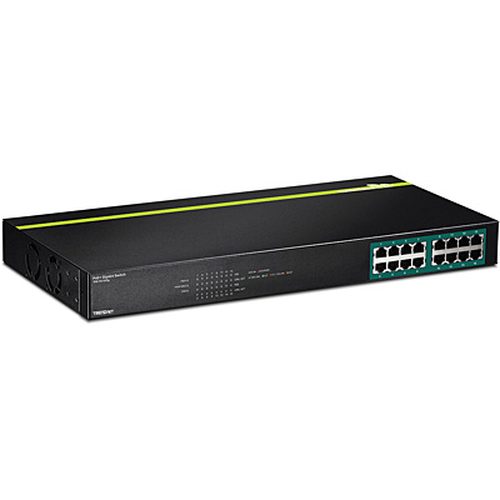

Trendnet TPE-TG160G network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

TRENDnet’s 16-Port Gigabit PoE+ Switch, model TPE-TG160g, offers 16 x Gigabit PoE+ ports, a 32 Gbps switching capacity, and a PoE power budget of 246 Watts. This rugged metal switch comes with a rack mount kit.

PoE Camera Flexibility

The switch recognizes non-PoE, PoE (15.4 W), and PoE+ (30 W) cameras (or other PoE devices) and supplies the required amount of power automatically.

Full PoE Power

The large 246 Watt PoE power budget supplies full PoE power to every port, thereby maximizing the number of allowable connected PoE devices.

Gigabit Networking

All Gigabit ports produce a 32 Gbps switching capacity and support Jumbo Frames up to 10 KB.

ON ORDER

SKU: TPE-TG160G

Manufacturer: Trendnet Trendnet

RRP Price €264.83

Specifications

Management features

Switch type
Unmanaged
Switch layer
L2

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
16

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support
No
Copper ethernet cabling technology
1000BASE-T, 100BASE-TX, 10BASE-T
Full duplex
Yes
Flow control support
Yes

Data transmission

Switching capacity
32 Gbit/s
Throughput
23.8 Mpps
MAC address table
8000 entries

Design

Rack mounting
Yes
Form factor
1U
Product colour
Black
Housing material
Metal
LED indicators
Yes

Performance

Buffer size
512 KB

Power

Power consumption (typical)
36 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
16
Total Power over Ethernet (PoE) budget
246 W

Operational conditions

Operating temperature (T-T)
0 - 40 °C

Weight & dimensions

Width
440 mm
Depth
210 mm
Height
44 mm
Weight
3 kg

Certificates

Certification
CE FCC

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
