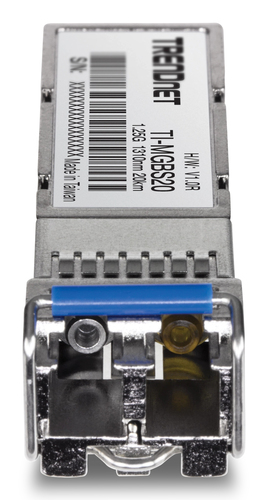

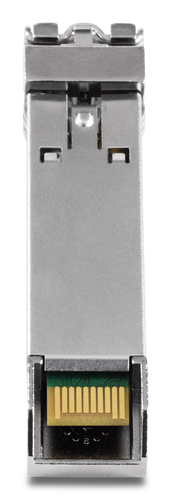

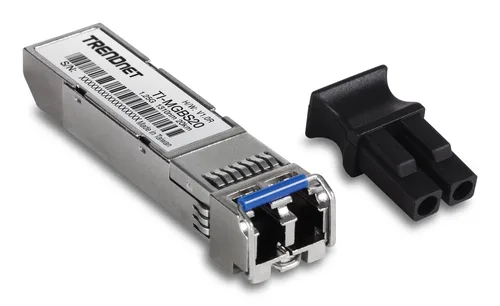

Trendnet TI-MGBS20 network transceiver module Fiber optic 1250 Mbit/s SFP 1310 nm

TRENDnet’s 1000Base-LX Industrial SFP Single -Mode LC Module, model TI-MGBS20, is designed to operate within an extreme temperature range and is well suited for industrial environments. This industrial SFP module works with standard SFP slots found on industrial switches and fiber media converters. The TI-MGBS20 industrial SFP is compatible with duplex LC fiber connector types and supports gigabit single- mode fiber connections at distances of up to 20 km (12.42 mi.).

ON ORDER

SKU: TI-MGBS20

Manufacturer: Trendnet Trendnet

RRP Price €43.47

Specifications

Performance

SFP transceiver type
Fiber optic
Maximum data transfer rate
1250 Mbit/s
Interface type
SFP
Fiber optic connector
LC
Maximum transfer distance
20000 m
Wavelength
1310 nm
Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z

Features

Housing material
Metal
Hot-Plug support
Yes

Power

Power consumption (typical)
1 W

Certificates

Certification
CE FCC

Operational conditions

Operating temperature (T-T)
-40 - 85 °C

Weight & dimensions

Width
58 mm
Depth
13.4 mm
Height
12.6 mm
Weight
19 g
