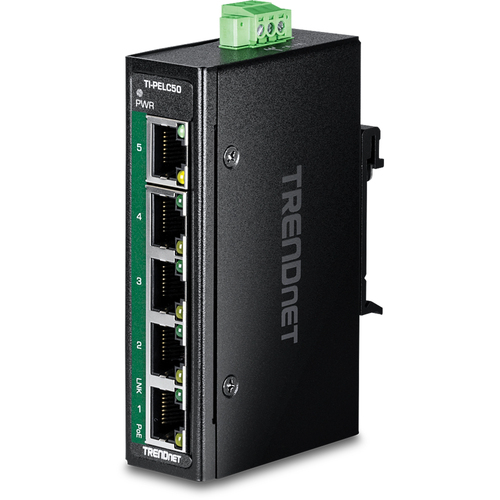

Trendnet TI-PELC50 network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black

TRENDnet’s 5-Port Industrial Fast Ethernet PoE+ DIN-Rail Mini Switch, model TI-PELC50, is a reliable and rugged networking solution designed for use in both extreme and demanding environments. This Industrial Fast Ethernet DIN-Rail Mini Switch features a rugged IP30 rated metal enclosure, and is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). The hardened industrial switch features four Fast Ethernet PoE+ ports and one Fast Ethernet port for high-speed device connections. The mini-sized housing is designed to fit into most compact installation areas.
Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Industrial Fast Ethernet PoE+ Switches by delivering up to 30W per port of PoE+ power and data over existing Ethernet cables. With PoE technology, users only need one cable to deliver both data and power from the industrial unmanaged PoE+ switch. With these industrial unmanaged PoE+ switches, easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

ON ORDER

SKU: TI-PELC50

Manufacturer: Trendnet Trendnet

RRP Price €79.11

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity
5

Network

Networking standards
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support
No
Full duplex
Yes

Data transmission

Switching capacity
1 Gbit/s
Forwarding rate
0.744 Mpps
MAC address table
1000 entries

Design

Rack mounting
Yes
Product colour
Black
LED indicators
Yes

Performance

Mean time between failures (MTBF)
560321 h

Power

Power source
DC/PoE
DC input voltage
48 - 56 V

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
4
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
90 W

Operational conditions

Operating temperature (T-T)
-40 - 70 °C

Weight & dimensions

Width
60 mm
Depth
100.5 mm
Height
25.5 mm
Weight
226 g

Certificates

Certification
CE, FCC

Accessories

License
