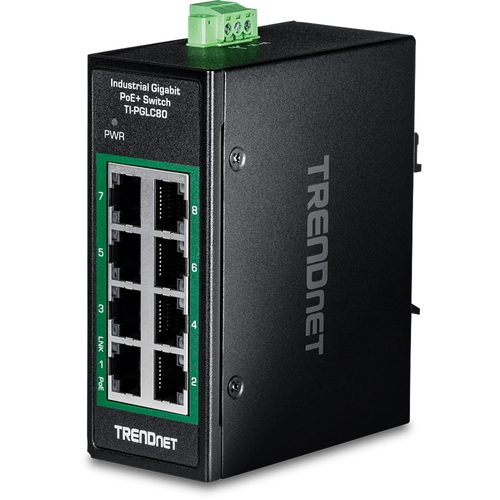

Trendnet TI-PGLC80 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

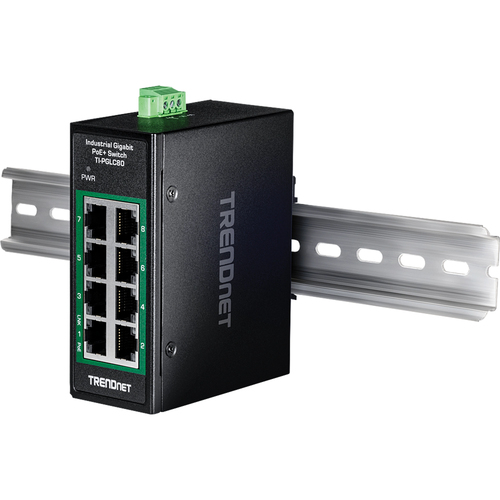

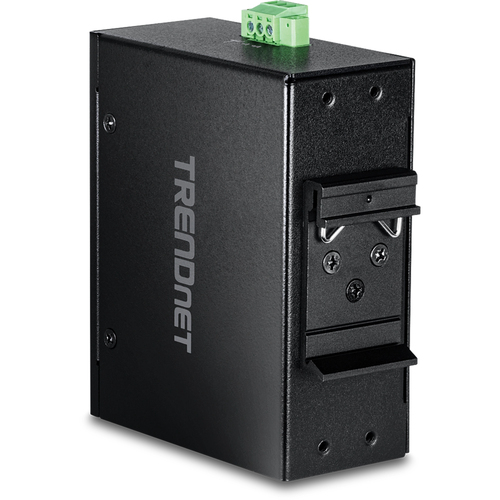

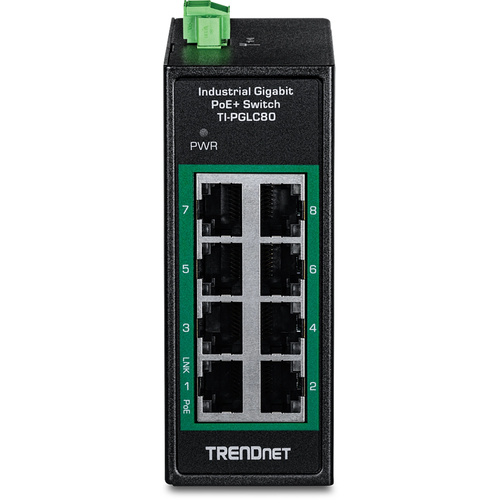

TRENDnet’s 8-Port Industrial Gigabit PoE+ DIN-Rail Mini Switch, model TI-PGLC80, is a reliable and rugged networking solution designed for use in both extreme and demanding environments. This Industrial Gigabit DIN-Rail Mini Switch features a rugged IP30 rated metal enclosure, and is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). The hardened industrial switch features eight copper gigabit PoE+ ports for high-speed device connections. The mini-sized housing is designed to fit into most compact installation areas.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Industrial Gigabit PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one cable to deliver both data and power from the industrial unmanaged PoE+ switch. With these industrial unmanaged PoE+ switches, easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

ON ORDER

SKU: TI-PGLC80

Manufacturer: Trendnet Trendnet

RRP Price €149.59

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
No
Full duplex
Yes
Half duplex
Yes
Auto-negotiation
Yes

Data transmission

Switching capacity
16 Gbit/s
Forwarding rate
11.58 Mpps
MAC address table
4000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
9000

Design

Rack mounting
No
Product colour
Black
LED indicators
Yes
International Protection (IP) code
IP30
Wall mountable
Yes
DIN rail mounting
Yes

Performance

Mean time between failures (MTBF)
1357000 h

Power

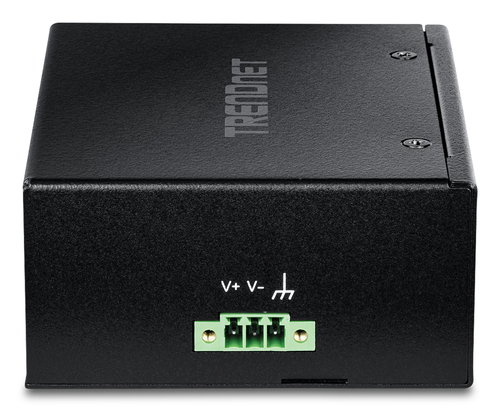

Power source
DC/PoE
DC input voltage
48 - 56 V
Power consumption (max)
4.48 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
90 W

Operational conditions

Operating temperature (T-T)
-40 - 75 °C

Weight & dimensions

Width
100 mm
Depth
81 mm
Height
39 mm
Weight
371 g

Certificates

Certification
CE FCC
