Trendnet TPE-1620WSF network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Trendnet TPE-1620WSF network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Name: Trendnet TPE-1620WSF network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Brand: Trendnet
SKU: TPE-1620WSF
Price: 427.55 EUR
Availability: OutOfStock

TRENDnet’s Gigabit Web Smart PoE+ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for SMB networks. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with the easy to use voice VLAN feature.

Free up router resources by offloading routing processes to the managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. TRENDnet’s web smart managed switches also feature SFP slots to support long-distance fiber networking applications.

Web Smart Management
Provides an easy-to-use web-based management interface for reduced switch configuration complexity and offers a combination of SMB management features for easy deployment.

Integration Flexibility
Managed switch features include access control lists, VLAN, IGMP/MLD snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.

PoE Power
The 370W total PoE power budget on this high-power PoE managed switch supplies 16 Power over Ethernet devices with up to 30W per port.

Hardware Design

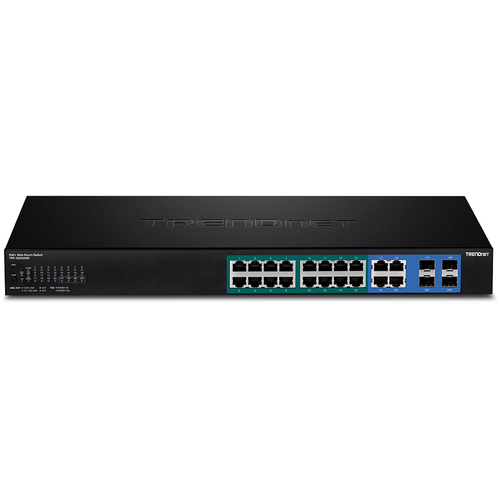

Provides 16 gigabit PoE+ ports, 4 shared gigabit ports (RJ-45 or SFP), a 40Gbps switching capacity, and 1U 19” rackmount design with brackets included

PoE Power
The 370W total PoE power budget on this high-power PoE managed switch supplies 16 Power over Ethernet devices with up to 30W per port

IPv6 Ready
This managed switch supports IPv6 configuration and IPv6 neighbor discovery

Traffic Management
Managed switch features include: Link aggregation, 802.1Q VLAN, Voice VLAN, Multicast VLAN, RSTP, MSTP, Loopback Detection, QoS, and port bandwidth management

IP Routing
Offload routing processes to the managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level

Dynamic ARP Inspection
Dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets

Troubleshooting
A convenient cable diagnostic test and traffic statistics aid in network troubleshooting

Access Control
Includes ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS

Monitoring
RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions

Smart Fans
Smart fans save energy by auto-adjusting the fan speed and use based on cooling needs

ON ORDER

SKU: TPE-1620WSF

Manufacturer: Trendnet

RRP Price €427.55

Specifications

Management features

Switch type

Managed

Switch layer

L2/L3

Quality of Service (QoS) support

Yes

Web-based management

Yes

Cloud-managed

Yes

System event log

Yes

User operation log

Yes

MIB support

MIB II

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper) ports quantity

SFP28 ports quantity

Power connector

Terminal block (3-pin)

Network

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10G support

Copper ethernet cabling technology

1000BASE-TX

Port mirroring

Yes

Full duplex

Yes

IP routing

Yes

Policy-based routing

Yes

Flow control support

Yes

Link aggregation

Yes

Rate limiting

Yes

Auto MDI/MDI-X

Yes

Ethernet LAN data rates

10,100,480,800,1000 Mbit/s

Auto-negotiation

Yes

Active link detection

Yes

VLAN support

Yes

Virtual LAN features

MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN

Number of VLANs

296

Data transmission

Switching capacity

32 Gbit/s

Throughput

23.8 Mpps

MAC address table

16000 entries

Static route

Yes

Jumbo frames support

Yes

Security

DHCP features

DHCP client, DHCP server

Access Control List (ACL)

Yes

IGMP snooping

Yes

Security algorithms

802.1x RADIUS, SSL/TLS

SSH/SSL support

Yes

IP-MAC-Port binding

Yes

Password protection

Yes

MAC address entries

Dynamic MAC address entries, Static MAC address entries

Multicast features

Multicast support

Yes

Protocols

Management protocols

HTTP/HTTPS (SSL v2/3 TLS), Web-based GUI, SNMP v1/v2c/v3, LLDP, RMON v1

Design

Rack mounting

Yes

Form factor

Product colour

Black

LED indicators

Yes

Performance

Mean time between failures (MTBF)

192382 h

Power

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Power consumption (max)

460 W

Power over Ethernet (PoE)

Yes

Power over Ethernet (PoE) type supported

Active PoE

Power over Ethernet plus (PoE+) ports quantity

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

370 W

Operational conditions

Operating temperature (T-T)

-5 - 50 °C

Operating relative humidity (H-H)

10 - 90%

Weight & dimensions

Width

250 mm

Depth

44 mm

Height

440 mm

Weight

3.89 kg

Packaging content

Cables included

Quick start guide

Yes

Rack mount kit

Yes

Certificates

Certification

CE, FCC, UL

Logistics data

Harmonized System (HS) code

85176990

Description

Manufacturer

Trendnet

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

3.89 kg

Country of Origin

N/A

Datasheet

No Data Sheet Found!

Accessories

No Accessories Found!

License

No License Found!
