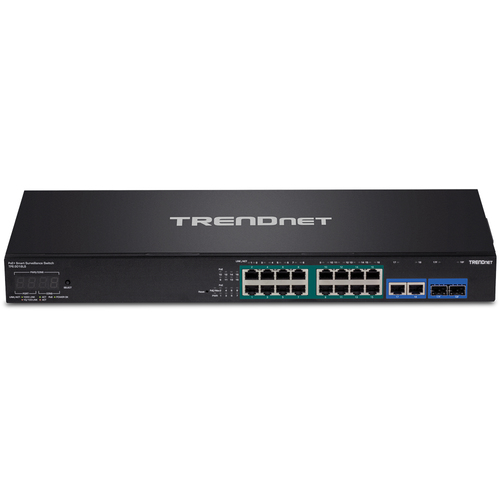

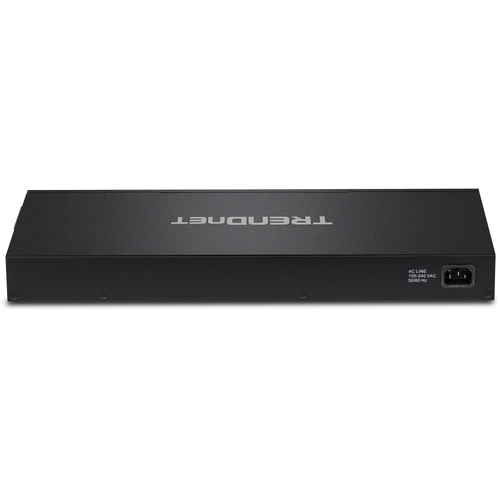

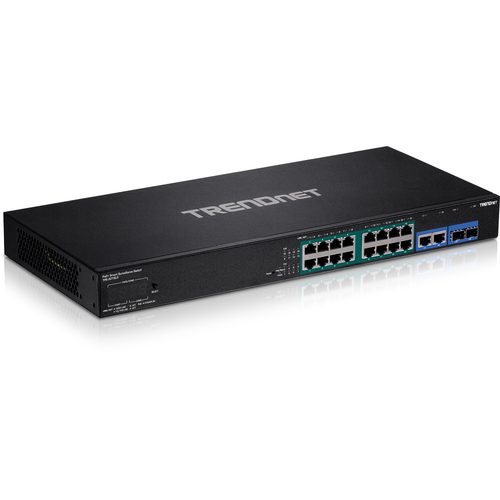

Trendnet TPE-3018LS network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

18-Port Gigabit PoE+ Smart Surveillance Switch

16 x Gigabit PoE+ ports
2 x Shared Gigabit ports (RJ-45 or SFP)
220W PoE power budget
Easy-to-use web-based management interface
Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping
Extend PoE+ signal up to 656 ft./200m at 10Mbps
Front panel 4-digit LED display provides PoE power statistics
Surveillance mode GUI for simplified configuration and network monitoring
Device discovery for ONVIF compliant IP cameras and NVRs
Upload building floorplans to create an E-map of surveillance devices

ON ORDER

SKU: TPE-3018LS

Manufacturer: Trendnet Trendnet

RRP Price €305.84

Specifications

Management features

Switch type
Managed
Quality of Service (QoS) support
Yes
Web-based management
Yes
MIB support
RMON MIB RFC 1271, IPV4 MIB RFC 1213, SNMP MIB RFC 3415

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
18
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Fiber ports quantity
2
Fiber optic connector
SFP

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
No
Full duplex
Yes
Broadcast storm control
Yes
Head-of-line (HOL) blocking
Yes
MAC address auto-learning supported
Yes
VLAN support
Yes
Virtual LAN features
MAC address-based VLAN, Tagged VLAN, Voice VLAN

Data transmission

Switching capacity
36 Gbit/s
Forwarding rate
26.7 Mpps
MAC address table
8000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
10000

Security

DHCP features
DHCP snooping
Access Control List (ACL)
Yes
IGMP snooping
Yes
IGMP entries
1000
IP-MAC-Port binding
Yes

Design

Rack mounting
Yes
Form factor
1U
Product colour
Black
LED indicators
Yes
Number of fans
1 fan(s)

Performance

Noise level
60.1 dB
Mean time between failures (MTBF)
331516 h

Power

Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
14 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
PoE+
Power over Ethernet plus (PoE+) ports quantity
16
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
220 W

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 90%

Weight & dimensions

Width
440 mm
Depth
195 mm
Height
44.4 mm
Weight
2.93 kg

Packaging content

Cables included
AC
Quick start guide
Yes
Rack mount kit
Yes

Certificates

Certification
CE, FCC, ETL

Logistics data

Harmonized System (HS) code
85176990
