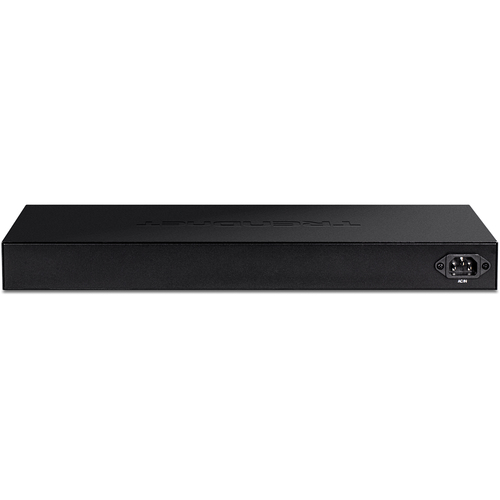

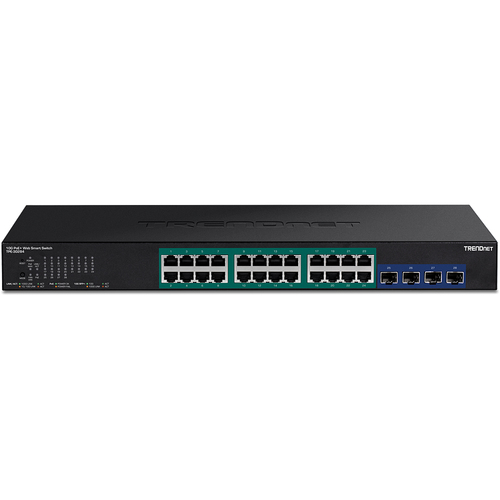

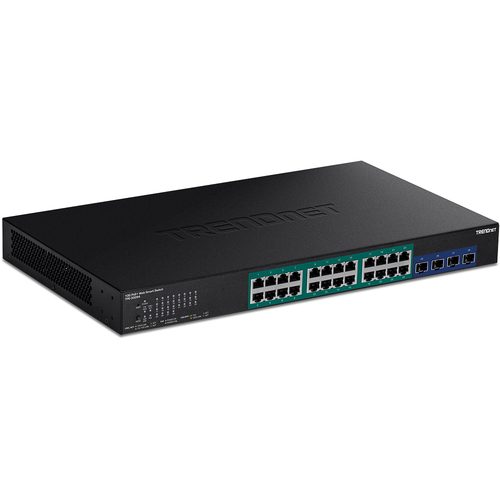

Trendnet TPE-30284 network switch Managed L2/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

TRENDnet's Gigabit Web Smart PoE+ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for SMB networks. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with the easy-to-use voice VLAN feature.

ON ORDER

SKU: TPE-30284

Manufacturer: Trendnet Trendnet

RRP Price €461.43

Specifications

Management features

Switch type
Managed
Switch layer
L2/L4
Quality of Service (QoS) support
Yes
ARP inspection
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity
4

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
Yes
Port mirroring
Yes
Full duplex
Yes
Half duplex
Yes
Link aggregation
Yes
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Virtual LAN features
MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs
4094

Data transmission

Switching capacity
128 Gbit/s
Forwarding rate
95.2 Mpps
MAC address table
16000 entries
Jumbo frames support
Yes
Jumbo frames
12000
Packet buffer memory
1.5 MB

Security

DHCP features
DHCP snooping
Access Control List (ACL)
Yes
IGMP snooping
Yes
Security algorithms
HTTPS, SNMP, SNMPv2, SNMPv3, SSH-2, SSL/TLS
Loop protection
Yes
IP-MAC-Port binding
Yes
Queue scheduling algorithms
SP, Weighted Round Robin (WRR)

Multicast features

Multicast support
Yes
Multicast MAC address table
256 entries

Design

Rack mounting
Yes
Form factor
1U
Product colour
Black
LED indicators
Yes
Number of fans
2 fan(s)

Performance

Noise level
52.2 dB
Mean time between failures (MTBF)
287724 h

Power

Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
23.7 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
24
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
370 W

Operational conditions

Operating temperature (T-T)
-5 - 50 °C
Operating relative humidity (H-H)
0 - 95%

Weight & dimensions

Width
440 mm
Depth
249 mm
Height
44 mm
Weight
3.94 kg

Packaging content

Cables included
AC
Quick start guide
Yes
Rack mount kit
Yes

Certificates

Certification
CE FCC

Logistics data

Harmonized System (HS) code
85176990
