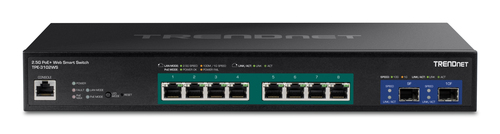

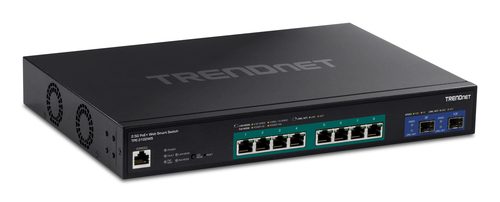

Trendnet TPE-3102WS network switch Managed 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Black

TRENDnet’s Multi-Gigabit Web Smart PoE+ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. Each of these rack-mountable IPv6-ready managed switches come with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making these 2.5G managed PoE+ switches with 10G SFP+ slots powerful solutions for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.

These multi-gigabit managed PoE+ switches come equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. Each multi-gig managed PoE+ switch also offers two dedicated 10G SFP+ slots for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. The switch design lowers energy consumption and eliminates distracting operating noise. TRENDnet’s reliable 2.5G managed PoE+ switches with 10G SFP+ slots offer cost-effective solutions to increase your network’s throughput.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Multi-Gig Web Smart Managed PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With these 2.5G managed PoE+ switches, network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

ON ORDER

SKU: TPE-3102WS

Manufacturer: Trendnet Trendnet

RRP Price €312.56

Specifications

Management features

Switch type
Managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
SFP+ module slots quantity
2

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3x, IEEE 802.3z
10G support
Yes
Link aggregation
Yes
VLAN support
Yes
Virtual LAN features
Private VLAN, Tagged VLAN, Voice VLAN
Number of VLANs
4094

Data transmission

Switching capacity
80 Gbit/s
Forwarding rate
59.52 Mpps
MAC address table
16000 entries
Jumbo frames support
Yes
Jumbo frames
10000
Packet buffer memory
1.5 MB

Security

DHCP features
DHCP snooping
IGMP snooping
Yes

Protocols

Management protocols
SNMP v1, v2c, v3

Design

Rack mounting
Yes
Product colour
Black
Number of fans
1 fan(s)

Performance

Noise level
48.5 dB
Mean time between failures (MTBF)
342321 h

Power

Power source
AC/PoE
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
60 W
Power protection features
Over current, Short circuit

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
240 W

Operational conditions

Operating temperature (T-T)
0 - 40 °C

Weight & dimensions

Width
300 mm
Depth
230 mm
Height
44 mm
Weight
2.27 kg

Certificates

Certification
CE FCC UL
