Trendnet TI-PG50 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Trendnet TI-PG50 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Name: Trendnet TI-PG50 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Brand: Trendnet
SKU: TI-PG50
Price: 103.76 EUR
Availability: InStock

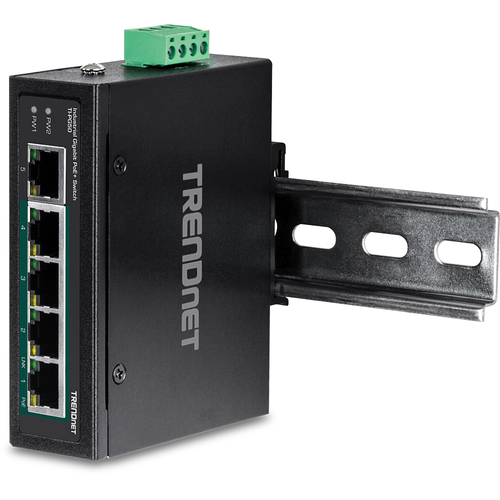

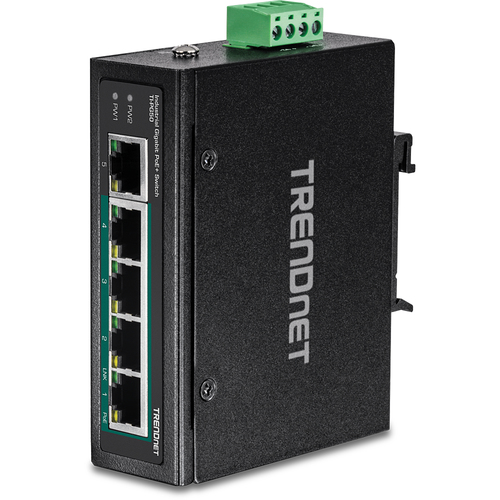

TRENDnet’s 5-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG50, has four gigabit PoE+ ports with a 120W PoE power budget. Users are able to connect four PoE+ devices to this industrial switch, while simultaneously providing a non-PoE gigabit port for connectivity to the network. The TI-PG50 industrial switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.

PoE Power
A 120W PoE+ power budget for up to four Power over Ethernet devices with PoE+ power.

Fault Tolerance
The industrial switch features redundant power inputs with overload current protection.

Industrial Design
Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration and shock, and operate within a wide temperature range of -40° – 75° C (-40° – 167° F).

PoE+ Power Budget
Supplies up to 30W of PoE/PoE+ power per port on the industrial PoE switch with a 120W PoE power budget

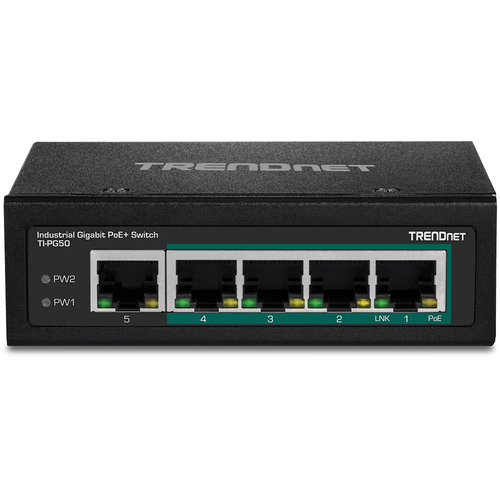

Network Ports
4 x Gigabit PoE+ ports and 1 x Gigabit port

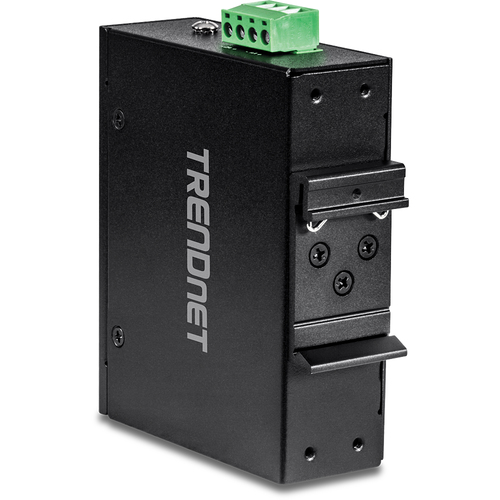

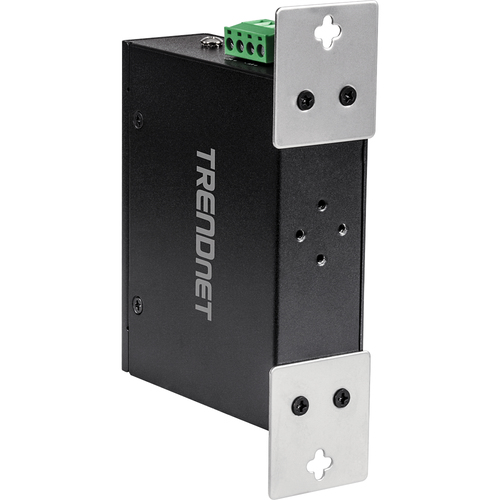

DIN-Rail/Wall Mounts

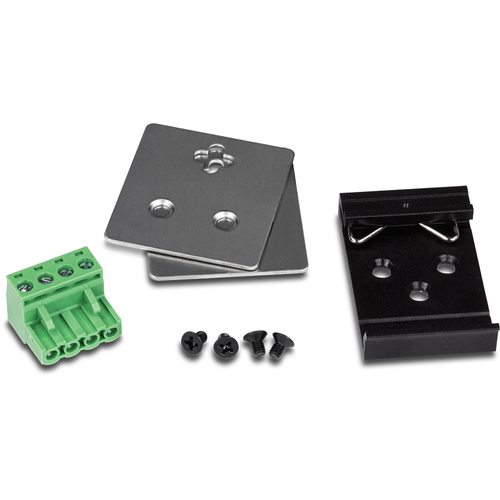

IP30 rated metal enclosure with included DIN-Rail and wall mount hardware

Switching Capacity
10Gbps switching capacity

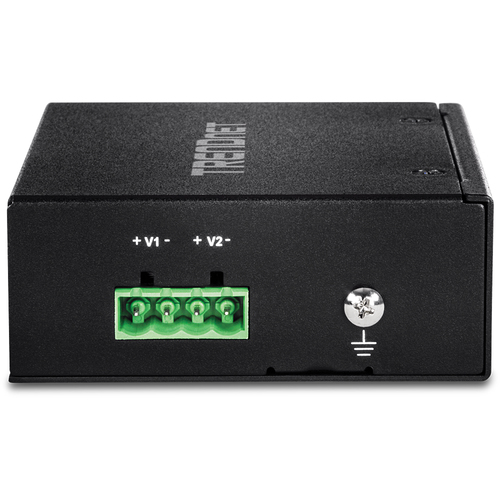

Redundant Power
Redundant power inputs with overload current protection (compatible power supply sold separately models: TI-S12048 / TI-S24048)

Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance

Extreme Temperatures
Industrial switch rated for an operating temperature range of -40° – 75° C (-40° – 167° F)

Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point
Grounding point on the industrial switch protects equipment from external electrical surges

1 IN STOCK

SKU: TI-PG50

Manufacturer: Trendnet

RRP Price €103.76

Specifications

Management features

Switch type

Unmanaged

Quality of Service (QoS) support

Yes

Configuring Location Settings (CLI)

Yes

System event log

Yes

User operation log

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Network

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x

10G support

Copper ethernet cabling technology

1000BASE-T

Port mirroring

Yes

Full duplex

Yes

IP routing

Yes

Policy-based routing

Yes

Flow control support

Yes

Link aggregation

Yes

Auto MDI/MDI-X

Yes

Ethernet LAN data rates

10,100,480,800,1000 Mbit/s

Auto-negotiation

Yes

VLAN support

Yes

Data transmission

Switching capacity

10 Gbit/s

Forwarding rate

7.44 Mpps

MAC address table

2000 entries

Store-and-forward

Yes

Static route

Yes

Jumbo frames support

Yes

Jumbo frames

9000

Packet buffer memory

0.128 MB

Security

DHCP features

DHCP client, DHCP server

Access Control List (ACL)

Yes

IGMP snooping

Yes

IP-MAC-Port binding

Yes

Password protection

Yes

Design

Rack mounting

Yes

Stackable

Product colour

Black

LED indicators

Yes

Wall mountable

Yes

Performance

Mean time between failures (MTBF)

538451 h

Power

Power supply included

DC input voltage

48 - 56 V

Power consumption (max)

2.24 W

Power over Ethernet (PoE)

Yes

Power over Ethernet (PoE) type supported

Active PoE

Power over Ethernet plus (PoE+) ports quantity

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

120 W

Operational conditions

Operating temperature (T-T)

-40 - 75 °C

Operating relative humidity (H-H)

10 - 95%

Weight & dimensions

Width

104 mm

Depth

32 mm

Height

82 mm

Weight

190 g

Packaging content

Quick start guide

Yes

Rack mount kit

Yes

Certificates

Certification

CE, FCC, UL, Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6), IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5

Logistics data

Harmonized System (HS) code

85176990

Description

Manufacturer

Trendnet

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.19 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
