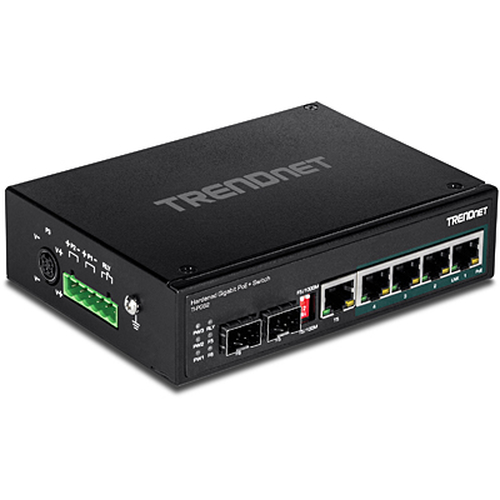

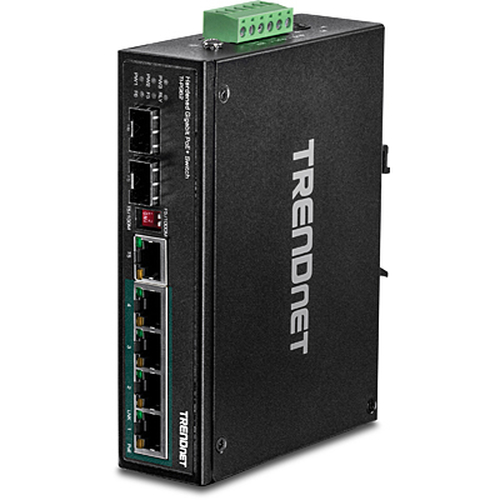

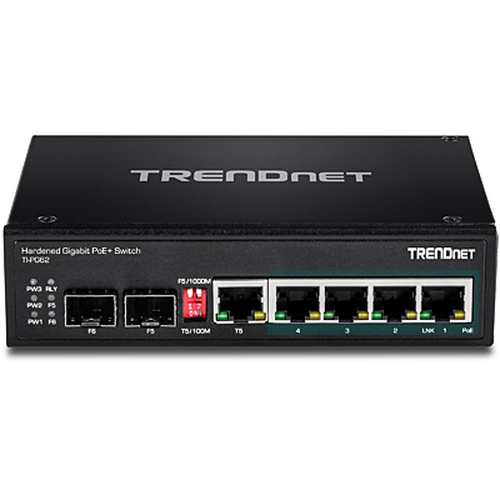

Trendnet TI-PG62 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

TRENDnet’s TI-PG62 is a reliable IP30 unmanaged DIN-rail PoE+ switch with a rugged housing rated for extreme industrial environments. It offers 4 Gigabit PoE+ ports, one shared Gigabit port (RJ-45 / SFP), one dedicated SFP slot, and a 12 Gbps switching capacity. Dual redundant power inputs and a power failure alarm relay.

PoE Power
A 120 Watt PoE+ power budget supplies up to four Power over Ethernet devices with PoE+ power.

Fault Tolerance

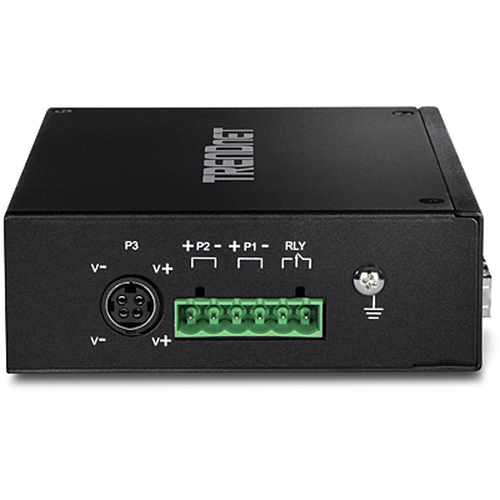

Features dual redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure.

Industrial Hardened Design
Equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate with a wide temperature range (- 40 – 75 °C (- 40 - 167 °F)) for harsh environments.

ON ORDER

SKU: TI-PG62

Manufacturer: Trendnet Trendnet

RRP Price €176.39

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
4
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
1
SFP module slots quantity
1

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
No
Full duplex
Yes
Auto-negotiation
Yes
MAC address auto-learning supported
Yes
MAC address auto-aging supported
Yes

Data transmission

Switching capacity
12 Gbit/s
Throughput
8.9 Mpps
MAC address table
1000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
9000

Design

Rack mounting
No
Product colour
Black
Housing material
Metal
LED indicators
Yes
International Protection (IP) code
IP30
Wall mountable
Yes

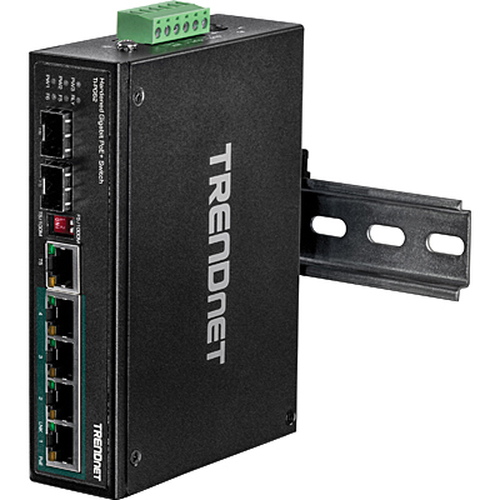

DIN rail mounting
Yes

Performance

Buffer size
1024 KB
Mean time between failures (MTBF)
460304 h

Power

Redundant power supply (RPS) support
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
2 A
Input voltage
48 - 56 V
Output voltage
48 V
Output current
3.34 A
Power consumption (max)
5.76 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
4
Total Power over Ethernet (PoE) budget
120 W

Other features

Terminal block port
Yes

Operational conditions

Operating temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
0 - 95%

Weight & dimensions

Width
143 mm
Depth
105 mm
Height
36 mm
Weight
500 g

Packaging content

Quick start guide
Yes

Packaging data

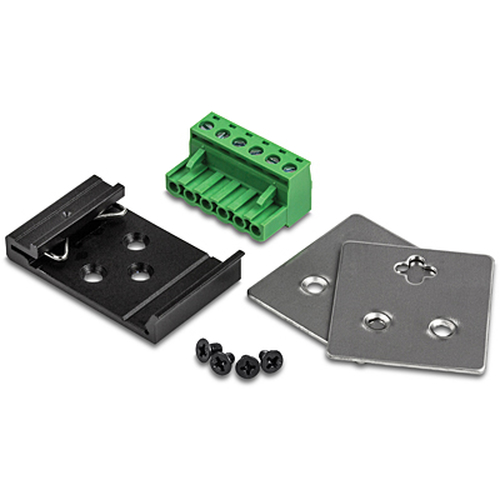

Wall mounting kit
Yes
Terminal block included
Yes

Certificates

Certification
CE, FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6

Logistics data

Harmonized System (HS) code
85176990
