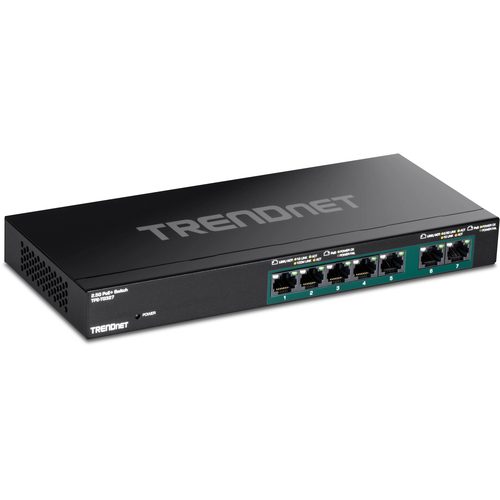

Trendnet TPE-TG327 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

TRENDnet’s 7-Port Multi-Gig PoE+ Switch, model TPE-TG327, is an affordable 2.5G PoE+ switch that provides advanced high-bandwidth performance, ease of use, and reliability. The TPE-TG327 multi-gig switch offers two dedicated 2.5G PoE+ ports and five dedicated 1G PoE+ ports for high-speed network connections with a 20Gbps switching capacity. Having a sturdy compact metal housing and fanless design, the multi-gig PoE+ switch is a cost-effective solution for high-speed network connections. A 70W total PoE power budget on this affordable multi-gig PoE+ switch supplies up to seven PoE+ devices with up to 30W per port.

ON ORDER

SKU: TPE-TG327

Manufacturer: Trendnet Trendnet

RRP Price €81.84

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
5
2.5G Ethernet (copper) ports quantity
2

Network

Networking standards
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
10G support
No

Data transmission

Switching capacity
20 Gbit/s
Forwarding rate
14.88 Mpps
MAC address table
2000 entries
Jumbo frames support
Yes
Jumbo frames
15000

Design

Product colour
Black
LED indicators
Yes
Wall mountable
Yes

Performance

Fanless
Yes
Mean time between failures (MTBF)
830917 h

Power

Power source
AC/DC/PoE
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
DC input voltage
55 V
Power consumption (max)
8 W
Power protection features
Over current, Short circuit

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Total Power over Ethernet (PoE) budget
70 W

Operational conditions

Operating temperature (T-T)
0 - 50 °C

Weight & dimensions

Width
286 mm
Depth
102 mm
Height
27 mm
Weight
900 g

Certificates

Certification
CE FCC

Accessories

License
